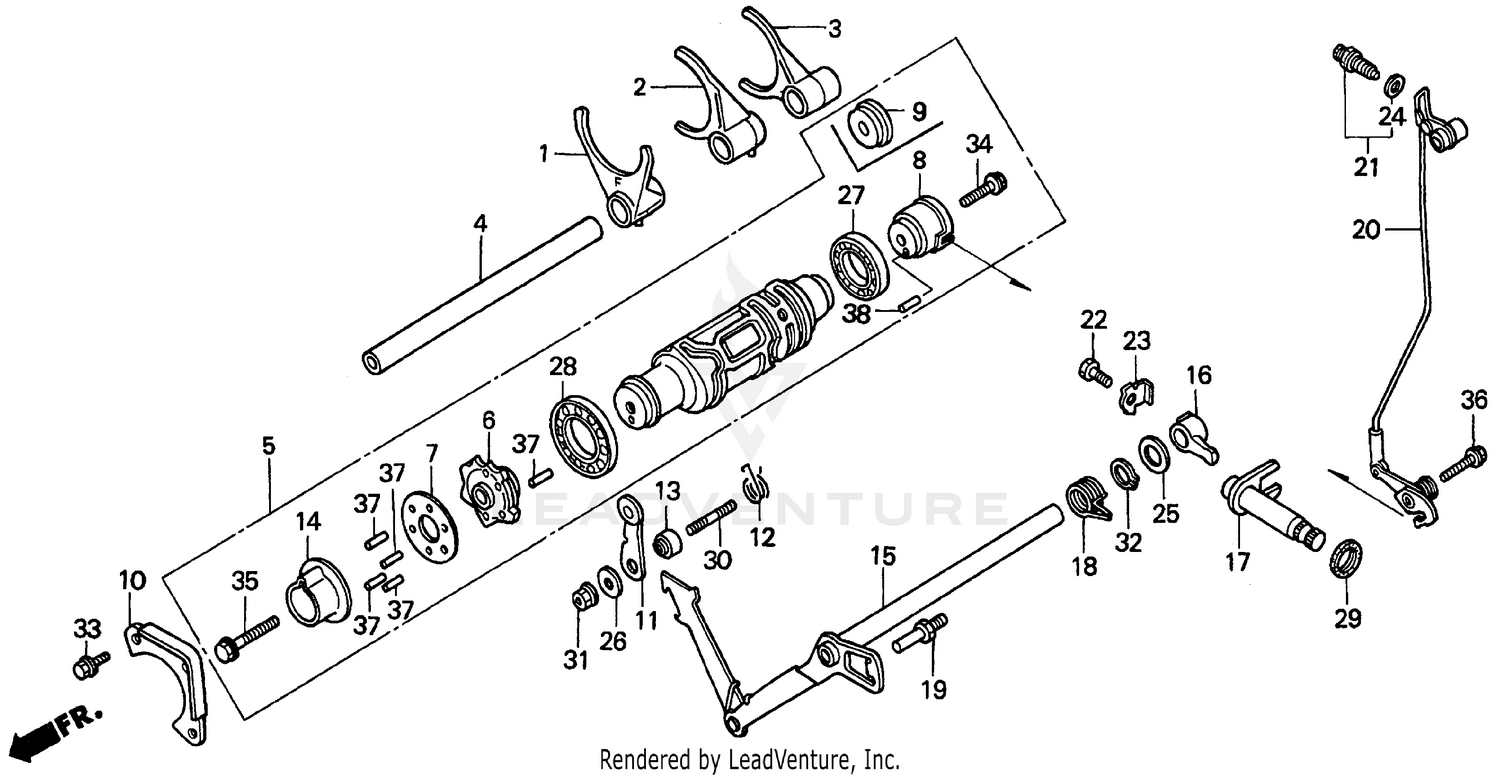

Gearshift Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, FR. GEARSHIFT
24211-MN5-000
|
$80.69 | ||
|
Unavailable |
|||
|
#2
FORK, CENTER GEARSHIFT
24212-MN5-000
|
$83.12 | ||
|
Unavailable |
|||
|
#3
FORK, GEARSHIFT
24213-MN5-000
|
$83.12 | ||
|
Unavailable |
|||
|
#4
SHAFT, SHIFT FORK
24251-MN5-000
Superseded by 24251-MZ0-000
|
$17.36 | ||
|
Unavailable |
|||
|
#4
SHAFT, SHIFT FORK
24251-MZ0-000
|
$17.36 | ||
|
Unavailable |
|||
|
#5
DRUM ASSY., GEARSHIFT
24300-MW5-870
Superseded by 24300-MZ0-000
|
$220.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM ASSY., GEARSHIFT
24300-MZ0-000
|
$220.75 | ||
|
Unavailable |
|||
|
#6
CAM, SHIFT DRUM
24302-MN5-000
|
$40.16 | ||
|
Unavailable |
|||
|
#7
PLATE, GEARSHIFT ARM GUIDE
24303-MN5-000
|
$7.55 | ||
|
Unavailable |
|||
|
#9
COLLAR, DRUM BEARING SETTING
24305-MW5-870
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, DRUM SET
24307-MN5-000
|
$12.16 | ||
|
Unavailable |
|||
|
#11
STOPPER, GEARSHIFT DRUM
24430-MN5-000
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, DRUM STOPPER
24435-MN5-000
|
$3.65 | ||
|
Unavailable |
|||
|
#13
COLLAR, GEARSHIFT DRUM STOPPER
24437-MN5-000
|
$4.60 | ||
|
Unavailable |
|||
|
#14
JOINT, SHIFT DRUM
24443-MN5-000
|
$65.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
ARM, GEARSHIFT
24610-MN5-000
|
$80.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
ARM B, GEARSHIFT
24615-MN5-000
|
$35.72 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPINDLE, GEARSHIFT
24620-MN5-000
|
$42.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, SHIFT RETURN
24651-MN5-000
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, SHIFT RETURN SPRING
24652-028-000
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (8X17)
90009-MN5-000
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, LOCK (8MM)
90406-422-000
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (14.2X28X2)
90487-MN5-000
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (6X2.3)
90488-MB0-000
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (6904) (NTN CORP.)
91007-MN5-003
|
$18.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BEARING, BALL (16005) (NTN CORP.)
91008-374-003
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL (14X28X7) (ARAI)
91206-286-013
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT 2, STUD (6X25)
92900-06025-0B
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
CIRCLIP (OUTER) (14MM)
94510-14000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X22)
95701-06022-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (8X40)
95701-08040-08
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#37
ROLLER (4X14.8)
96220-40148
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
