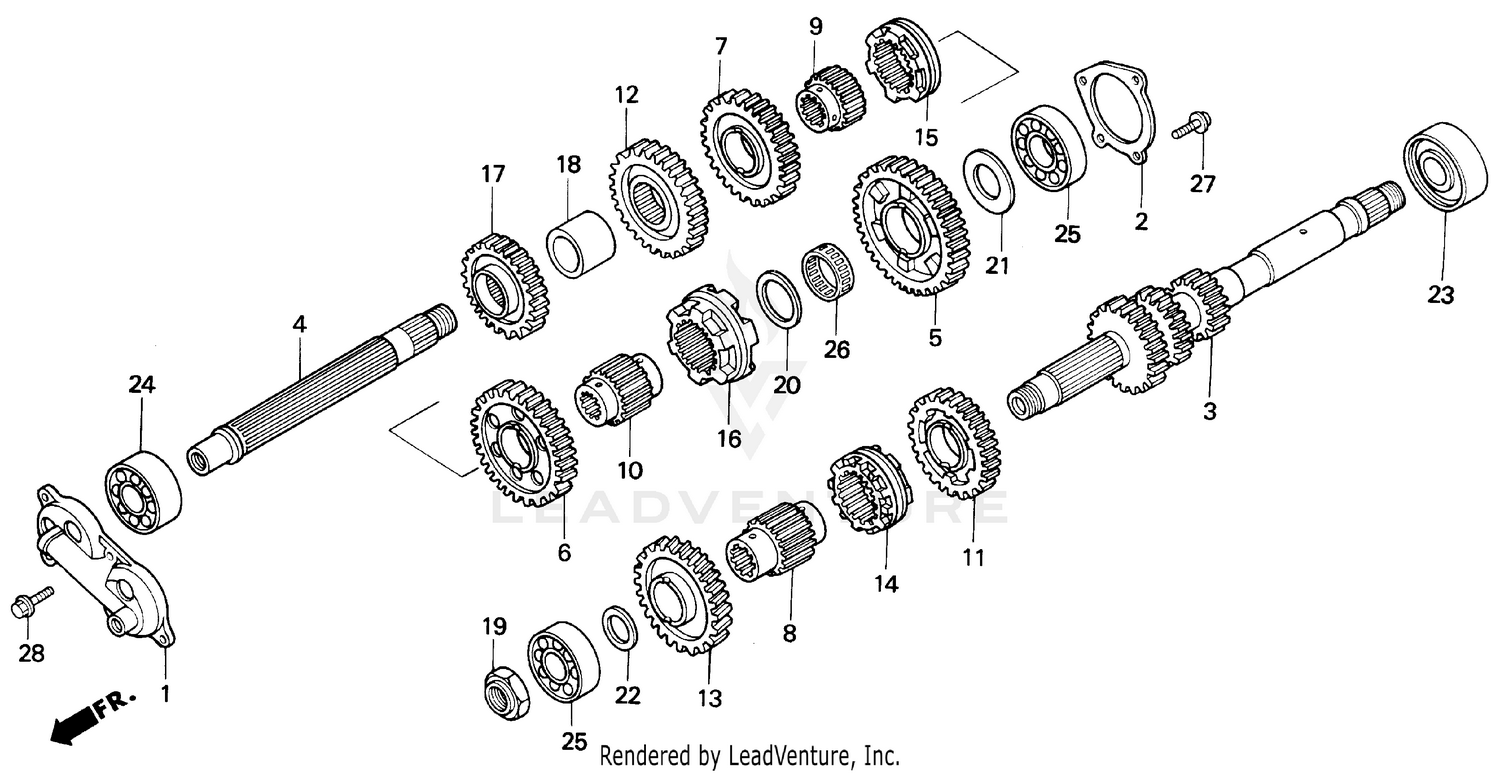

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, TRANSMISSION BEARING
23150-MN5-000
|
$89.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, COUNTERSHAFT BEARING SETTING
23161-MN5-000
|
$14.15 | ||
|
Unavailable |
|||
|
#3
MAINSHAFT (22T/18T/15T)
23210-MN5-000
|
$389.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
COUNTERSHAFT
23220-MN5-000
|
$153.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, COUNTERSHAFT LOW (40T)
23421-MT8-000
|
$149.12 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (31T)
23441-MT8-000
|
$135.47 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT THIRD (28T)
23451-MT8-000
|
$117.54 | ||
|
Unavailable |
|||
|
#8
COLLAR, SPLINE (28X43X69) (24T)
23455-MN5-010
|
$106.97 | ||
|
Unavailable |
|||
|
#9
COLLAR, SPLINE (28X43X34.4)
23456-MT8-000
|
$84.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SPLINE (28X43X59.4) (24T)
23457-MN5-000
|
$103.28 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, MAINSHAFT FOURTH (28T) (NA USE ALT:23010-MAM-305)
23461-MT8-000
|
$84.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT FOURTH (27T)
23471-MT8-000
Superseded by 23471-MZ0-610
|
$100.81 | ||
|
Unavailable |
|||
|
#12
GEAR, COUNTERSHAFT FOURTH (27T)
23471-MZ0-610
|
$100.81 | ||
|
Unavailable |
|||
|
#13
GEAR, MAINSHAFT FIFTH (29T)
23481-MN5-000
|
$117.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIFTER, FR. (NA USE ALT:23010-MAM-305)
23483-MT8-000
|
$53.66 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIFTER, CENTER
23484-MT8-000
|
$67.62 | ||
|
Unavailable |
|||
|
#16
SHIFTER, RR.
23485-MT8-000
|
$74.79 | ||
|
Unavailable |
|||
|
#17
GEAR, COUNTERSHAFT FIFTH (22T)
23491-MAM-A60
|
$100.81 | ||
|
Unavailable |
|||
|
#17
GEAR, COUNTERSHAFT FIFTH (22T)
23491-MT8-000
Superseded by 23491-MAM-A60
|
$100.81 | ||
|
Unavailable |
|||
|
#18
COLLAR (27.8X35X28)
23492-MT8-000
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEX. (22MM)
90201-MN5-000
Superseded by 90201-MZ0-000
|
$13.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, HEX. (22MM)
90201-MZ0-000
|
$13.58 | ||
|
Unavailable |
|||
|
#20
WASHER (35.2X46X1.6)
90467-MN5-000
|
$10.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (25X47X2.6)
90468-MN5-000
|
$10.24 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER (25X40X2.6)
90471-MN5-000
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, BALL (28X54X20.6) (NTN CORP.)
91001-MN5-003
|
$84.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, RADIAL BALL (63/22) (KOYO)
91003-MN5-003
|
$34.01 | ||
|
Unavailable |
|||
|
#25
BEARING, RADIAL BALL (6305) (NTN CORP.)
91006-MN5-003
|
$38.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, NEEDLE (35X40X16) (NTN CORP.)
91014-MN5-003
|
$21.13 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
