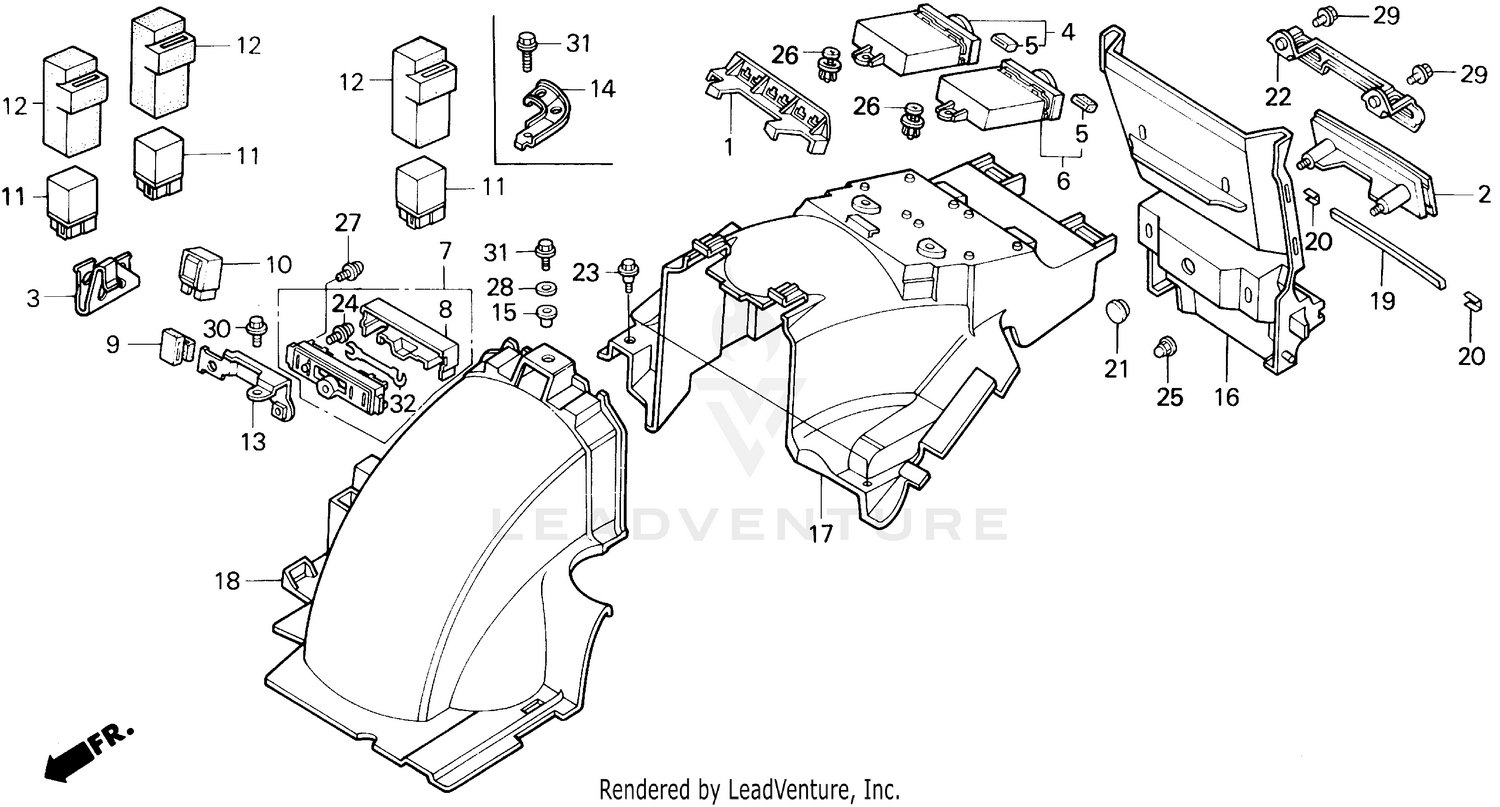

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, CONNECTOR
32010-MN5-000
|
$6.90 | ||
|
Unavailable |
|||
|
#2
REFLECTOR, RR. REFLEX
33742-MT2-004
|
$55.49 | ||
|
Unavailable |
|||
|
#15
COLLAR, FR. FENDER
61105-MA3-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
FENDER A, RR. *R176C* (CANDY SPECTRA RED)
80100-MN5-000ZP
Superseded by 80100-MAM-D40ZB
|
$391.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
FENDER A, RR. *G156P* (PEARL SIERRA GREEN)
80100-MN5-000ZV
|
$314.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
FENDER B, RR.
80101-MW5-870
|
$151.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
FENDER C, RR.
80102-MN5-000
|
$40.24 | ||
|
Unavailable |
|||
|
#19
MOLDING, RR. FENDER
81245-MN5-000
|
$27.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, MOLDING
81247-MN5-000
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET, DRAIN HOLE (25MM)
82871-671-000
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, NUMBER PLATE
84700-MN5-000
|
$11.74 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6MM)
90112-GC6-000
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FLANGE CAP (5MM)
90167-SA0-980
|
$7.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#28
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
