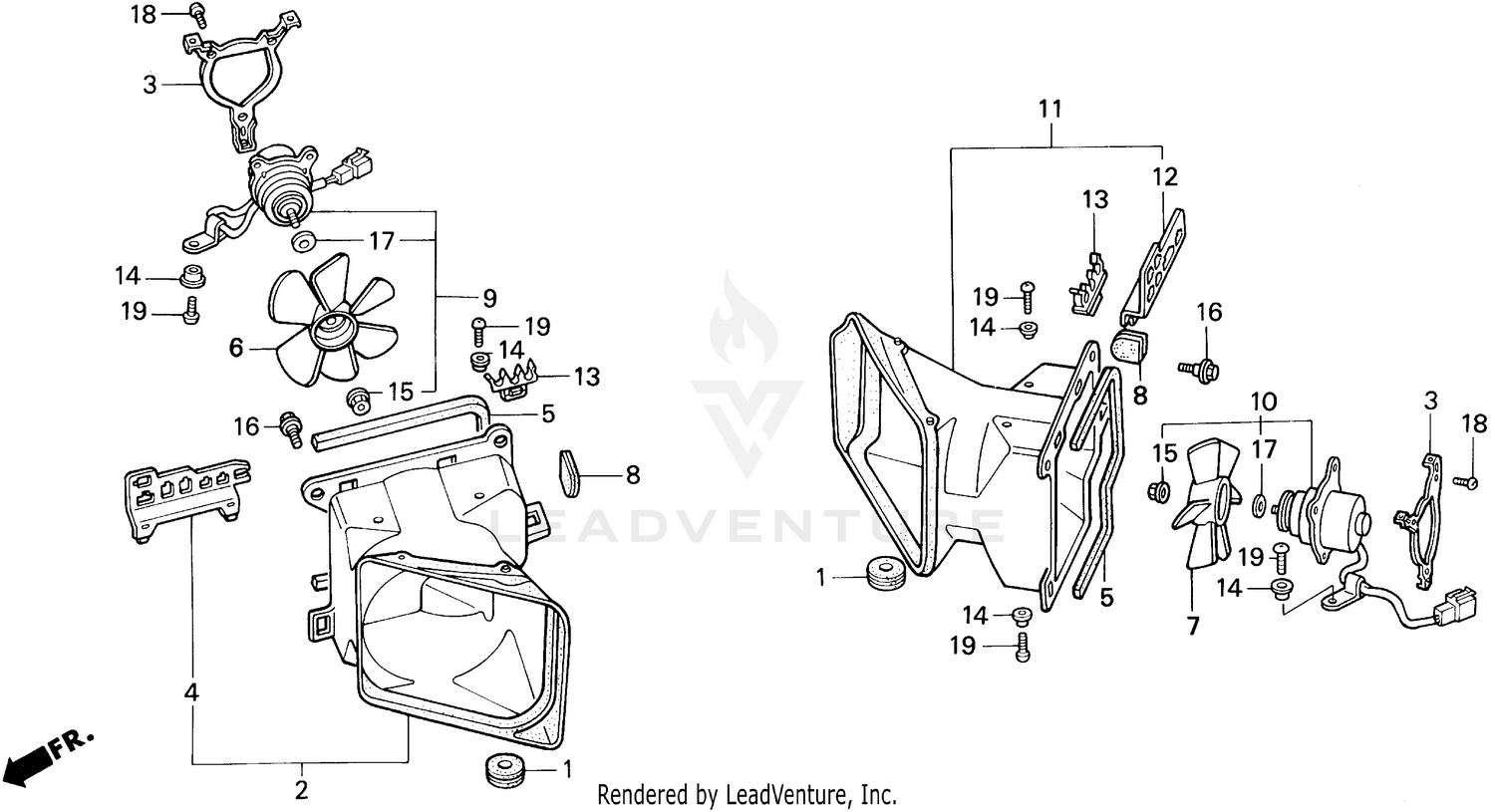

Cooling Fan Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, RADIATOR SETTING
19012-HB9-000
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHROUD ASSY., R.
19020-MT2-000
|
$80.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, FAN MOTOR
19021-MN5-000
|
$17.22 | ||
|
Unavailable |
|||
|
#4
HOLDER, R. SHROUD CONNECTOR
19022-MN5-000
Superseded by 19022-MT8-770
|
$5.21 | ||
|
Unavailable |
|||
|
#4
HOLDER, R. SHROUD CONNECTOR
19022-MT8-770
|
$5.21 | ||
|
Unavailable |
|||
|
#5
SEAL, FAN SHROUD
19023-MN5-300
|
$10.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
FAN, R. COOLING (MITSUBA)
19024-MN5-003
|
$48.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
FAN, L. COOLING (MITSUBA)
19025-MN5-003
|
$48.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET, SHROUD
19027-MN5-000
|
$3.54 | ||
|
Unavailable |
|||
|
#9
MOTOR ASSY., R. FAN
19030-MW5-005
|
$86.92 | ||
|
Unavailable |
|||
|
#10
MOTOR ASSY., L. FAN
19032-MW5-005
|
$86.92 | ||
|
Unavailable |
|||
|
#11
SHROUD ASSY., L.
19070-MT8-770
|
$26.09 | ||
|
Unavailable |
|||
|
#12
HOLDER, L. SHROUD CONNECTOR
19072-MT8-770
|
$5.21 | ||
|
Unavailable |
|||
|
#13
CLAMP B, IGNITION WIRE
32982-MT2-000
|
$4.34 | ||
|
Unavailable |
|||
|
#14
COLLAR, HEADLIGHT SETTING
61304-397-830
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEX. (5MM) (VALEO)
90041-PG6-004
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, RR. FENDER SETTING
90111-KAE-870
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (7MM)
90511-MB6-003
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (4X6)
93500-04006-0G
|
$0.87 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN (5X12)
93500-05012-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
