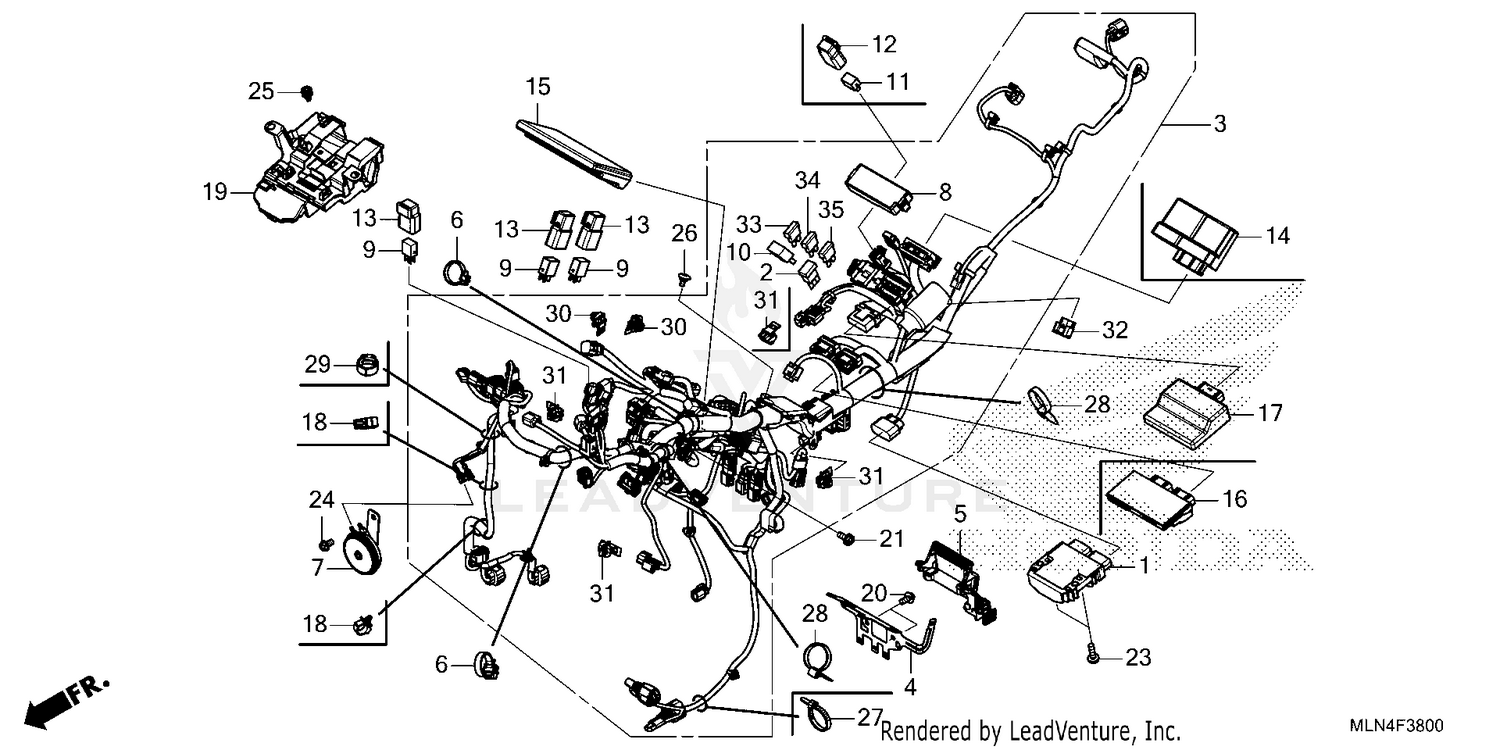

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER ASSY., REGULATOR
31600-MKN-D51
|
$228.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE HARNESS
32100-MLN-AX0
|
$1,532.71 | ||
|
Unavailable |
|||
|
#4
STAY, HARNESS CLIP
32155-MLN-E00
|
$15.13 | ||
|
Unavailable |
|||
|
#5
COVER, CONNECTOR
32159-MJP-G50
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, WIRE HARNESS
32161-GFL-J41
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
HORN ASSY. (HIGH)
38110-MBV-712
|
$97.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER (UPPER)
38255-MKS-E00
|
$15.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
RELAY, POWER (MICRO ISO 4P)
38501-MCS-G01
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY (MICRO ISO 4P)
38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#11
RELAY, POWER (MICRO ISO 4P)
38501-MKR-D11
|
$14.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
SUSPENSION, POWER RELAY
38506-KVS-600
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUSPENSION, POWER RELAY
38506-MCS-G00
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
CONTROL UNIT, SUSP
38651-MLN-EQ1
|
$1,025.78 | ||
|
Unavailable |
|||
|
#15
UNIT COMP
38770-MLN-LX2
Superseded by 38770-MLN-LX3
|
$2,035.87 | ||
|
Unavailable |
|||
|
#15
UNIT COMP
38770-MLN-LX3
|
$2,035.87 | ||
|
Unavailable |
|||
|
#16
PGM-DCT UNIT
38780-MLN-LX2
|
$612.53 | ||
|
Unavailable |
|||
|
#17
CONTROL UNIT, BODY
38950-MKS-A02
|
$445.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, RETURN HOSE
53781-SE0-952
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
TRAY, BODY CONTROL UNIT
80109-MKS-E00
|
$30.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X12)
90025-GHB-620
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X14)
90030-GHB-630
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X22)
90030-GHB-670
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X14)
90036-GHB-630
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, BUMPER SEAL
90116-K2P-V61
|
$1.84 | ||
|
Unavailable |
|||
|
#26
SCREW, SPECIAL (5X11)
90122-MJK-N20
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, WIRE HARNESS
90683-KJ2-003
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP, CONNECTOR (BLACK) (Honda Code 7386865)
91565-SEL-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#32
CAP, DUMMY (6P) (RED)
91771-MKK-H11
|
$25.67 | ||
|
Available to order. Add to View Price |
|||
|
#33
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#34
FUSE, MINI (15A) (Honda Code 4853438)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
|
#35
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
