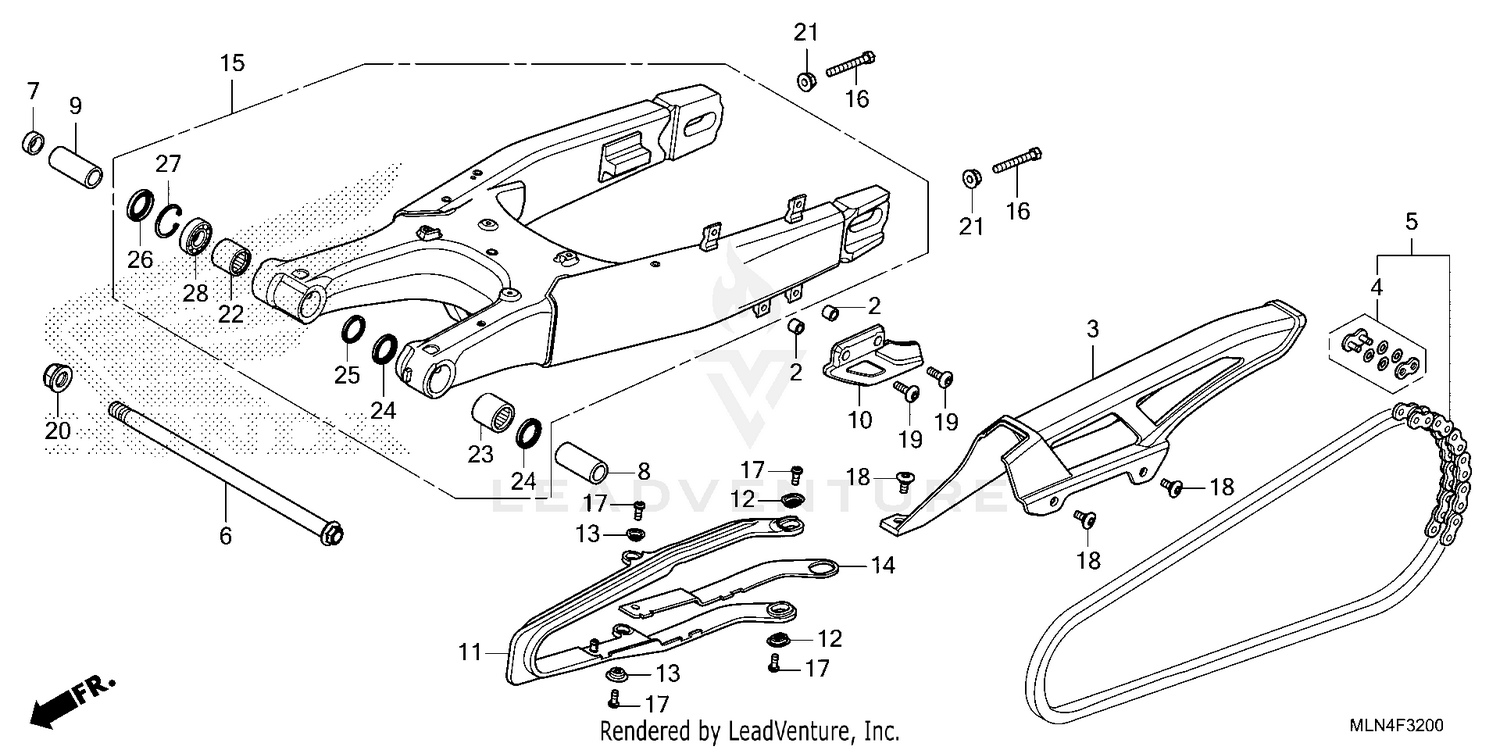

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
COLLAR, CHAIN GUARD
52161-MLC-D00
|
$2.29 | ||
|
Unavailable |
|||
|
#3
CASE, DRIVE CHAIN
40510-MKS-E00
|
$103.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER LINK (DAIDO)
40535-MKR-D11
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN, DRIVE
40540-MLN-E01
|
$217.25 | ||
|
Unavailable |
|||
|
#6
BOLT, SWINGARM PIVOT
52101-MKS-E00
|
$61.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR A, PIVOT
52141-MKS-E00
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, L. PIVOT DISTANCE
52142-MKS-E00
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, R. PIVOT DISTANCE
52143-MKS-E00
|
$19.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUARD, CHAIN
52160-MKS-E00
|
$22.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
SLIDER, CHAIN
52170-MKS-E00
|
$73.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, CHAIN SLIDER
52171-MAN-620
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, CHAIN SLIDER
52171-MKS-E00
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
SWINGARM SUB-ASSY., RR. (TYPE2)
52200-MKS-E00ZA
|
$1,707.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (8X50)
90106-MCF-D00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (5X12)
90107-MJP-G50
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, SPECIAL (6X14)
90118-MJK-N20
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SPECIAL (6X20)
90119-MKS-E00
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SPECIAL U (16MM)
90305-MBZ-C50
Superseded by 90305-MCB-610
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SPECIAL U (16MM)
90305-MCB-610
|
$9.62 | ||
|
Unavailable |
|||
|
#21
NUT, HEX. (10MM)
90309-357-000
|
$4.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BEARING, NEEDLE (24X31X28) (NOT AVAILABLE)
91063-MZ1-003
|
$28.82 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, NEEDLE (NTN)
91071-MT7-003
|
$27.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (25X33X4)
91202-MAL-601
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL (24X31X3.5) (NOT AVAILABLE)
91203-GC8-003
|
$10.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (23X35X5)
91214-MAL-601
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP (INNER) (35MM)
94520-35000
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (6003)
96100-60030-10
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
