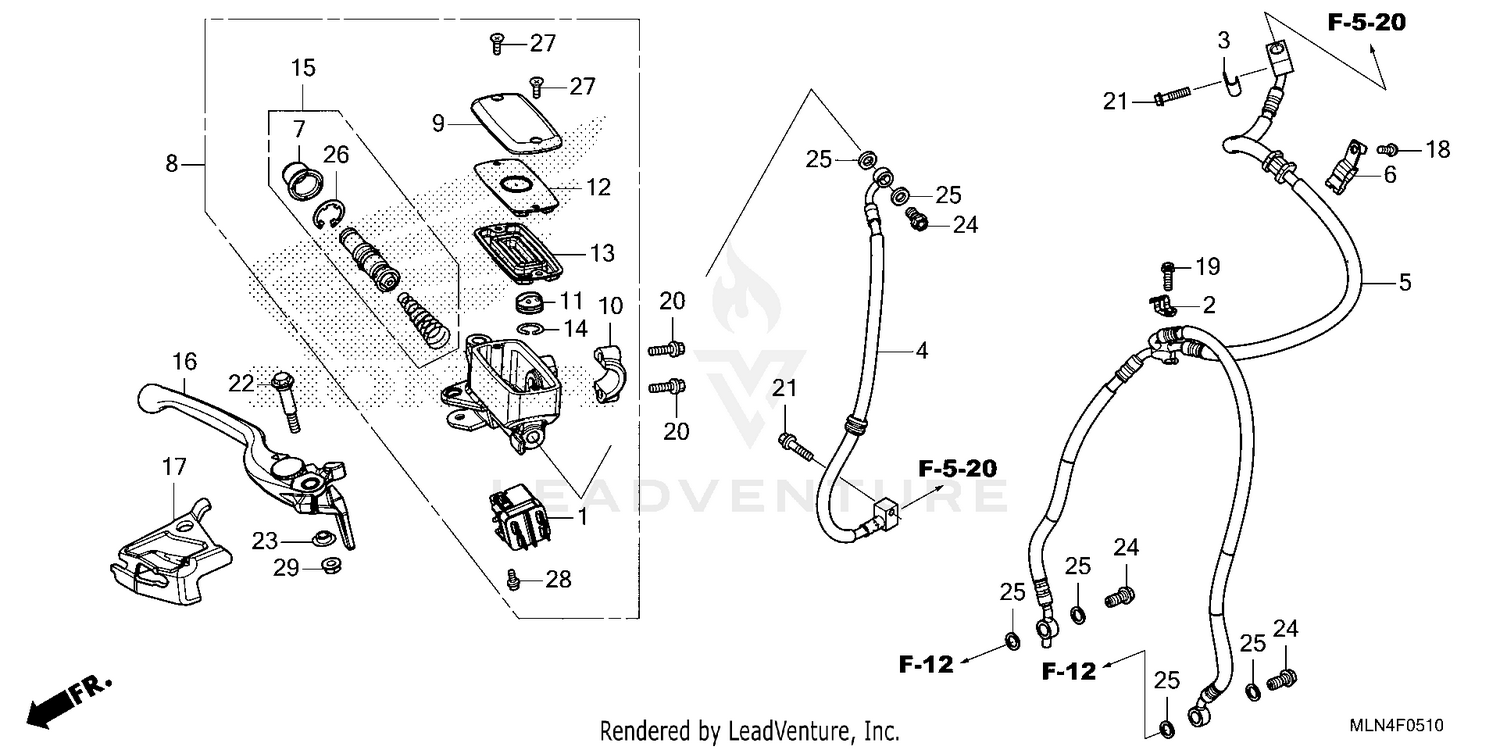

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP & CRUISE
35340-MKS-E01
|
$66.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, SENSOR WIRE
38514-MKK-D00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, SENSOR WIRE
38515-K94-T10
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE A, FR. BRAKE
45125-MKK-D21
|
$62.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE D, FR. BRAKE
45128-MLN-EQ1
|
$114.40 | ||
|
Unavailable |
|||
|
#6
CLAMP, FR. BRAKE HOSE
45156-MKS-E00
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
MASTER CYLINDER SUB-ASSY., FR.
45510-MKS-E01
|
$345.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, MASTER CYLINDER (NISSIN)
45513-MM5-016
|
$27.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, MASTER CYLINDER
45517-166-006
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEPARATOR
45518-MEN-J01
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, DIAPHRAGM (NISSIN)
45518-MM5-006
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM (NISSIN)
45520-MM5-006
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING
45523-KA3-731
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON SET, FR. MASTER CYLINDER
45530-MCA-006
|
$21.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER ASSY., R. HANDLE
53170-MKS-E01
|
$62.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, R. KNUCKLE
53191-MKS-E00
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X14)
90021-GHB-630
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X18)
90021-GHB-650
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X22)
90021-GHB-670
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X25)
90021-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HANDLE LEVER
90114-MGH-641
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR (6X4)
90127-KF0-770
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#28
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#29
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
