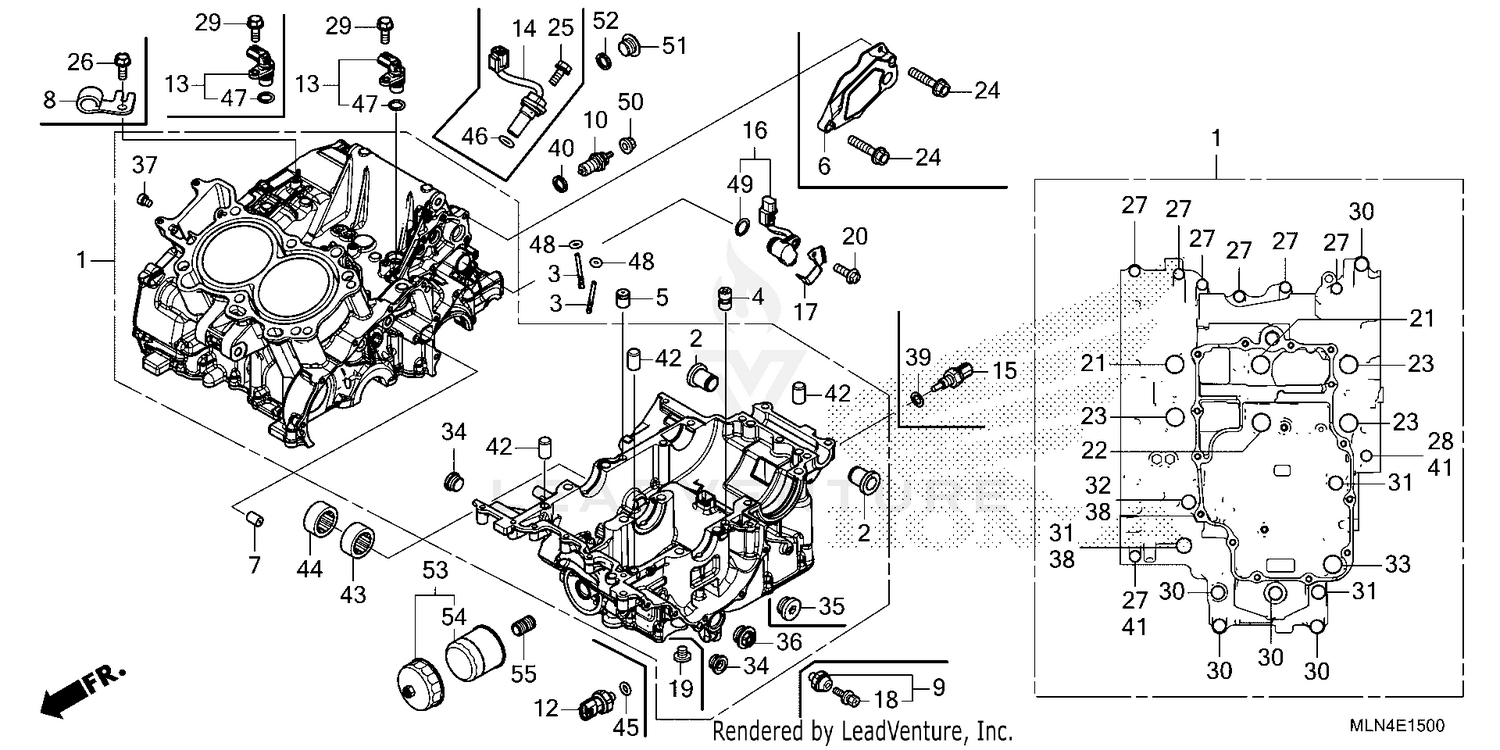

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11000-MLA-A50
|
$2,942.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, ENGINE HANGER
11104-MJP-G50
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, OIL
11140-MLN-E00
|
$22.87 | ||
|
Unavailable |
|||
|
#4
ORIFICE
11206-MJP-G50
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
ORIFICE (1.2MM)
11207-MKS-E00
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
ORIFICE (0.8MM)
15516-MGS-D30
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., NEUTRAL
35600-MK4-860
|
$22.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR (0.75MPA)
37260-MLN-E61
|
$64.56 | ||
|
Unavailable |
|||
|
#13
SENSOR ASSY., SPEED (TDK-EPC)
37700-MJE-D01
|
$29.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR ASSY., SPEED
37710-MJP-G81
|
$150.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)
37750-KPH-701
|
$61.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
SENSOR ASSY., ANGLE (350DEGREE)
38800-MJP-G81
|
$214.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, ANGLE SENSOR
38805-MJP-G80
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SOCKET (10MM)
90005-MJP-G80
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, KNOCK (6MM)
90011-MGE-D00
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (10X110)
90015-MJP-G50
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (10X130)
90015-MKS-E00
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (10X145)
90016-MJP-G50
|
$11.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X14)
90030-GHB-630
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X35)
90030-GHB-720
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X60)
90030-GHB-780
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X16)
90031-GHB-640
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (8X40)
90035-GHB-740
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (8X55)
90035-GHB-770
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X95)
90035-GHB-850
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (10X75)
90040-GHB-810
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, SEALING (18MM)
90046-MKK-D00
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, SEALING (22MM)
90047-MJP-G80
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, SEALING (8MM)
90119-SD9-000
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, SEALING (8MM)
90442-028-000
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SEALING (10.2MM)
90443-MB0-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, NEUTRAL
90443-MJ6-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SEALING (6MM)
90488-425-000
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIN, DOWEL (10X16) (Honda Code 3906971)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING, NEEDLE (12X16X10)
91021-MKS-E01
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING, SEAL NEEDLE (12X18X14)
91022-MKS-E01
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#45
O-RING (13X1.5)
91301-MEH-003
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
O-RING (18.1X3.6)
91302-MAL-601
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#47
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#48
O-RING (3.2X1.1)
91305-MCJ-751
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#49
O-RING (16.5X2.5)
91310-MGE-D01
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
NUT, FLANGE (4MM)
94050-04000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#53
FILTER SET, OIL
15010-MKR-305
|
$23.88 | ||
|
Available to order. Add to View Price |
|||
|
#54
FILTER, OIL (WAKO FILTER)
15410-MFJ-D02
|
$18.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
BOSS, OIL FILTER (Honda Code 1243435)
90019-MB0-000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
