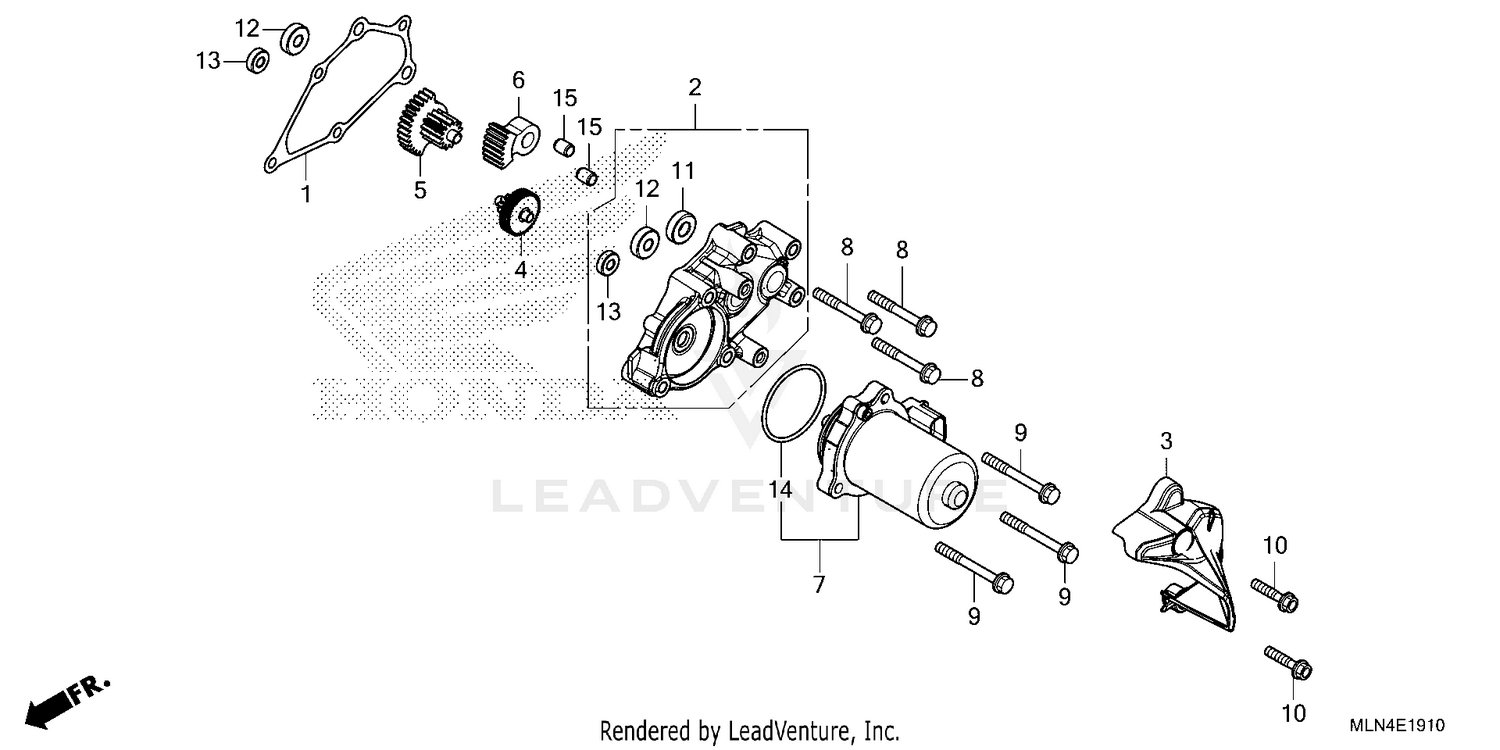

Reduction Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, REDUCTION COVER
11397-MJP-G81
|
$12.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, REDUCTION GEAR
11520-MLA-A50
|
$125.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, RATIO CONTROL MOTOR
11530-MJP-G80
|
$35.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, SHIFT REDUCTION (45T/7T)
24615-MGE-D01
|
$77.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, SHIFT REDUCTION (32T/13T)
24616-MGS-D21
|
$75.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, SHIFT REDUCTION (42T)
24617-MGE-D01
|
$62.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOTOR, RATIO CONTROL
31300-MJP-G82
|
$342.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, SPL (6X45)
90024-MLG-E00
|
$2.11 | ||
|
Unavailable |
|||
|
#9
BOLT, SPL (6X53)
90025-MLG-E00
|
$2.11 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (6X25)
90026-GHB-680
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, RADIAL BALL (699ZZ)
91025-MGS-D21
|
$12.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, RADIAL BALL (607ZZ)
91026-MGS-D21
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (696ZZ)
91027-MGS-D21
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING, CONTROL MOTOR
91301-MJP-G81
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
