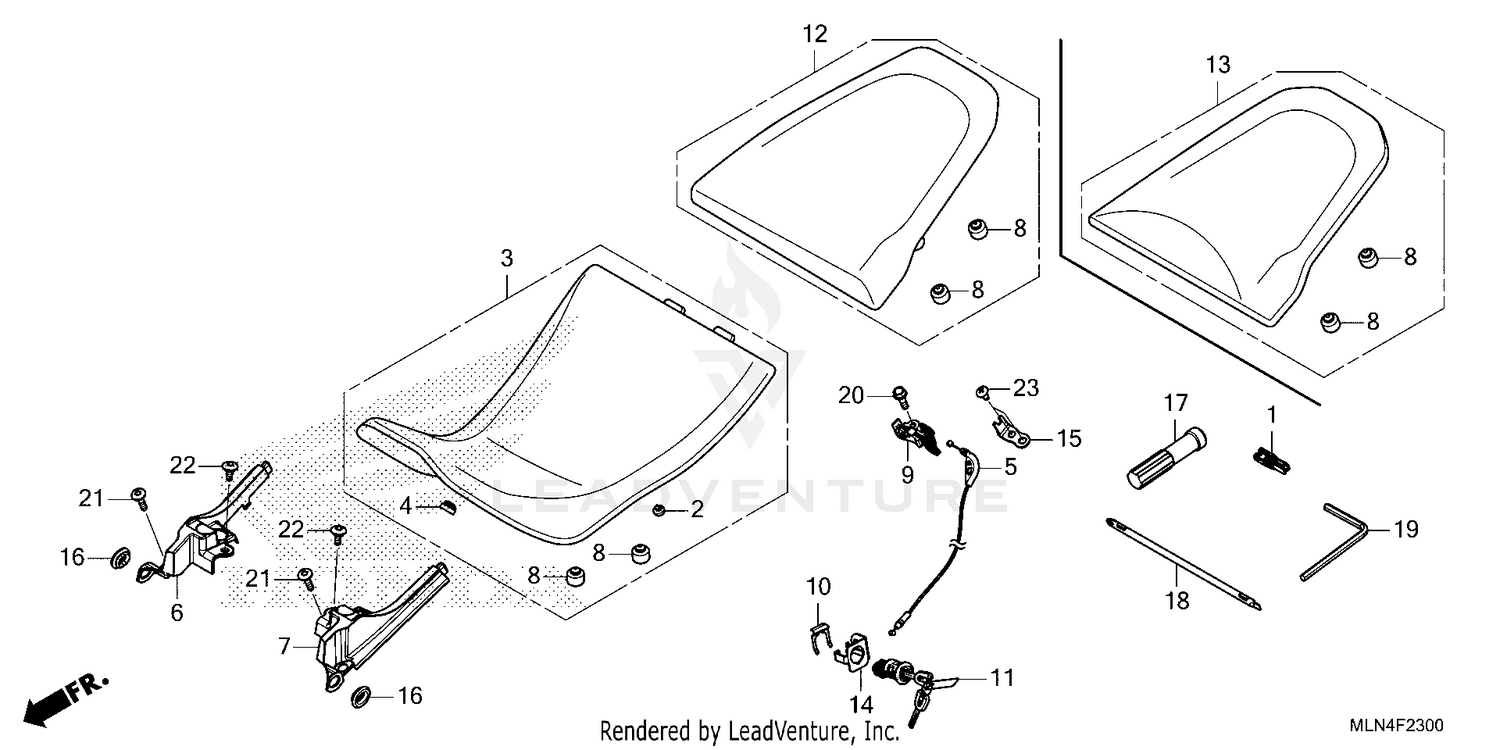

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PULLER, MINI FUSE (SUMITOMO)
38235-S04-003
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, LINK STOPPER
50352-GS6-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAT, MAIN (TYPE2)
77100-MLN-EQ1ZA
|
$215.16 | ||
|
Unavailable |
|||
|
#4
RUBBER, SEAT MOUNTING
77110-KA3-730
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE, SEAT LOCK
77156-MKS-E01
|
$19.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, R. SEAT (LOWER)
77160-MKS-E00
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, L. SEAT (LOWER)
77165-MKS-E00
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, SEAT SETTING
77206-GF0-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOOK, SEAT CATCH
77220-MKS-E01
|
$39.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, LOCK KEY SETTING
77235-MJE-D00
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY, SEAT LOCK
77239-MJE-D04
|
$163.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAT (TYPE2)
77300-MLN-EQ1ZA
|
$213.96 | ||
|
Unavailable |
|||
|
#14
STAY, SEAT LOCK CABLE
77321-MKS-E00
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, SEAT LOCK CABLE B
77322-MKS-E00
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET, AIR CLEANER HOUSING
83551-GE2-000
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
GRIP
89103-K1W-V10
|
$1.05 | ||
|
Unavailable |
|||
|
#18
SCREWDRIVER (NO.2 PHILLIPS -)
89217-MAT-000
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
WRENCH, HEX. (5MM)
89221-MGZ-J00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X20)
90030-GHB-660
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (5X20)
90103-MGH-H20
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, SPECIAL (5X11)
90122-MJK-N20
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TAPPING (4X10)
93903-24280
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
