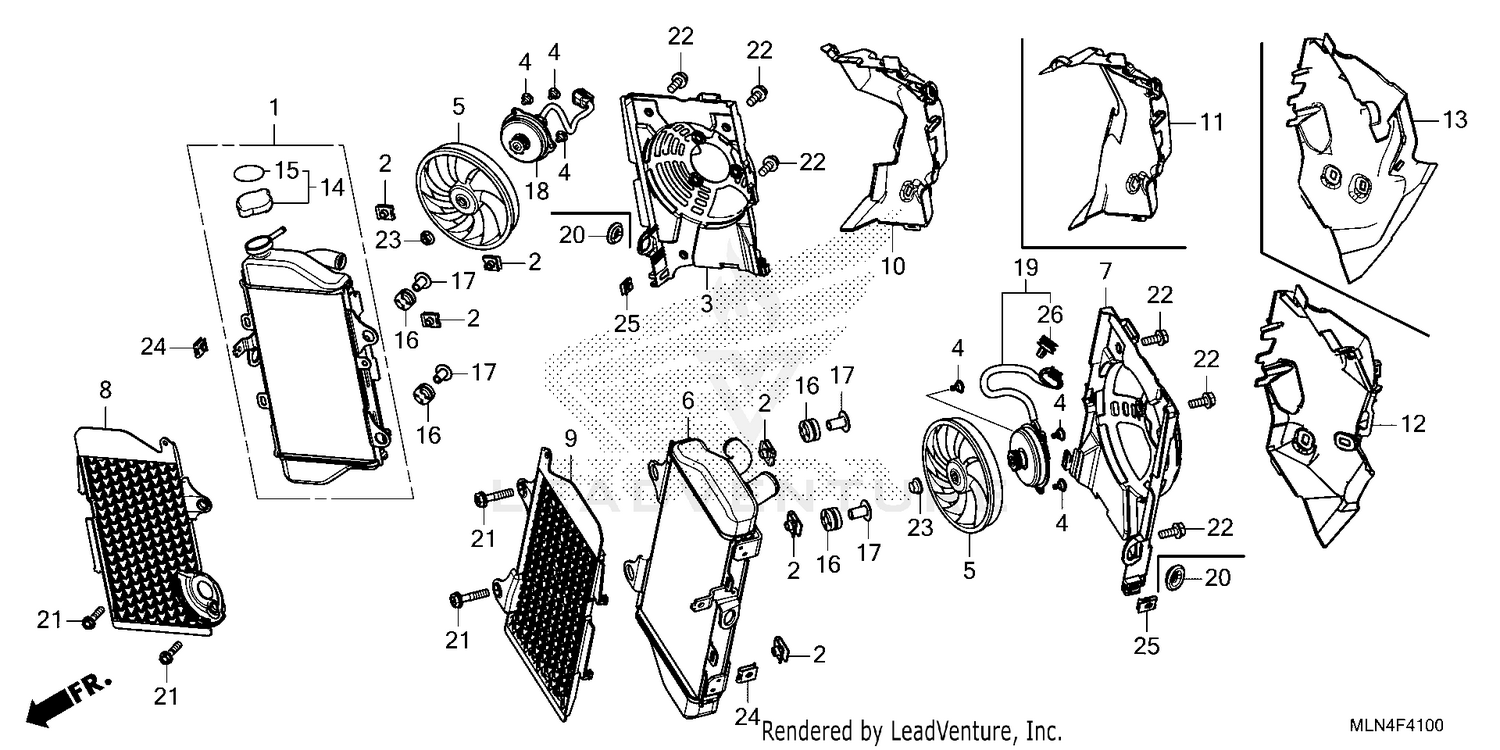

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR, R.
19010-MKS-A01
|
$750.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT, SETTING (6MM)
19014-KEA-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHROUD, R. FAN
19015-MKS-E01
|
$77.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN (4X8.5)
19016-KEA-003
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
FAN, COOLING (TOYO)
19020-MGS-D31
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
RADIATOR, L.
19020-MKS-E01
|
$658.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHROUD, L. FAN
19025-MKS-E01
|
$77.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRILL, R. RADIATOR
19031-MKS-E00
|
$47.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRILL, L. RADIATOR
19032-MKS-E00
|
$47.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHROUD, R. RADIATOR
19035-MKS-E20
|
$27.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHROUD, L. RADIATOR
19036-MKS-E20
|
$27.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, RADIATOR
19037-GEE-710
|
$36.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
LABEL, RADIATOR CAP
19046-PAA-A00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, RADIATOR MOUNTING
19052-MFG-D00
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
MOTOR ASSY., R. FAN (NOT AVAILABLE)
19080-MLG-H31
|
$168.27 | ||
|
Unavailable |
|||
|
#19
MOTOR ASSY., L. FAN (NOT AVAILABLE)
19090-MLG-H31
|
$168.27 | ||
|
Unavailable |
|||
|
#20
GROMMET, AIR CLEANER HOUSING
83551-GE2-000
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X28)
90030-GHB-690
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT-WASHER (6X16)
90120-KCR-003
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE (3MM)
90315-MFL-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SPRING (5MM)
90320-GC3-000
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, CLIP (5MM)
90677-KAN-961
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
