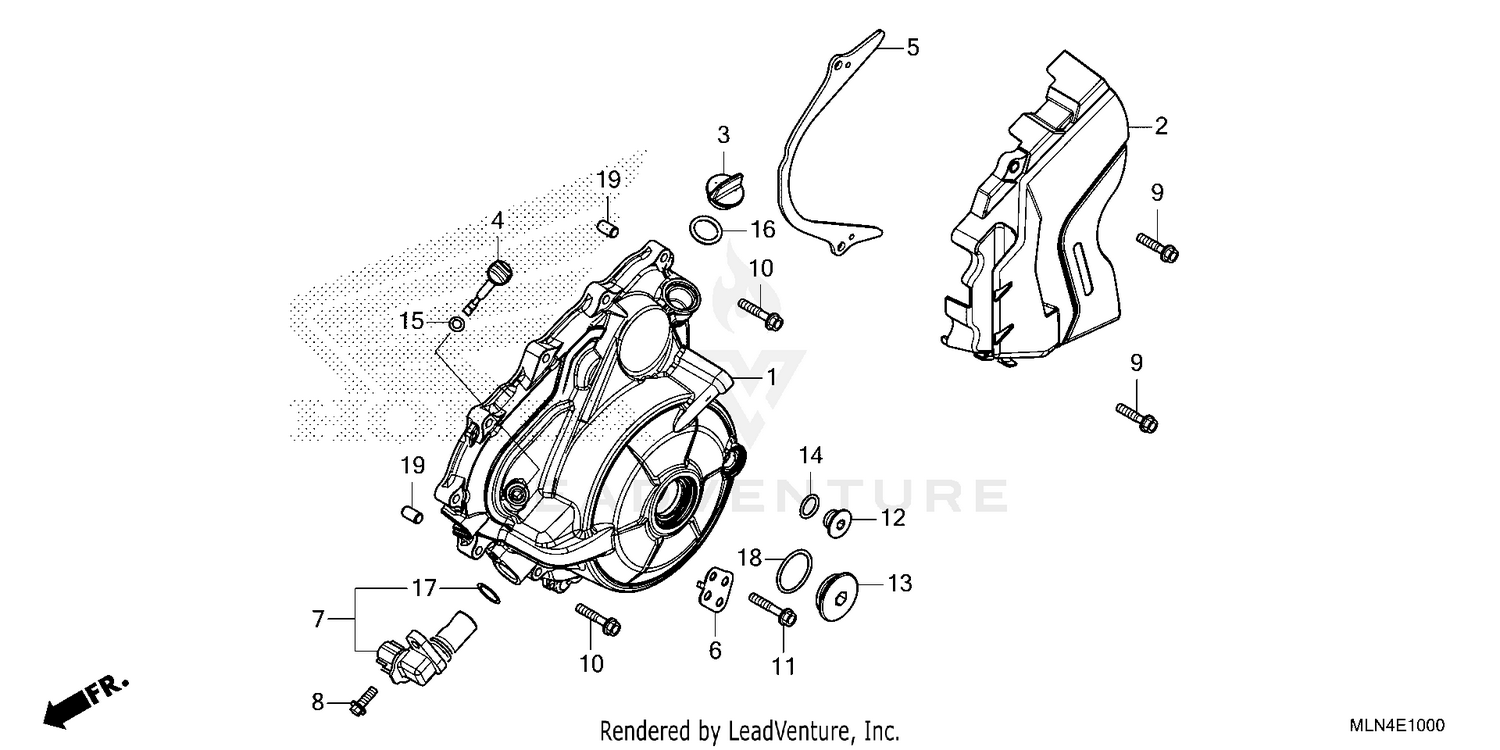

Generator Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, ALTERNATOR
11320-MKS-E00
|
$235.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, L. RR.
11350-MJP-G50
|
$64.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, OIL FILLER
15611-KA4-710
|
$17.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
DIPSTICK, OIL
15650-MJP-G81
|
$18.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, DRIVE CHAIN
23812-MJP-G50
|
$14.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, HARNESS CLIP
32158-MJM-D00
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
SENSOR ASSY., CRANK
37500-MKT-D02
|
$61.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X18)
90026-GHB-650
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X25)
90026-GHB-680
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X28)
90026-GHB-690
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X40)
90026-GHB-740
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP (14MM)
90084-MN8-010
|
$15.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP (30MM)
90087-MJP-G50
|
$19.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING (6.5X2.2) (ARAI)
91303-MJ0-003
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (18X3)
91307-035-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
O-RING
91333-PNC-006
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (29.7X2.4) (NOK)
91356-425-005
|
$3.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
