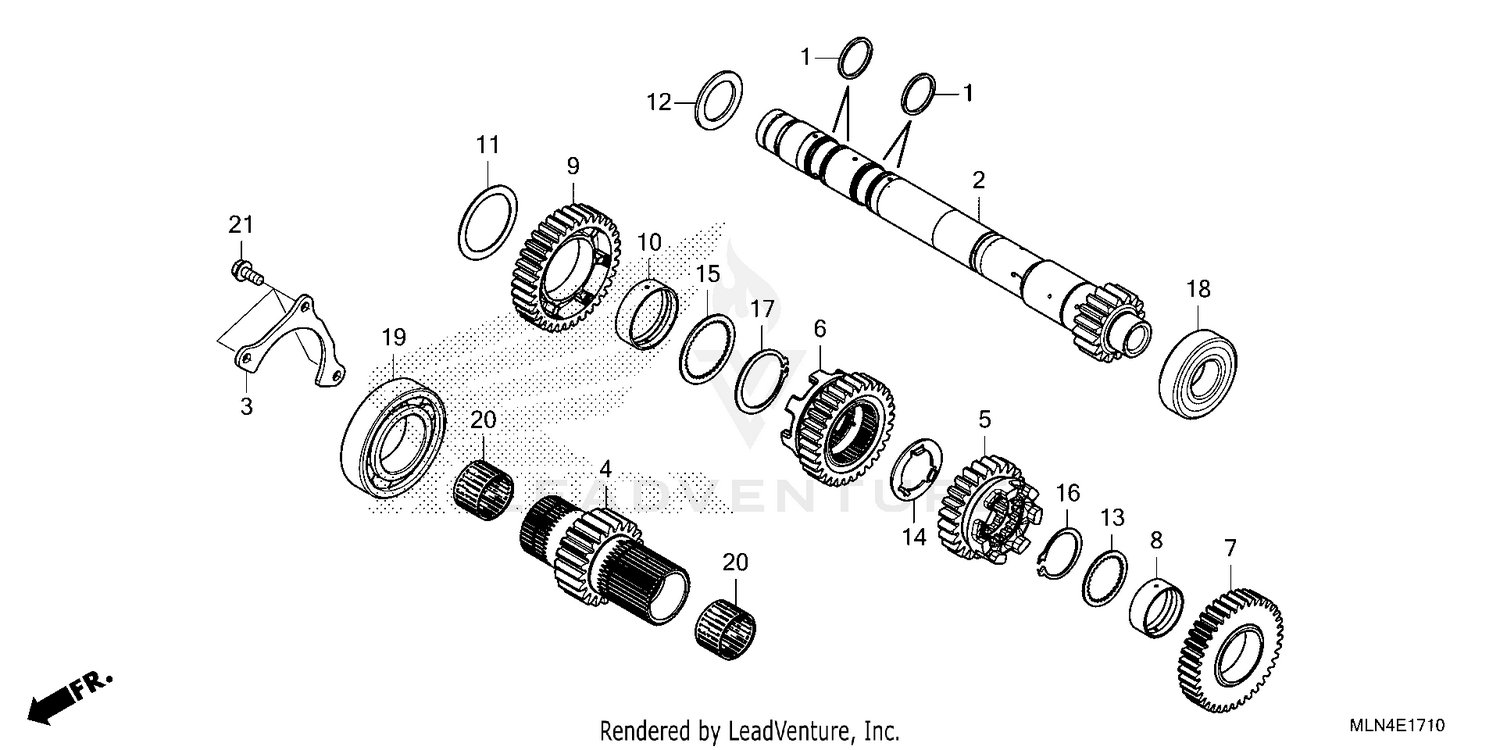

Transmission (mainshaft) (crf1100d/d4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING, SEAL (28MM)
22815-MGE-D01
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
MAINSHAFT (INNER)
23210-MLN-E60
|
$266.93 | ||
|
Unavailable |
|||
|
#3
PLATE, BEARING SETTING
23213-HL4-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
MAINSHAFT (OUTER)
23231-MLN-E60
|
$216.09 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT THIRD (24T)
23451-MKS-E50
|
$135.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, MAINSHAFT FOURTH (30T)
23471-MKS-E50
|
$147.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR (37T)
23491-MLN-E60
|
$109.87 | ||
|
Unavailable |
|||
|
#8
COLLAR (32X35X13.5)
23492-HL4-000
|
$18.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, MAINSHAFT SIXTH (34T)
23511-MKS-E50
|
$131.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR (40X43X12.5)
23512-MGE-D00
|
$16.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
90403-MK2-300
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (32MM)
90445-KE5-000
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPLINE (32X17X1.667)
90452-MCA-000
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPECIAL (28X42X2)
90463-HL4-000
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPLINE (40MM)
90493-MGE-D00
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP (32MM)
90604-MCA-780
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP (40MM)
90605-MGE-D00
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (25X56X15)
91003-MJP-G81
|
$54.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, RADIAL BALL (40X76X18)
91023-HL4-003
|
$58.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (28X32X21)
91024-HL4-003
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
