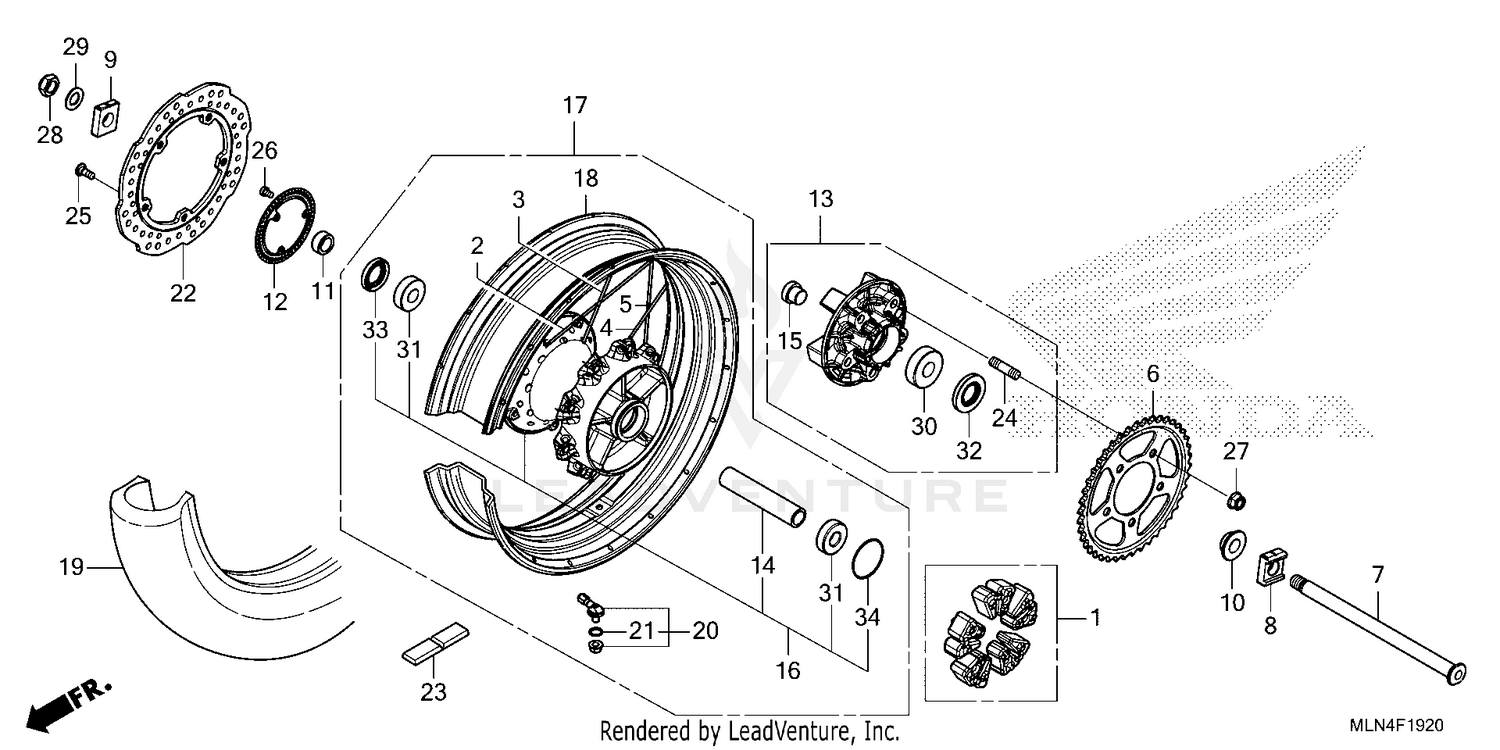

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER SET, WHEEL
06410-MBB-000
|
$52.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET A, RR. (R. OUTSIDE)
06420-MKS-E20
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPOKE SET B, RR. (R. INSIDE)
06421-MKS-E20
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPOKE SET C, RR. (L. OUTSIDE)
06422-MKS-E20
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPOKE SET D, RR. (L. INSIDE)
06423-MKS-E20
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPROCKET (42T)
41201-MLN-EC0
|
$78.98 | ||
|
Unavailable |
|||
|
#7
AXLE, RR. WHEEL
42301-MKS-E00
|
$57.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, L. RR. AXLE
42305-MKS-E00
|
$34.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, R. RR. AXLE
42306-MKS-E00
|
$29.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, L. RR. WHEEL SIDE
42311-MGS-D10
|
$24.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, RR. BRAKE SIDE
42312-MGS-D10
|
$18.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, RR. PULSER
42515-MKS-E20
|
$50.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLANGE SUB-ASSY.
42615-MLN-EC0
|
$194.67 | ||
|
Unavailable |
|||
|
#14
COLLAR, RR. AXLE DISTANCE
42620-MKS-E20
|
$37.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR B, RR. WHEEL DISTANCE
42625-MJP-G50
|
$18.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
HUB SUB-ASSY., RR.
42635-MKS-E20
|
$739.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
WHEEL SUB-ASSY., RR.
42650-MLN-ES0
|
$1,164.15 | ||
|
Unavailable |
|||
|
#18
RIM, RR. WHEEL
42701-MKS-E22
|
$486.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
TIRE, RR.
42711-MLN-EQ1
|
$200.12 | ||
|
Unavailable |
|||
|
#20
VALVE ASSY., CLAMP IN
42755-MKA-D81
|
$20.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
42758-MKA-D81
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
DISK, RR. BRAKE
43251-MKS-E21
|
$353.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
WEIGHT (10G)
44721-MLN-ES1
|
$3.05 | ||
|
Unavailable |
|||
|
#23
WEIGHT (15G)
44722-MLN-ES1
|
$3.69 | ||
|
Unavailable |
|||
|
#23
WEIGHT (20G)
44723-MLN-ES1
|
$3.69 | ||
|
Unavailable |
|||
|
#24
BOLT 2, STUD (12X25)
90102-MAS-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, DISK (8X20)
90106-MGE-000
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, TORX (5X8)
90131-MGE-000
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE (12MM) (FUSE RASHI)
90306-KF0-003
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, U (18MM)
90306-MCS-G01
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER (18X32X2)
90401-KZ4-890
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (63/22)
91051-MAS-003
|
$48.51 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, RADIAL BALL (6204UU)
91053-MGS-D31
|
$15.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
DUST SEAL (30X56X7.5)
91252-MAS-003
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#33
DUST SEAL (30X47X8) (NOK)
91253-443-761
Superseded by 91253-443-762
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#33
DUST SEAL (30X47X8) (NOK)
91253-443-762
|
$14.69 | ||
|
Unavailable |
|||
|
#34
O-RING (55X2)
91351-MGS-D30
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
