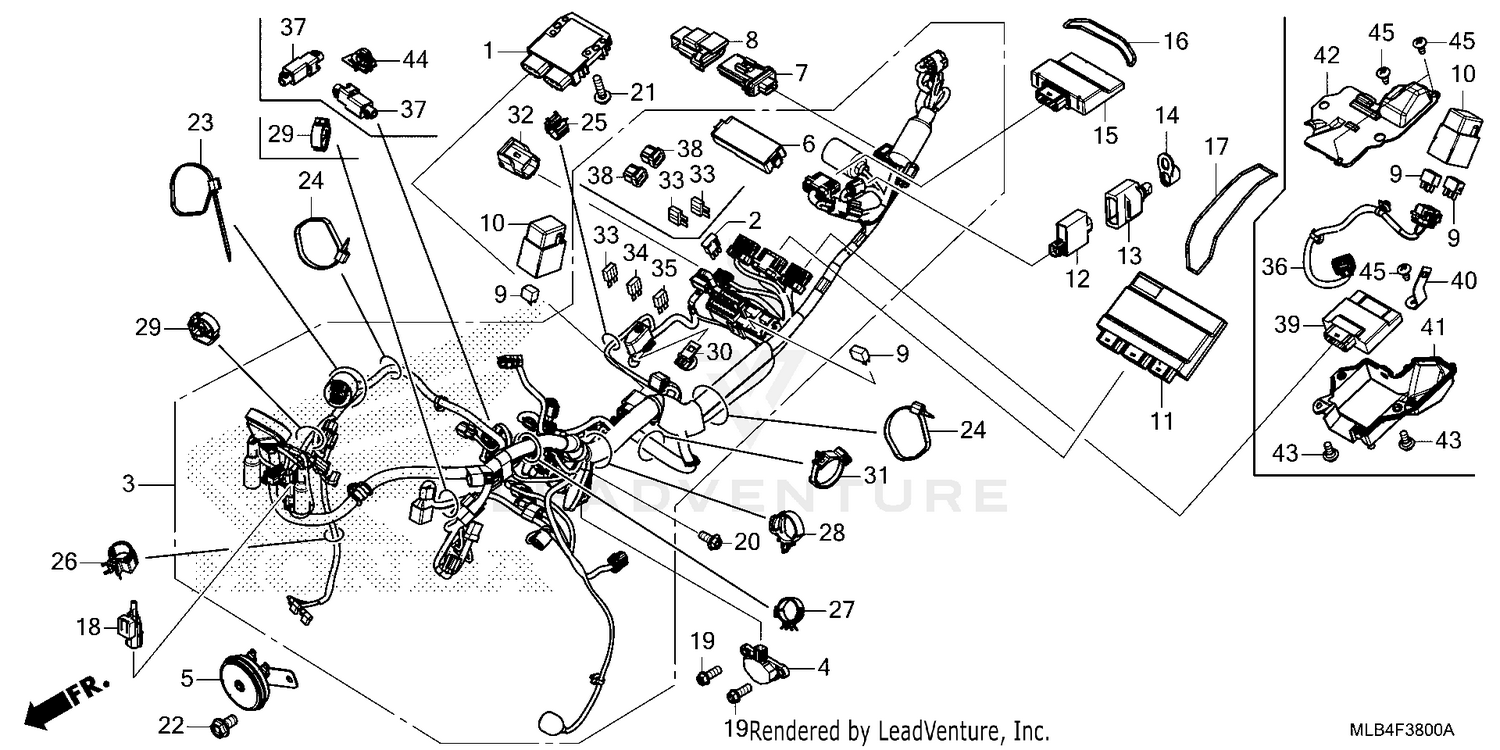

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER ASSY., REGULATOR
31600-MKN-D51
|
$228.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE HARNESS
32100-MLB-A20
|
$1,038.91 | ||
|
Unavailable |
|||
|
#4
SENSOR ASSY., BANK ANGLE
35160-MGS-D31
|
$171.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
HORN ASSY. (HIGH)
38110-MBV-712
|
$97.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER COMP (UPPER)
38255-MLB-D00
|
$11.67 | ||
|
Unavailable |
|||
|
#7
BLUETOOTH UNIT
38350-K0Z-918
|
$119.55 | ||
|
Unavailable |
|||
|
#8
CUSHION
38351-MLL-D00
|
$5.60 | ||
|
Unavailable |
|||
|
#9
RELAY (MICRO ISO 4P)
38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#10
COVER, RELAY (2P)
38506-KZZ-900
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
PGM-FI UNIT
38770-MLB-C21
|
$1,306.62 | ||
|
Unavailable |
|||
|
#12
CHARGER UNIT, USB (TYPE-C)
38940-MKR-D11
|
$76.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, USB CHARGER (TYPE-C)
38941-MLA-A00
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, USB CHARGER COVER
38942-MLA-A00
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
CONTROL UNIT, BODY
38950-MLB-A21
|
$240.53 | ||
|
Unavailable |
|||
|
#16
BAND, FR. NUMBER PLATE
64111-181-000
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, TOOL
80123-GN5-900
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR, AMBIENT
80525-K1W-V11
|
$9.11 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (6X16)
90020-GHB-640
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X14)
90025-GHB-630
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X22)
90026-GHB-670
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X14)
90036-GHB-630
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND, WIRE HARNESS
90651-K31-A61
|
$2.29 | ||
|
Unavailable |
|||
|
#24
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, CABLE (10MM) CLIP, CABLE (8MM)
90690-GHB-641
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, CABLE (15MM)
90690-GHB-651
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, CABLE (25MM)
90690-GHB-671
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
STRAP, WIRE HARNESS (NOT AVAILABLE)
90690-K2K-D01
|
$1.11 | ||
|
Unavailable |
|||
|
#29
CLAMP, HARNESS
90690-MEF-800
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP, CONNECTOR (DARK BLUE)
91535-STK-003
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP, WIRE HARNESS (BLACK)
91556-SK7-003
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#32
CAP, DUMMY (6P) (RED)
91771-MKK-H11
|
$25.67 | ||
|
Available to order. Add to View Price |
|||
|
#33
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#34
FUSE, MINI (15A) (Honda Code 4853438)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
|
#35
FUSE, MINI (30A) (Honda Code 5359666)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
