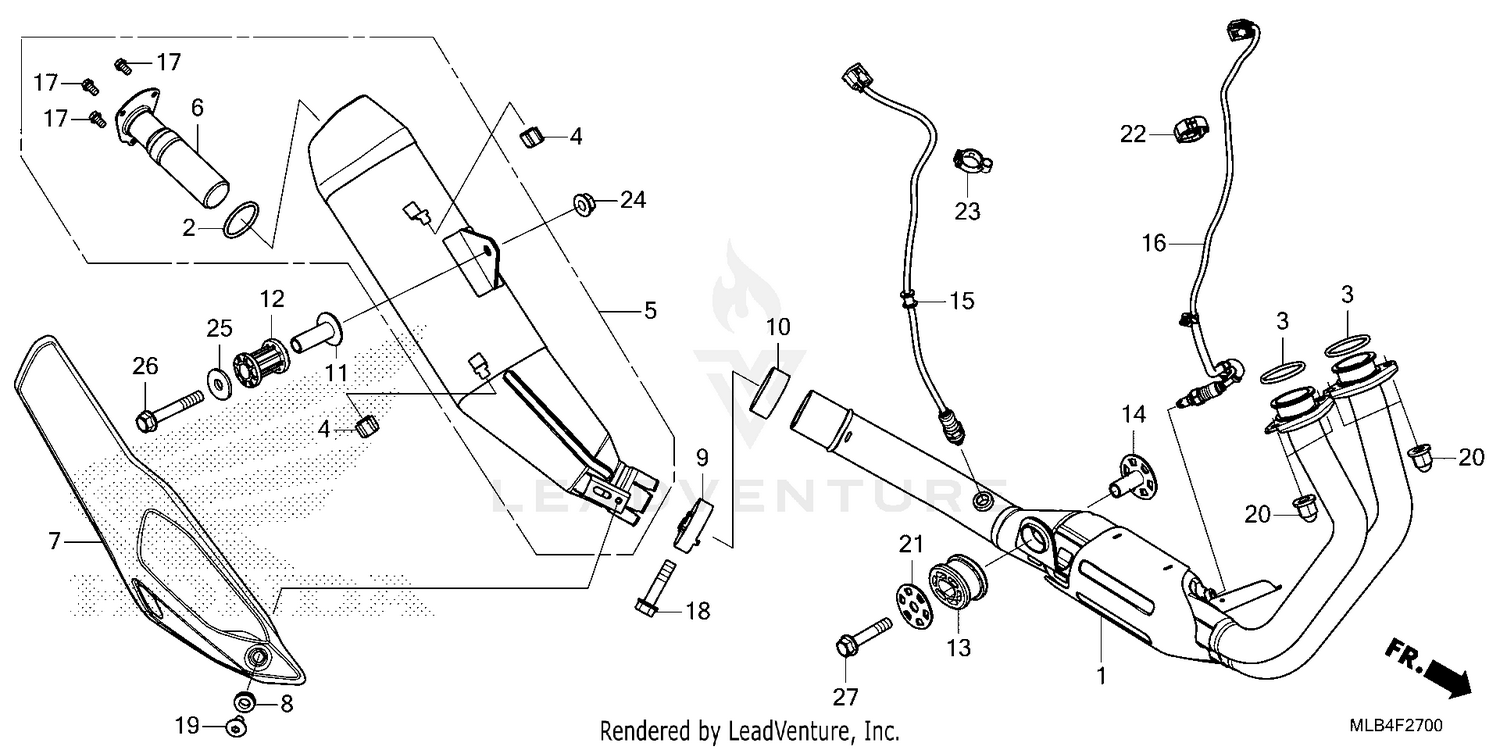

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EX.
18150-MLB-D20
|
$1,569.98 | ||
|
Unavailable |
|||
|
#2
GASKET, EX. PIPE
18291-MEB-670
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-MM8-880
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, PROTECTOR
18293-MN0-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER ASSY., EX.
18300-MLB-A20
|
$481.07 | ||
|
Unavailable |
|||
|
#6
PIPE, TAIL
18317-MLB-A20
|
$54.56 | ||
|
Unavailable |
|||
|
#7
COVER COMP, MUFFLER
18340-MLB-D00
|
$92.95 | ||
|
Unavailable |
|||
|
#8
RUBBER, PROTECTOR MOUNTING
18345-MBT-610
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BAND, MUFFLER
18371-MLB-D00
|
$20.69 | ||
|
Unavailable |
|||
|
#10
GASKET, MUFFLER
18391-MEL-000
|
$26.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, MUFFLER MOUNTING
18420-MGZ-J00
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, MUFFLER MOUNTING
18421-MGZ-J00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, EX. PIPE MOUNTING
18422-MFJ-D10
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, EX. PIPE MOUNTING
18423-MGC-N20
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR (ZFAS-S5.1)
36531-MLB-D21
|
$158.40 | ||
|
Unavailable |
|||
|
#16
SENSOR
36533-MLB-D01
|
$202.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X10)
90101-KCE-000
Superseded by 96001-06010-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (8X35)
90103-KCM-620
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (6X12)
90113-GFP-B00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CAP (8MM)
90304-ME1-670
|
$7.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER (8.5X38)
90501-MGC-N20
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP, HARNESS
90690-MEF-800
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, CABLE (12MM)
90690-MGS-D81
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE (8MM) NUT, FLANGE (10MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, PLAIN (8MM)
94103-08000
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X50)
96300-08050-04
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X40)
96400-08040-04
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
