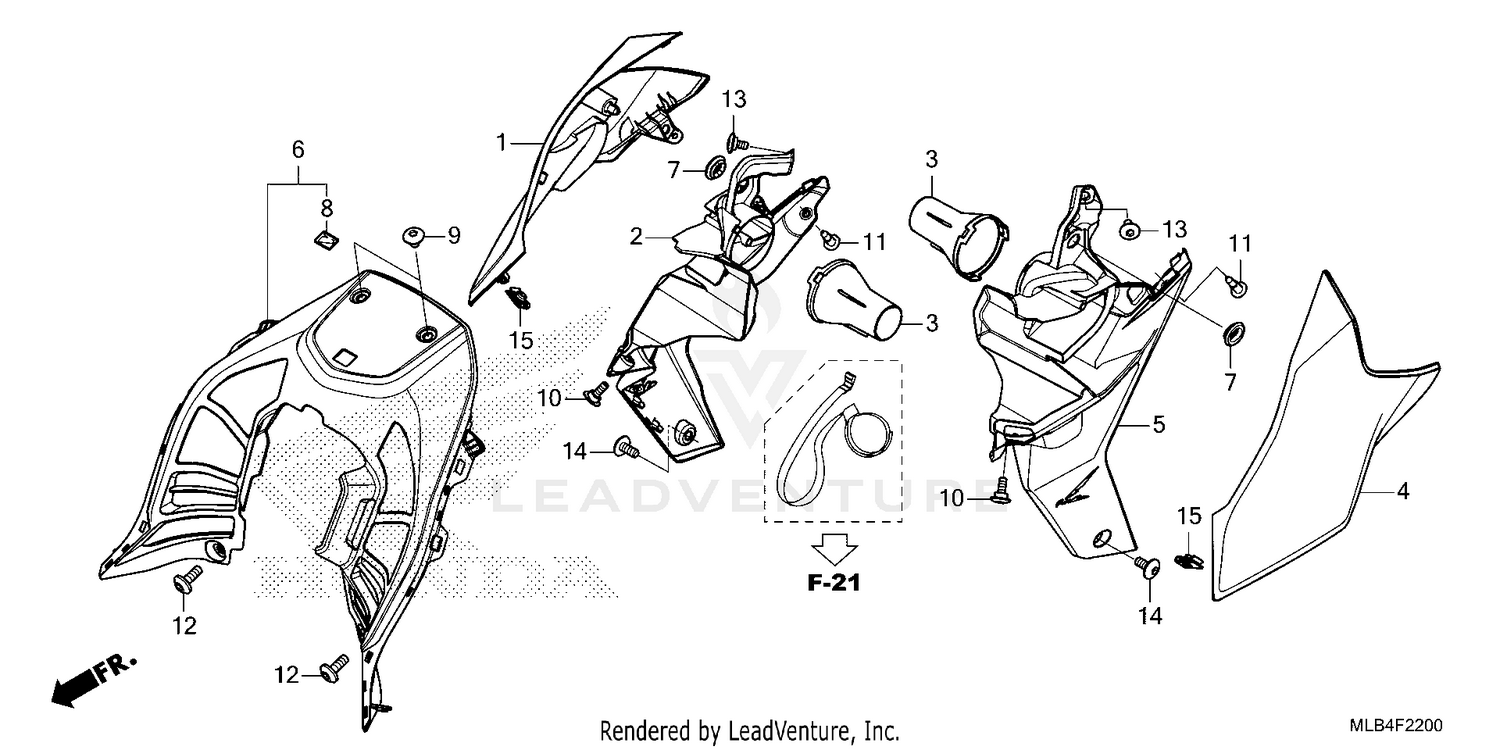

Shelter@shroud Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHROUD SET A (TYPE4)
64300-MLB-G40ZD
|
$127.24 | ||
|
Unavailable |
|||
|
#2
SHROUD B, R.
64336-MLB-D00
|
$26.91 | ||
|
Unavailable |
|||
|
#3
JOINT, DUCT
64337-MLB-D00
|
$6.40 | ||
|
Unavailable |
|||
|
#4
SHROUD SET A (TYPE4)
64400-MLB-G40ZD
|
$127.24 | ||
|
Unavailable |
|||
|
#5
SHROUD B, L.
64436-MLB-D00
|
$26.91 | ||
|
Unavailable |
|||
|
#6
SHELTER ASSY., FR.
83150-MLB-D00
|
$37.51 | ||
|
Unavailable |
|||
|
#7
GROMMET, AIR CLEANER HOUSING
83551-GE2-000
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
EMBLEM, PRODUCT (MARUI)
86150-GFC-901
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN (6X8)
90105-GAG-000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, SPECIAL (5X15)
90114-MKC-A00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP, BUMPER SEAL
90116-K2P-V61
|
$1.84 | ||
|
Unavailable |
|||
|
#12
BOLT, SPECIAL (6X16)
90116-MJM-D40
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, SPECIAL (5X11)
90122-MJK-N20
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (6X14)
90125-MKN-D50
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CLIP (5MM)
90677-KAN-961
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
