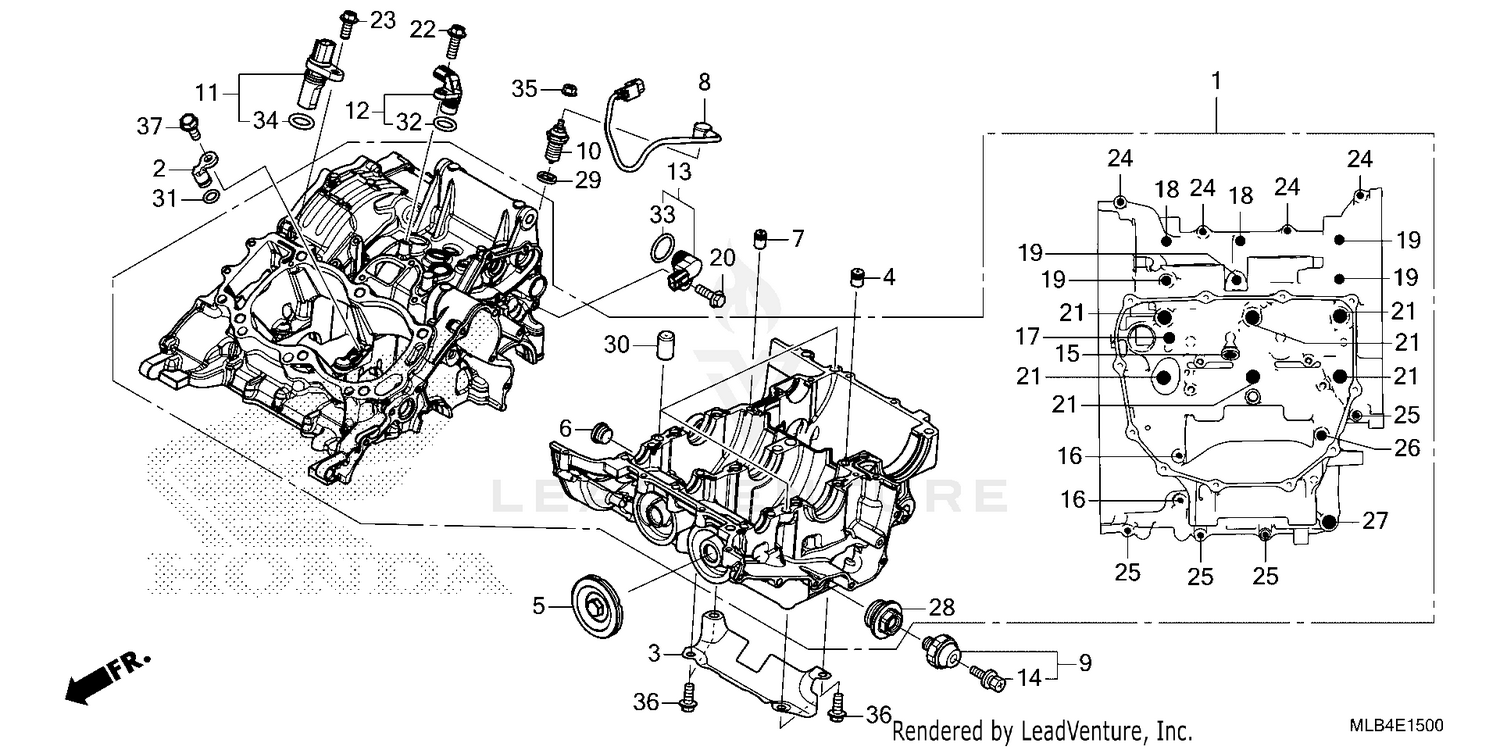

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11000-MLB-D20
|
$1,387.15 | ||
|
Unavailable |
|||
|
#2
JET, OIL
11141-MLB-D01
|
$11.00 | ||
|
Unavailable |
|||
|
#3
PLATE, BAFFLE
11203-MLB-D00
|
$7.36 | ||
|
Unavailable |
|||
|
#4
ORIFICE (1.2MM)
11207-MKS-E00
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP (20MM)
11221-MLB-D00
|
$19.96 | ||
|
Unavailable |
|||
|
#6
BOLT, SEALING (14MM)
12206-MBW-000
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
ORIFICE (1.7MM)
15516-MLB-D00
|
$4.87 | ||
|
Unavailable |
|||
|
#8
SUB-HARNESS, NEUTRAL
32106-MLB-D20
|
$8.96 | ||
|
Unavailable |
|||
|
#9
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MEH-661
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., NEUTRAL
35600-MKF-D41
|
$24.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR ASSY., CRANK
37500-K26-G82
|
$97.98 | ||
|
Unavailable |
|||
|
#12
SENSOR ASSY., SPEED
37700-K48-A01
|
$68.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR (350DEG)
38800-HL8-A01
|
$199.16 | ||
|
Unavailable |
|||
|
#14
BOLT-WASHER (4X8) (DENSO)
90002-PA6-003
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SEALING (12X8)
90002-RGA-000
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X90)
90004-PC9-000
|
$11.58 | ||
|
Unavailable |
|||
|
#17
BOLT, SOCKET (10MM)
90005-MAZ-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X45)
90005-MLB-D00
|
$2.69 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (8X75)
90006-K64-N00
|
$3.36 | ||
|
Unavailable |
|||
|
#20
BOLT, KNOCK (6MM)
90011-MGE-D00
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (10X130)
90015-MKS-E00
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X18)
90026-GHB-650
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X16) (S-NSHF)
90028-GHB-640
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT (6X32)
90030-GHB-710
|
$2.09 | ||
|
Unavailable |
|||
|
#25
BOLT (6X45)
90030-GHB-750
|
$2.20 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (8X55)
90035-GHB-770
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT (10X70)
90040-GHB-800
|
$4.11 | ||
|
Unavailable |
|||
|
#28
BOLT, SEALING (22MM)
90048-MFL-000
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, NEUTRAL
90443-MJ6-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, DOWEL (10X16) (Honda Code 3906971)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING (6.8X1.9) (ARAI)
91301-ZM0-V31
|
$3.06 | ||
|
Unavailable |
|||
|
#32
O-RING B
91303-MKH-D21
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (16.5X2.5)
91310-MGE-D01
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING
91333-PNC-006
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, FLANGE (4MM)
94050-04000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
