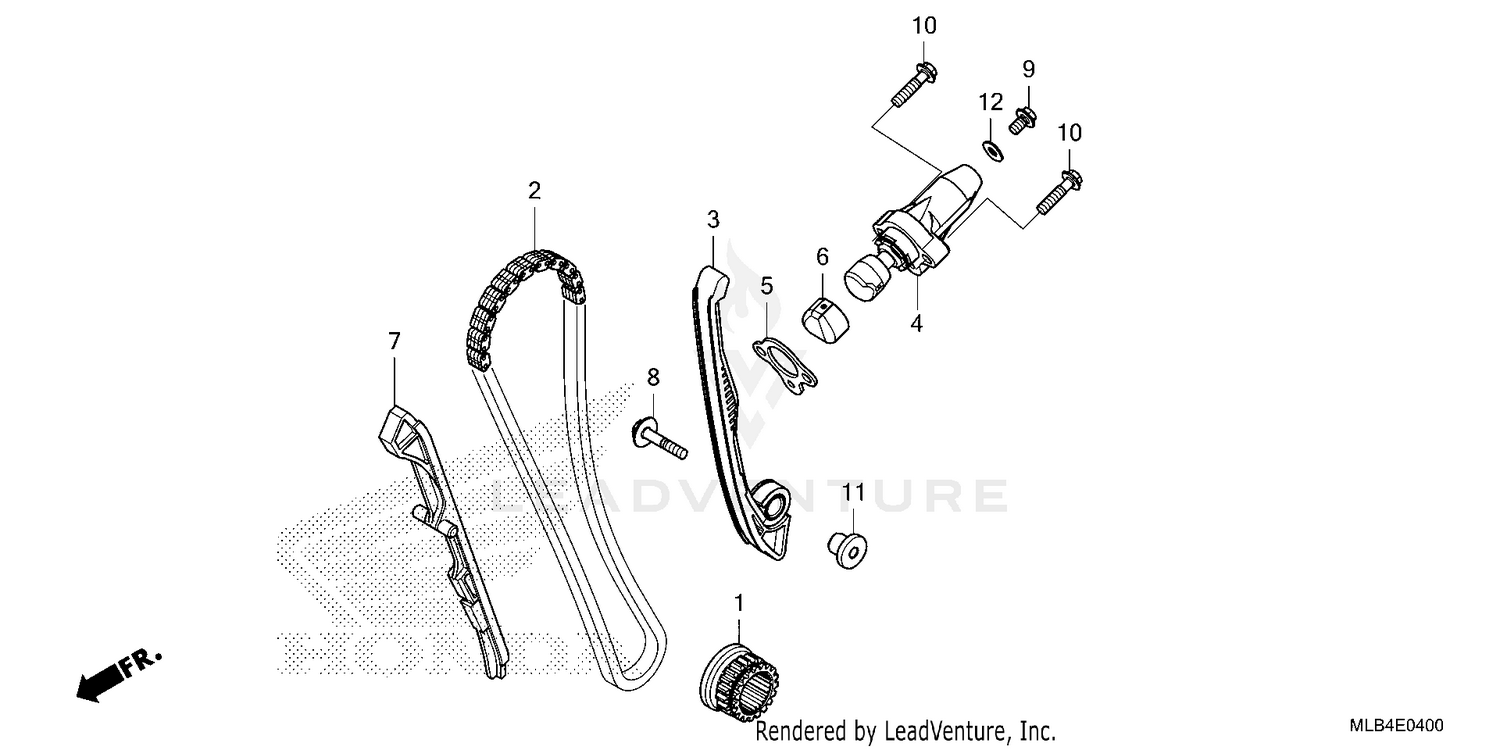

Cam Chain@tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, TIMING
14311-MLB-D00
|
$44.42 | ||
|
Unavailable |
|||
|
#2
CHAIN (SCH-0411L)
14401-MLB-D01
|
$77.07 | ||
|
Unavailable |
|||
|
#3
TENSIONER COMP
14510-MLB-D00
|
$75.80 | ||
|
Unavailable |
|||
|
#4
LIFTER, TENSIONER
14520-MLB-D01
|
$97.04 | ||
|
Unavailable |
|||
|
#5
GASKET, TENSIONER HOLE
14523-HL4-003
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, LIFTER PAT
14524-MBB-000
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE A, CAM CHAIN
14611-MLB-D00
|
$44.02 | ||
|
Unavailable |
|||
|
#8
PIVOT, CAM CHAIN TENSIONER
90022-MFJ-D00
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X10)
90028-GHB-610
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X25) (S-NSHF)
90028-GHB-680
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, CAM CN TN
90401-MLB-D00
|
$7.78 | ||
|
Unavailable |
|||
|
#12
WASHER, SEALING (6MM)
90442-397-000
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
