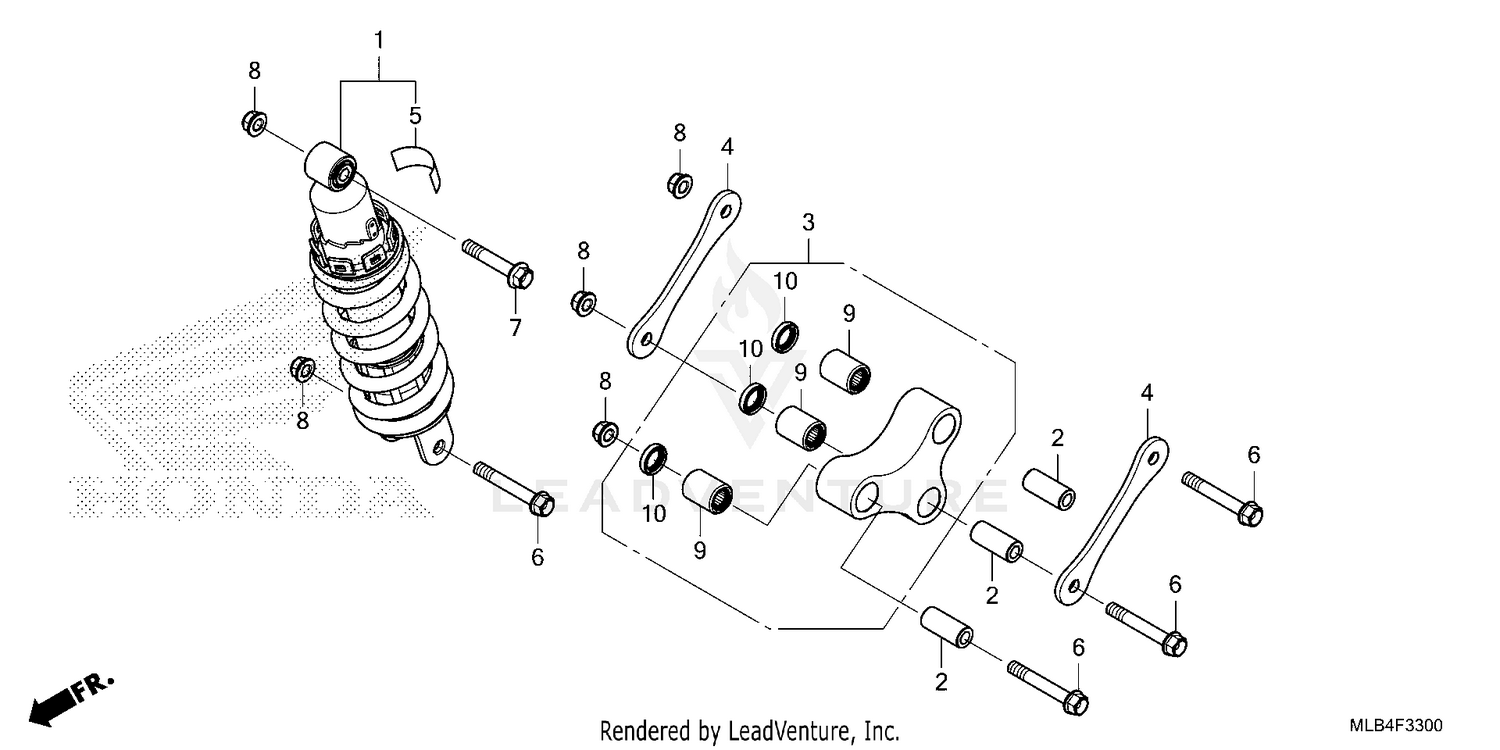

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR.
52400-MLB-M21
|
$515.91 | ||
|
Unavailable |
|||
|
#2
COLLAR, CUSHION CONNECTING ROD
52463-MAL-G00
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM SUB-ASSY.
52465-MLB-D00
|
$210.78 | ||
|
Unavailable |
|||
|
#4
PLATE, CUSHION CONNECTING ROD
52471-MKP-J00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, RR. DAMPER
87516-MBL-610
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (10X65)
90121-MLB-D00
|
$4.69 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE (10X55)
90153-KF0-000
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, U FLANGE (10MM)
90305-MLB-D01
|
$2.75 | ||
|
Unavailable |
|||
|
#9
BEARING, NEEDLE (17X24X30)
91052-MGS-D31
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
