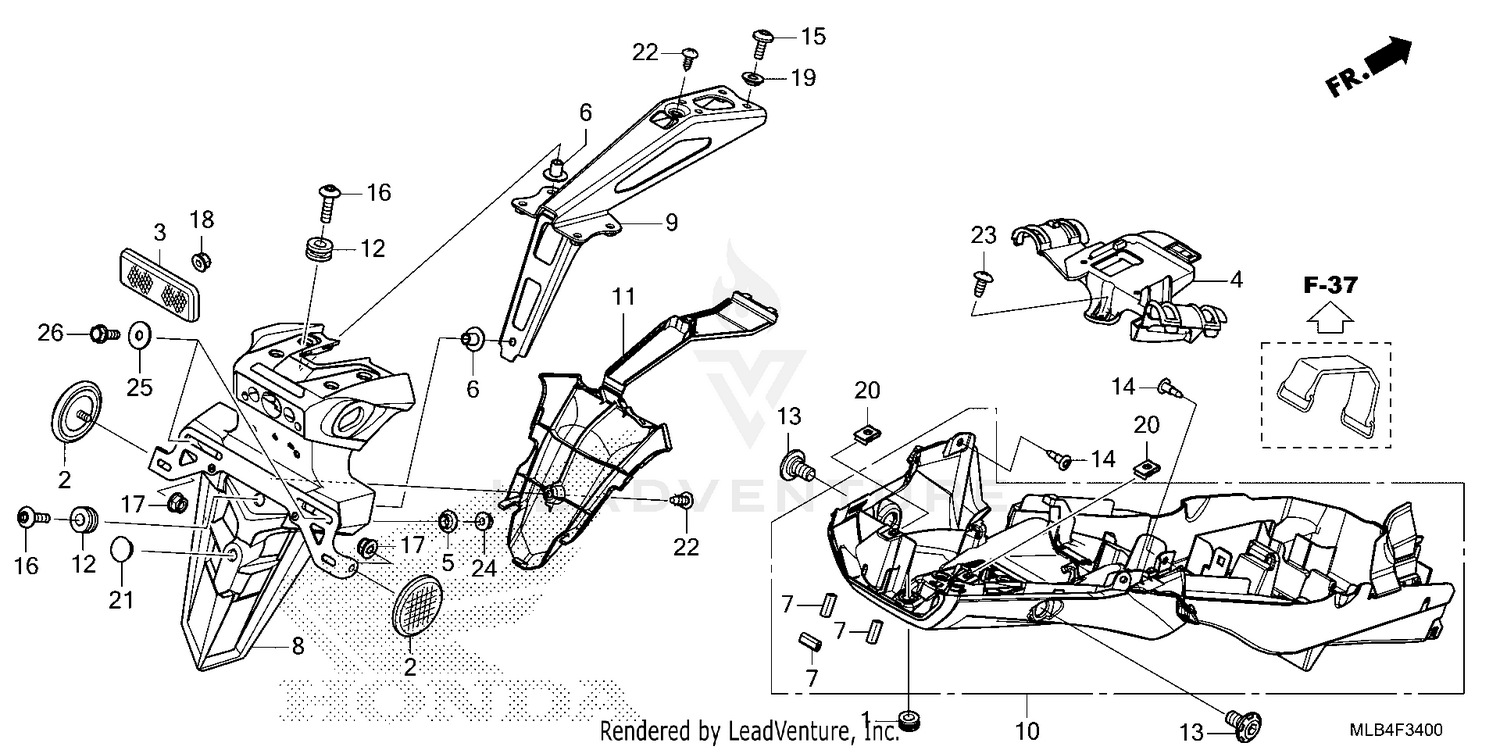

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, MOUNTING
19639-GBC-000
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
REFLECTOR, RR. REFLEX (RED)(THAI STANLEY)
33741-K2E-A01
|
$26.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
REFLECTOR, REFLEX (STANLEY)
33741-MS6-921
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
TRAY, BLUETOOTH UNIT
38351-MLB-D20
|
$6.80 | ||
|
Unavailable |
|||
|
#5
COLLAR, FR. WHEEL COVER (FOR RR.)
44125-MN5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR A, FR. FENDER
61103-KRY-900
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR, RUBBER
77212-MFJ-D00
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER SET A (TYPE1)
80100-MLB-A20ZA
|
$101.60 | ||
|
Unavailable |
|||
|
#9
BRACKET, FENDER A
80102-MJW-J00
|
$70.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
FENDER ASSY. B, RR.
80104-MLB-D00
|
$108.60 | ||
|
Unavailable |
|||
|
#11
COVER, RR. FENDER
80106-MJW-J00
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, SIDE COVER
83545-KCJ-690
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL (10X16)
90115-MKP-J00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, BUMPER SEAL
90116-K2P-V61
|
$1.84 | ||
|
Unavailable |
|||
|
#15
BOLT, SPECIAL (6X16)
90116-MJM-D40
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (6X22)
90130-MKP-J00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U (6MM) NUT, FLANGE (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, FLANGE (5MM) (FUSE RASHI)
90301-MG8-000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, MOUNTING
90503-MJE-D40
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CLIP (5MM)
90677-KAN-961
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG, HOLE
90852-KPP-T00
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TAPPING (4X12)
93903-24380
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, TAPPING (5X12)
93903-25280
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, PLAIN (6MM)
94103-06800
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
