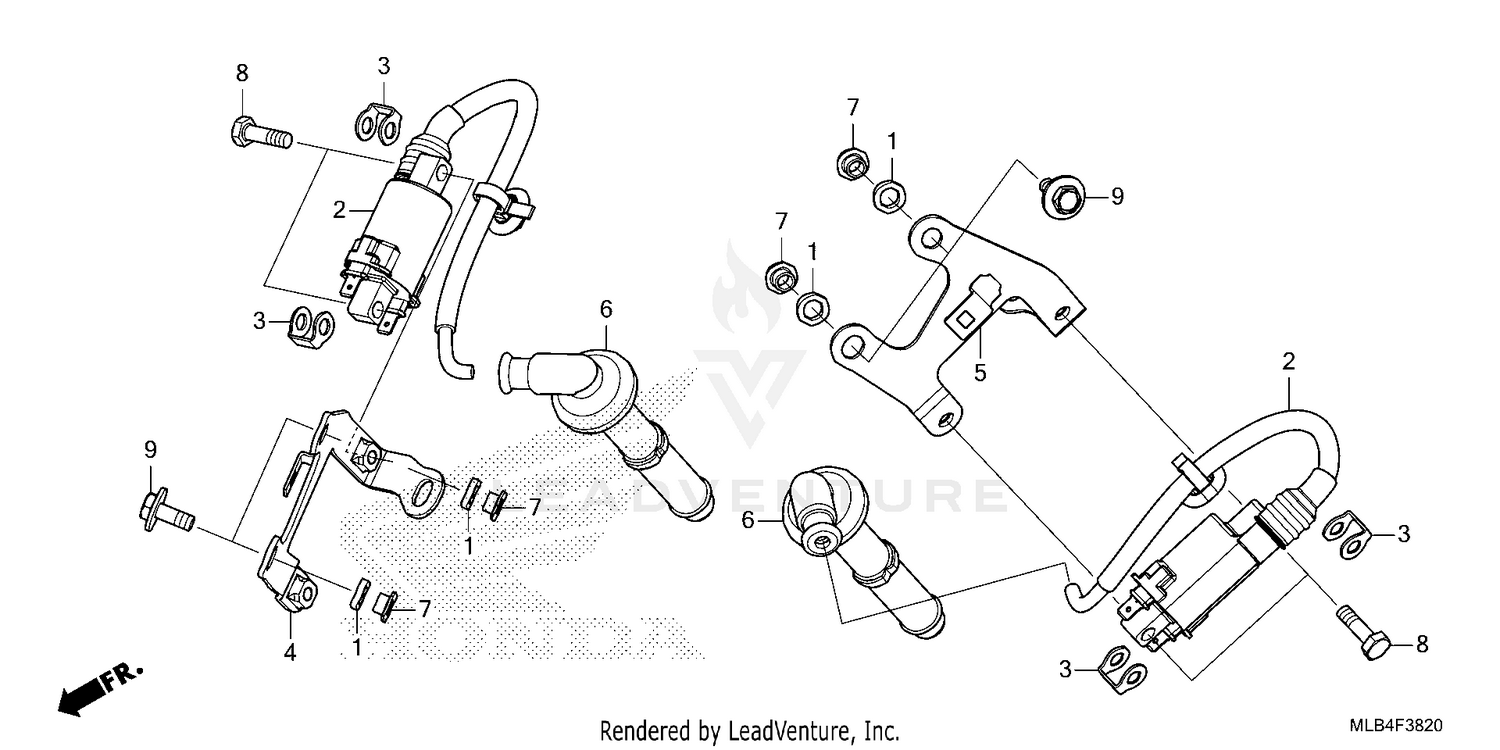

Ignition Coil Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, RUBBER (8.5X13X2.5)
18365-MEE-D00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
COIL COMP (MP39)
30510-MLB-D01
|
$58.56 | ||
|
Unavailable |
|||
|
#3
SPACER, IGNITION COIL
30520-ML7-000
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY COMP
30550-MLB-D00
|
$13.04 | ||
|
Unavailable |
|||
|
#5
STAY COMP
30560-MLB-D00
|
$13.04 | ||
|
Unavailable |
|||
|
#6
CAP ASSY., NOISE SUPPRESSOR
30700-K95-A21
|
$75.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, REFLECTOR
61101-K1T-A10
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEX. (6X20)
92101-06020-4J
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT-WASHER (6X16)
93404-06016-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
