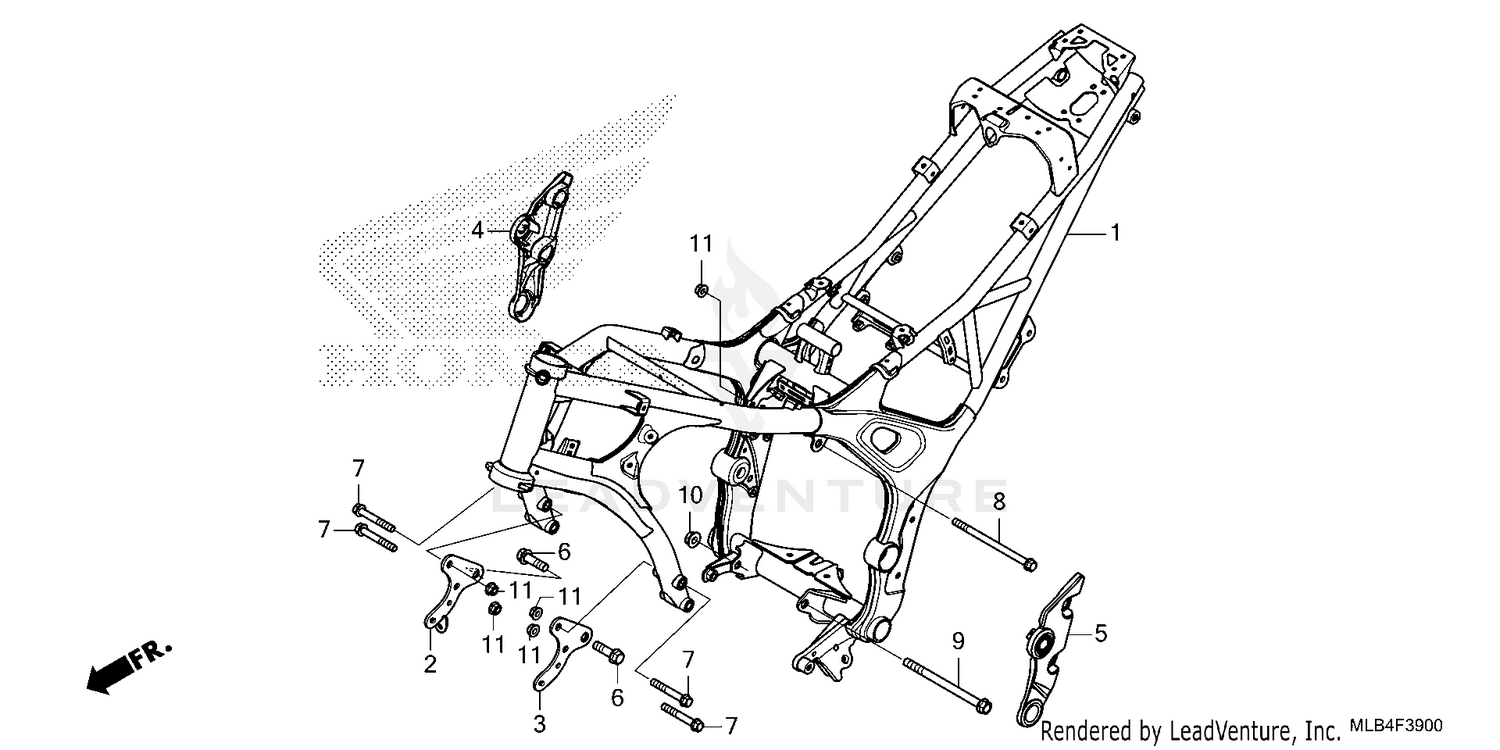

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME *NHA86M*
50100-MLB-D20ZB
|
$1,642.65 | ||
|
Unavailable |
|||
|
#2
PLATE COMP, FR.
50350-MLB-D00
|
$26.65 | ||
|
Unavailable |
|||
|
#3
PLATE COMP, FR.
50360-MLB-D00
|
$26.65 | ||
|
Unavailable |
|||
|
#4
COVER, R. PIVOT
50401-MLB-D00
|
$10.20 | ||
|
Unavailable |
|||
|
#5
COVER, L. PIVOT
50451-MLB-D00
|
$10.20 | ||
|
Unavailable |
|||
|
#6
BOLT (12X40)
90101-MLB-D00
|
$4.55 | ||
|
Unavailable |
|||
|
#7
BOLT (10X67)
90102-MLB-D00
|
$3.84 | ||
|
Unavailable |
|||
|
#8
BOLT (10X156)
90103-MLB-D00
|
$7.65 | ||
|
Unavailable |
|||
|
#9
BOLT, FLG (12X160)
90104-MLB-D00
|
$10.45 | ||
|
Unavailable |
|||
|
#10
NUT, FLANGE (12MM)
90364-MEJ-000
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE (10MM)
90303-428-900
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NUT, FLANGE (10MM)
94050-10070
Superseded by 90303-428-900
|
$4.20 | ||
|
Unavailable |
|||
