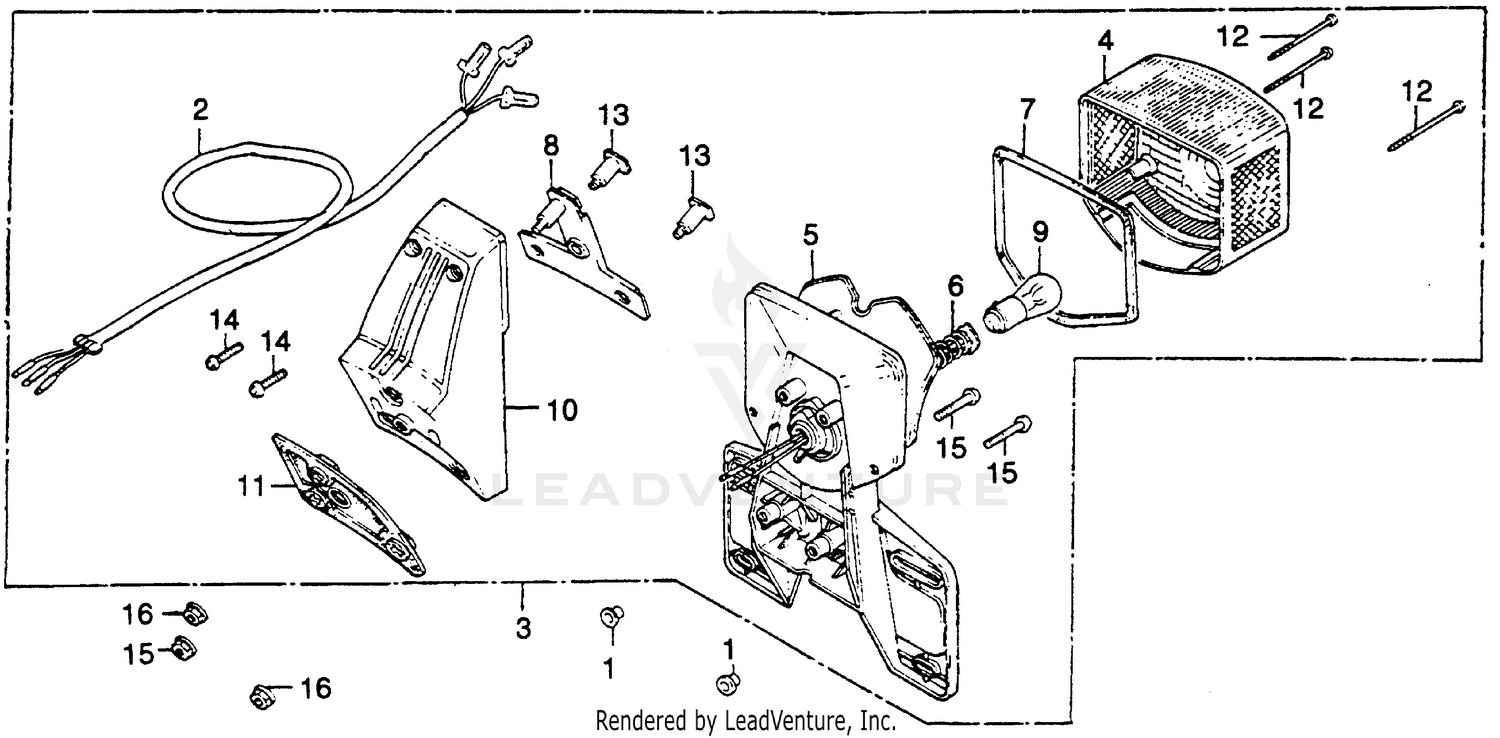

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, ADJUSTING COVER
11346-371-300
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUB-WIRE, TAILLIGHT (NOT AVAILABLE)
32200-413-003
|
$18.97 | ||
|
Unavailable |
|||
|
#3
TAILLIGHT ASSY. (NOT AVAILABLE)
33700-413-671
Superseded by 33700-413-672
|
$127.05 | ||
|
Unavailable |
|||
|
#3
TAILLIGHT ASSY. (NOT AVAILABLE)
33700-413-672
|
$127.05 | ||
|
Unavailable |
|||
|
#4
LENS, TAILLIGHT
33702-329-671
|
$21.99 | ||
|
Unavailable |
|||
|
#5
SOCKET, TAILLIGHT (NOT AVAILABLE)
33703-413-671
Superseded by 33703-413-672
|
$71.58 | ||
|
Unavailable |
|||
|
#5
SOCKET, TAILLIGHT (NOT AVAILABLE)
33703-413-672
|
$71.58 | ||
|
Unavailable |
|||
|
#6
WIRE, TAILLIGHT
33708-098-000
|
$8.06 | ||
|
Unavailable |
|||
|
#6
WIRE, TAILLIGHT
33708-341-671
Superseded by 33708-098-000
|
$8.06 | ||
|
Unavailable |
|||
|
#7
GASKET, TAILLIGHT LENS
33709-092-671
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, TAILLIGHT MOUNT (NOT AVAILABLE)
33709-413-671
|
$7.88 | ||
|
Unavailable |
|||
|
#9
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)
34906-MG9-771
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)
34906-341-671
Superseded by 34906-MG9-771
|
$5.20 | ||
|
Unavailable |
|||
|
#10
COVER, TAILLIGHT (NOT AVAILABLE)
84702-413-003
|
$10.06 | ||
|
Unavailable |
|||
|
#11
GASKET, TAILLIGHT COVER BASE
84707-413-003
|
$6.06 | ||
|
Unavailable |
|||
|
#12
SCREW, TAPPING (4X60)
90147-147-671
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT A, TAILLIGHT
90165-413-671
|
$2.63 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN (5X16)
93500-05016-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (5X30)
93500-05030-0A
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
