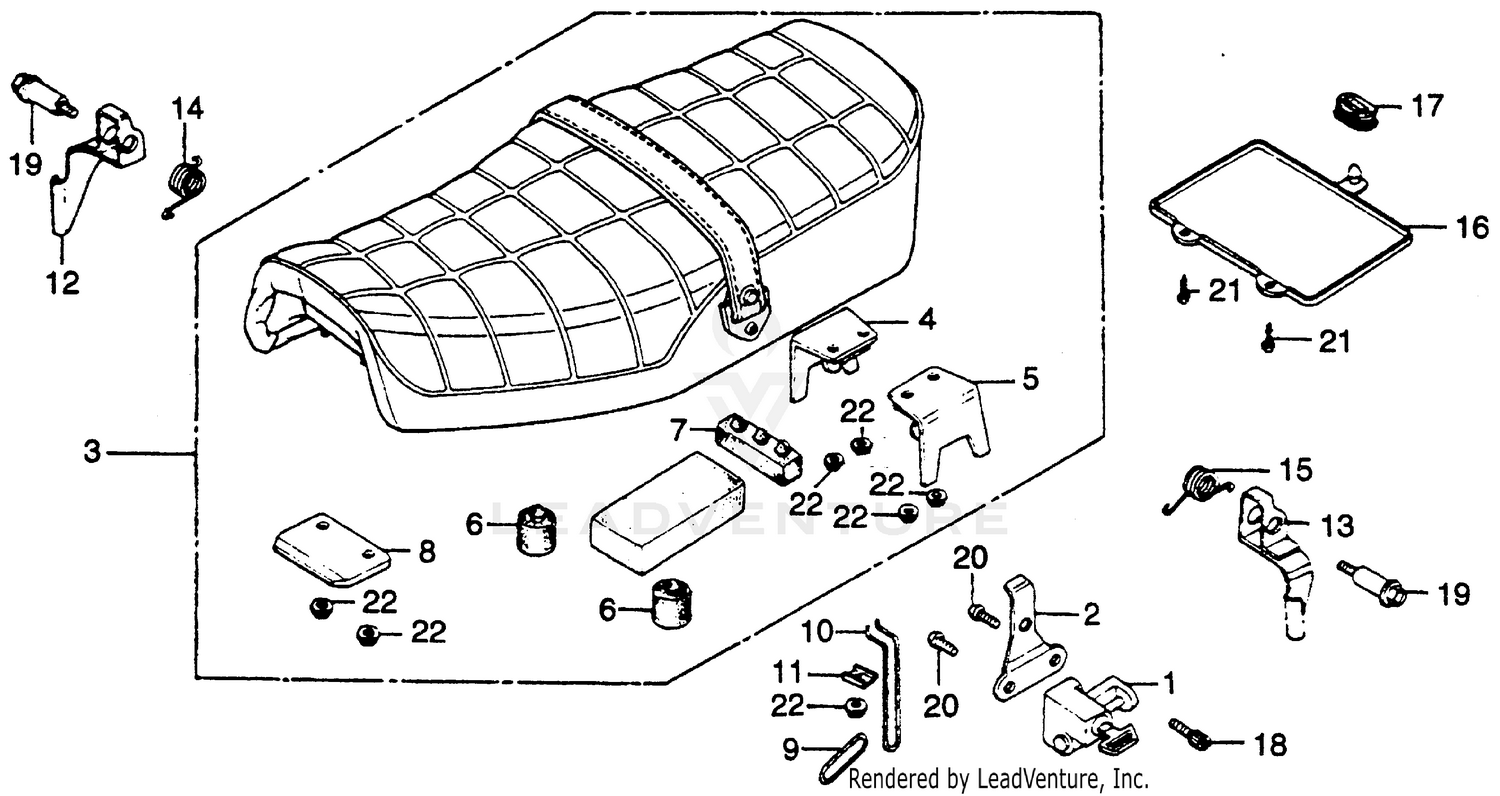

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER ASSY., HELMET (HONDALOCK)
50710-086-007
|
$80.35 | ||
|
Available to order. Add to View Price |
|||
|
#1
HOLDER ASSY., HELMET (HONDALOCK)
50710-371-007
Superseded by 50710-086-007
|
$80.35 | ||
|
Unavailable |
|||
|
#3
SEAT ASSY. (NOT AVAILABLE)
77200-417-000
|
$213.56 | ||
|
Unavailable |
|||
|
#4
PLATE, R. SEAT LOCK
77202-413-000
|
$11.61 | ||
|
Unavailable |
|||
|
#5
PLATE, L. SEAT LOCK
77203-413-000
|
$11.61 | ||
|
Unavailable |
|||
|
#6
RUBBER A, SEAT SETTING
77204-286-020
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER B, SEAT SETTING
77205-286-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER B, SEAT SETTING
77205-292-000
Superseded by 77205-286-000
|
$6.64 | ||
|
Unavailable |
|||
|
#7
RUBBER B, SEAT SETTING
77205-292-010
Superseded by 77205-286-000
|
$6.64 | ||
|
Unavailable |
|||
|
#8
STAY, FR. SEAT (NOT AVAILABLE)
77206-413-000
|
$4.49 | ||
|
Unavailable |
|||
|
#9
RING, SEAT LOCK (NOT AVAILABLE)
77211-413-000
|
$4.76 | ||
|
Unavailable |
|||
|
#10
ARM, SEAT LOCK (NOT AVAILABLE)
77212-413-000
|
$3.01 | ||
|
Unavailable |
|||
|
#11
WASHER, SEAT LOCK (NOT AVAILABLE)
77213-413-000
|
$2.02 | ||
|
Unavailable |
|||
|
#12
LEVER, R. SEAT LOCK (NOT AVAILABLE)
77221-413-000
|
$4.51 | ||
|
Unavailable |
|||
|
#13
LEVER, L. SEAT LOCK (NOT AVAILABLE)
77222-413-000
|
$4.51 | ||
|
Unavailable |
|||
|
#14
SPRING, R. SEAT LOCK (NOT AVAILABLE)
77225-413-000
|
$1.70 | ||
|
Unavailable |
|||
|
#15
SPRING, L. SEAT LOCK (NOT AVAILABLE)
77226-413-000
|
$1.70 | ||
|
Unavailable |
|||
|
#16
LID, SEAT (LOWER) (NOT AVAILABLE)
77250-342-300
|
$10.22 | ||
|
Unavailable |
|||
|
#17
GROMMET, AIR CLEANER HOUSING
83551-300-000
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, SPECIAL (8X16MM) (NOT AVAILABLE)
90105-413-000
|
$4.58 | ||
|
Unavailable |
|||
|
#19
BOLT, SEAT LOCK
90130-413-000
|
$6.22 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (6X10)
93500-06010
Superseded by 93500-06010-0A
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, TAPPING (5X8)
93901-25080
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
