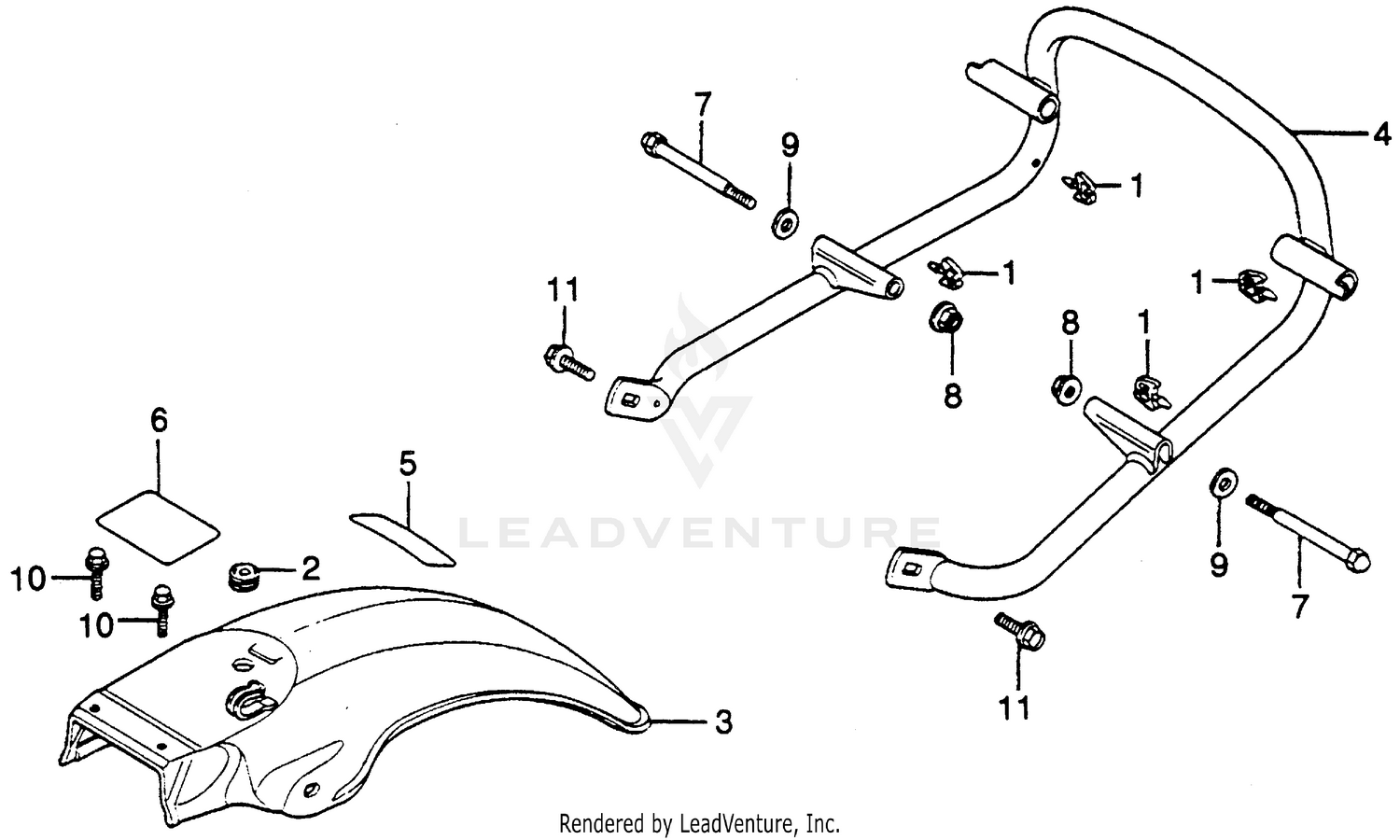

Rear Fender + Bumper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, TURN SIGNAL WIRE
32805-413-000
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET, WIRE HARNESS
32983-028-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
FENDER, RR. (NOT AVAILABLE)
80100-413-000
|
$160.65 | ||
|
Unavailable |
|||
|
#4
BUMPER, RR. (NOT AVAILABLE)
84101-413-000
|
$174.03 | ||
|
Unavailable |
|||
|
#5
MARK, TIRE CAUTION (NOT AVAILABLE)
87505-413-670
|
$5.27 | ||
|
Unavailable |
|||
|
#6
LABEL, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)
87512-387-770
|
$11.86 | ||
|
Unavailable |
|||
|
#7
BOLT, CAP (8X80) (SOURCE: VINTAGE PARTS INC.)
92500-08080-0B
|
$3.07 | ||
|
Unavailable |
|||
|
#8
NUT, FLANGE (8MM)
94050-08080
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, FLAT (8MM)
94102-08200
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X16)
95700-06016-08
Superseded by 95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (6X16)
95900-06016-08
Superseded by 95701-06016-08
|
$1.52 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (8X16)
95700-08016-00
Superseded by 95701-08016-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X16)
95701-08016-00
|
$1.88 | ||
|
Unavailable |
|||
