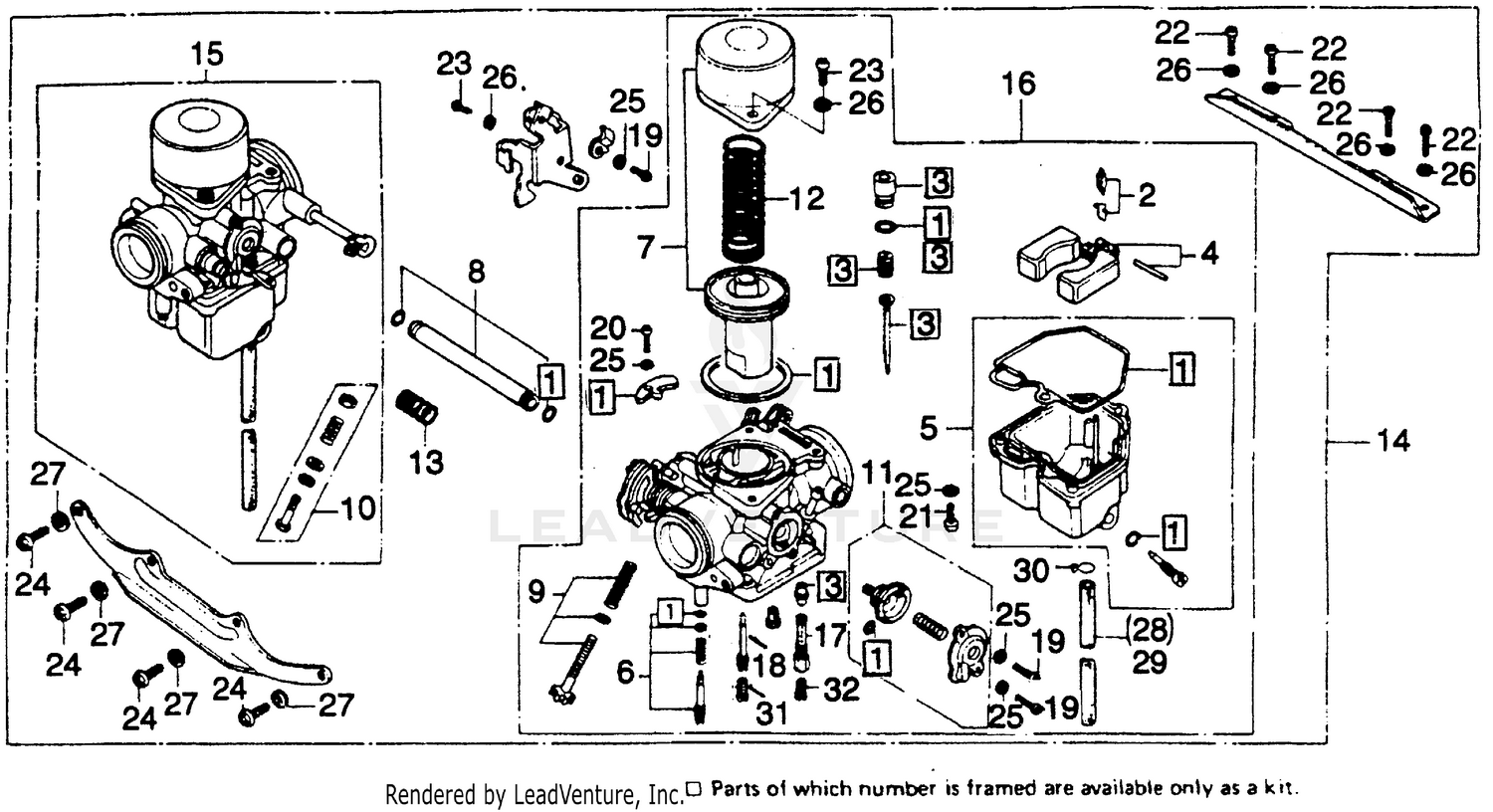

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-413-004
Superseded by 16010-413-305
|
$41.19 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-413-305
|
$41.19 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-382-004
Superseded by 16011-KCK-910
|
$40.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16012-413-004
|
$39.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-679-005
|
$64.98 | ||
|
Unavailable |
|||
|
#5
CHAMBER SET, FLOAT
16015-413-004
Superseded by 16015-425-871
|
$146.08 | ||
|
Unavailable |
|||
|
#5
CHAMBER SET, FLOAT
16015-425-871
|
$146.08 | ||
|
Unavailable |
|||
|
#6
SCREW SET
16016-364-780
Superseded by 16016-463-661
|
$25.93 | ||
|
Unavailable |
|||
|
#6
SCREW SET
16016-463-661
|
$25.93 | ||
|
Unavailable |
|||
|
#7
PISTON SET, VACUUM
16022-413-004
Superseded by 16044-425-771
|
$168.42 | ||
|
Unavailable |
|||
|
#7
PISTON SET, VACUUM
16044-425-771
|
$168.42 | ||
|
Unavailable |
|||
|
#8
JOINT SET, FUEL (NOT AVAILABLE)
16026-413-004
|
$28.36 | ||
|
Unavailable |
|||
|
#9
SCREW SET B (NOT AVAILABLE)
16028-413-004
|
$13.01 | ||
|
Unavailable |
|||
|
#10
SCREW SET C
16029-PC6-005
|
$10.35 | ||
|
Unavailable |
|||
|
#10
SCREW SET C
16029-413-004
Superseded by 16029-PC6-005
|
$10.35 | ||
|
Unavailable |
|||
|
#11
VALVE SET, AIR CUT
16048-413-004
|
$128.58 | ||
|
Unavailable |
|||
|
#12
SPRING, VACUUM PISTON (NOT AVAILABLE)
16050-413-004
|
$9.22 | ||
|
Unavailable |
|||
|
#13
SPRING, COMPRESSION COIL (NOT AVAILABLE)
16051-413-004
|
$4.76 | ||
|
Unavailable |
|||
|
#14
CARBURETOR ASSY. (NOT AVAILABLE)
16100-413-871
|
$1,009.04 | ||
|
Unavailable |
|||
|
#15
CARBURETOR ASSY., R. (NOT AVAILABLE)
16101-413-871
Superseded by 16101-413-024
|
$464.54 | ||
|
Unavailable |
|||
|
#16
CARBURETOR ASSY., L.
16102-413-871
|
$383.63 | ||
|
Unavailable |
|||
|
#17
HOLDER, NEEDLE JET
16165-413-004
Superseded by 16165-449-771
|
$37.92 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, NEEDLE JET
16165-449-771
|
$37.92 | ||
|
Unavailable |
|||
|
#18
NOZZLE, MAIN (NOT AVAILABLE)
16166-413-004
|
$12.56 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN (4X12)
93500-04012-0H
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (4X14)
93500-04014-0H
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (4X16)
93500-04016-0H
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (5X12)
93500-05012-0H
|
$0.95 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN (5X16)
93500-05016-0H
|
$0.87 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN (6X16)
93500-06016-0H
|
$0.98 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN (6X16)
93500-06016-08
Superseded by 93500-06016-0H
|
$0.98 | ||
|
Unavailable |
|||
|
#25
WASHER, SPRING (4MM)
94111-04800
|
$1.03 | ||
|
Unavailable |
|||
|
#26
WASHER, SPRING (5MM)
94111-05800
|
$1.18 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING (6MM)
94111-06800
|
$1.18 | ||
|
Unavailable |
|||
|
#28
BULK HOSE, FUEL (3.5X3000) (3.5X360)
95001-35003-60M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#29
BULK HOSE, FUEL (3.5X3000) (3.5X480)
95001-35003-60M
|
$25.27 | ||
|
Unavailable |
|||
|
#30
CLIP, TUBE (C6.5)
95002-35000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET,MAIN,#75
99101-393-0750
Superseded by 99101-166-0750
|
$8.85 | ||
|
Unavailable |
|||
|
#32
JET, MAIN (#105)
99101-GHB-1050
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#32
JET, MAIN (#105)
99101-393-1050
Superseded by 99101-GHB-1050
|
$8.04 | ||
|
Unavailable |
|||
|
#32
JET, MAIN (#105)
99102-393-1050
Superseded by 99101-GHB-1050
|
$8.04 | ||
|
Unavailable |
|||
