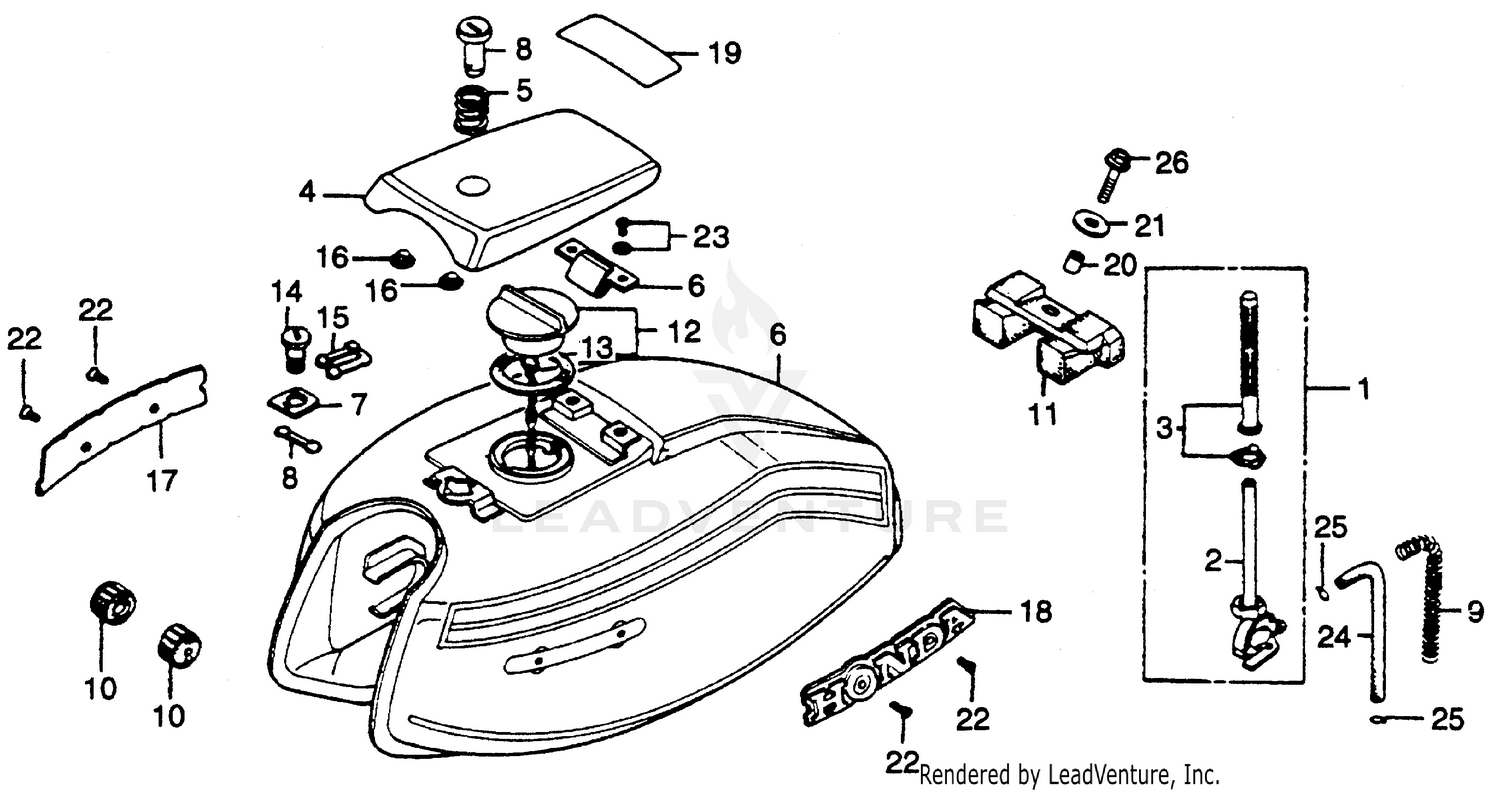

Fuel Tank 79 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-385-702
Superseded by 16950-385-703
|
$83.55 | ||
|
Available to order. Add to View Price |
|||
|
#1
PETCOCK ASSY.
16950-385-703
|
$83.55 | ||
|
Unavailable |
|||
|
#2
BODY, PETCOCK (NOT AVAILABLE)
16951-385-702
Superseded by 16951-385-703
|
$28.86 | ||
|
Unavailable |
|||
|
#2
BODY, PETCOCK (NOT AVAILABLE)
16951-385-703
|
$28.86 | ||
|
Unavailable |
|||
|
#3
SCREEN SET, FUEL STRAINER
16952-388-015
|
$31.26 | ||
|
Unavailable |
|||
|
#4
LID, FUEL TANK *NH1* (BLACK)
17511-413-870ZA
|
$59.92 | ||
|
Unavailable |
|||
|
#4
LID, FUEL TANK *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)
17511-413-870ZB
|
$48.56 | ||
|
Unavailable |
|||
|
#5
SPRING A, FUEL TANK LID (NOT AVAILABLE)
17512-413-000
|
$6.13 | ||
|
Unavailable |
|||
|
#6
TANK SUB-ASSY., FUEL *NH1* (BLACK) (NOT AVAILABLE)
17520-417-870ZA
|
$724.18 | ||
|
Unavailable |
|||
|
#6
TANK SUB-ASSY., FUEL *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)
17520-417-870ZB
|
$724.18 | ||
|
Unavailable |
|||
|
#7
SPACER, FUEL TANK LID (NOT AVAILABLE)
17525-413-870
|
$1.99 | ||
|
Unavailable |
|||
|
#8
CLIP, FILLER LOCK (NOT AVAILABLE)
17526-390-000
|
$4.73 | ||
|
Unavailable |
|||
|
#9
SPRING, FUEL TUBE COVER
17532-404-000
|
$7.98 | ||
|
Unavailable |
|||
|
#10
RUBBER, FR. FUEL TANK
17611-KE8-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, FR. FUEL TANK
17611-286-000
Superseded by 17611-KE8-000
|
$5.29 | ||
|
Unavailable |
|||
|
#11
RUBBER, RR. FUEL TANK
17613-413-000
|
$17.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, FUEL TANK
17620-377-720
Superseded by 17620-399-010
|
$37.71 | ||
|
Unavailable |
|||
|
#12
CAP, FUEL TANK
17620-399-000
Superseded by 17620-399-010
|
$37.71 | ||
|
Unavailable |
|||
|
#12
CAP, FUEL TANK
17620-399-010
|
$37.71 | ||
|
Unavailable |
|||
|
#13
GASKET (39X58X3)
17631-329-000
Superseded by 17631-ZE1-000
|
$3.58 | ||
|
Unavailable |
|||
|
#13
GASKET (39X58X3)
17631-329-003
Superseded by 17631-ZE1-000
|
$3.58 | ||
|
Unavailable |
|||
|
#14
LOCK, FILLER LID (TYPE1) (NOT AVAILABLE)
37220-399-703
|
$29.11 | ||
|
Unavailable |
|||
|
#15
SPRING, LOCK SET
37221-390-000
|
$5.24 | ||
|
Unavailable |
|||
|
#16
PLUG, CHAIN GUARD
40514-333-000
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
EMBLEM, R. FUEL TANK (NOT AVAILABLE)
87121-413-770
|
$38.47 | ||
|
Unavailable |
|||
|
#18
EMBLEM, L. FUEL TANK (NOT AVAILABLE)
87122-413-770
|
$28.94 | ||
|
Unavailable |
|||
|
#19
MARK, DRIVE CAUTION (TYPEW)
87560-375-680A
Superseded by 87560-375-680ZF
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
MARK, DRIVE CAUTION (TYPEW)
87560-375-680ZA
Superseded by 87560-375-680ZF
|
$5.07 | ||
|
Unavailable |
|||
|
#19
MARK, DRIVE CAUTION (TYPEW)
87560-375-680ZF
|
$5.07 | ||
|
Unavailable |
|||
|
#19
MARK, DRIVE CAUTION (TYPEB)
87560-375-680B
Superseded by 87560-375-680ZE
|
$3.08 | ||
|
Unavailable |
|||
|
#19
MARK, DRIVE CAUTION (TYPEB)
87560-375-680ZB
Superseded by 87560-375-680ZE
|
$3.08 | ||
|
Unavailable |
|||
|
#19
MARK, DRIVE CAUTION (TYPEB)
87560-375-680ZE
|
$3.08 | ||
|
Unavailable |
|||
|
#20
COLLAR (8MM)
90324-300-000
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (8.3MM)
90534-011-000
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, OVAL (3X6)
93700-03006-0G
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-WASHER (5X6) (NOT AVAILABLE)
93891-05006-08
|
$0.54 | ||
|
Unavailable |
|||
|
#24
BULK HOSE, FUEL (5.5X3000) (5.5X100) (BULK HOSE: 95001-55008-40M)
95001-55003-60M
|
$57.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X25)
95700-08025-08
Superseded by 95701-08025-08
|
$0.77 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (8X25)
95701-08025-08
|
$0.77 | ||
|
Unavailable |
|||
