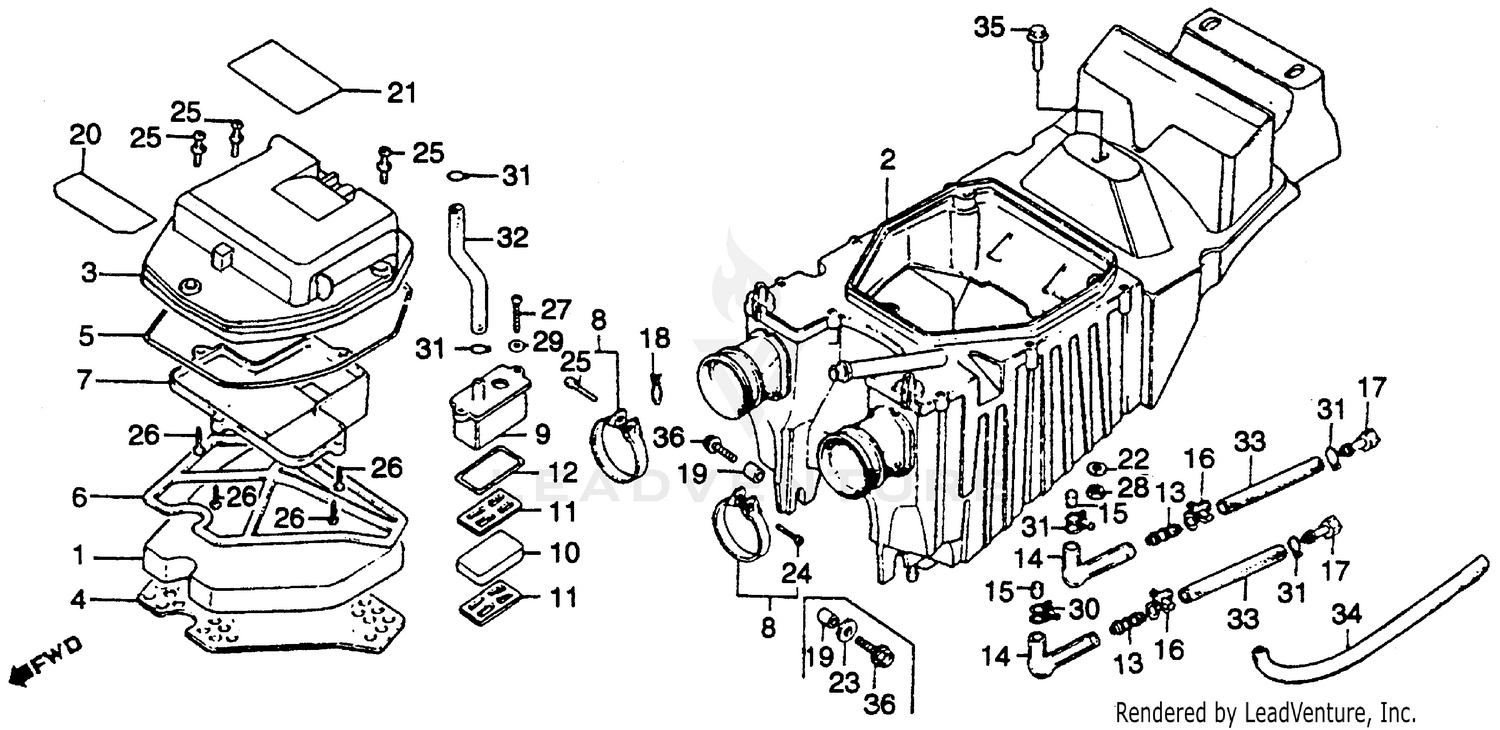

Air Cleaner Ii 79 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ELEMENT, AIR CLEANER
17211-413-000
|
$14.20 | ||
|
Unavailable |
|||
|
#2
HOUSING, AIR CLEANER (NOT AVAILABLE)
17214-413-690
|
$121.10 | ||
|
Unavailable |
|||
|
#3
COVER, AIR CLEANER HOUSING
17217-413-000
|
$25.96 | ||
|
Unavailable |
|||
|
#4
PLATE A, ELEMENT SETTING (NOT AVAILABLE)
17218-413-000
|
$23.60 | ||
|
Unavailable |
|||
|
#5
SEAL, AIR CLEANER COVER
17219-413-000
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE B, ELEMENT (NOT AVAILABLE)
17220-413-000
|
$3.78 | ||
|
Unavailable |
|||
|
#7
DUCT, AIR CLEANER (NOT AVAILABLE)
17222-413-000
|
$16.80 | ||
|
Unavailable |
|||
|
#8
BAND, AIR CLEANER CONNECTING TUBE (60)
17256-358-000
Superseded by 95018-60250
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, AIR CLEANER CONNECTING TUBE (60)
17256-425-010
Superseded by 95018-60250
|
$7.85 | ||
|
Unavailable |
|||
|
#9
CHAMBER, BREATHER (NOT AVAILABLE)
17261-413-690
|
$4.51 | ||
|
Unavailable |
|||
|
#10
FILTER, BREATHER (NOT AVAILABLE)
17265-413-690
|
$1.75 | ||
|
Unavailable |
|||
|
#11
SEPARATOR, CHAMBER (NOT AVAILABLE)
17266-413-690
|
$3.35 | ||
|
Unavailable |
|||
|
#12
GASKET, BREATHER (NOT AVAILABLE)
17268-413-690
|
$2.79 | ||
|
Unavailable |
|||
|
#13
JOINT, BREATHER TUBE
17359-419-670
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, DRAIN
17365-419-000
|
$7.33 | ||
|
Unavailable |
|||
|
#15
FILTER, DRAIN TUBE
17367-413-690
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, TUBE (A13.5)
17369-419-670
|
$6.94 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG, BREATHER TUBE
17370-419-700
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, AIR HOSE (16)
18534-634-670
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, METER SETTING (NOT AVAILABLE)
37243-371-008
|
$2.82 | ||
|
Unavailable |
|||
|
#20
LABEL, AIR CLEANER CAUTION
87506-340-670
|
$4.60 | ||
|
Unavailable |
|||
|
#21
MARK, BATTERY CAUTION (NOT AVAILABLE)
87506-413-670
|
$2.52 | ||
|
Unavailable |
|||
|
#22
WASHER, BUMPER STAY
90304-538-000
|
$9.63 | ||
|
Unavailable |
|||
|
#23
WASHER (18MM)
90581-701-000
Superseded by 90581-831-650
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (18MM)
90581-831-650
|
$2.34 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN (4X25)
93500-04025-0A
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (5X25)
93891-05025-08
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (5X25)
93891-05025-18
Superseded by 93891-05025-08
|
$1.28 | ||
|
Unavailable |
|||
|
#26
SCREW, TAPPING (3X16)
93901-32420
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, TAPPING (5X20)
93901-35420
|
$0.48 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#29
WASHER, PLAIN (5MM)
94101-05800
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP, TUBE (A16)
95002-01160
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP, TUBE (B12.5)
95002-02130
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
BULK HOSE, VACUUM (8X1000) (8X160)
95005-80001-20M
|
$28.98 | ||
|
Available to order. Add to View Price |
|||
|
#33
BULK HOSE, VACUUM (8X1000) (8X260)
95005-80001-20M
|
$28.98 | ||
|
Unavailable |
|||
|
#34
BULK HOSE, VACUUM (8X1000) (8X280) (BULK HOSE: 95005-80008-10M)
95005-80001-20M
|
$28.98 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (6X16)
95700-06016-08
Superseded by 95701-06016-08
|
$1.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (6X16)
95900-06016-08
Superseded by 95701-06016-08
|
$1.52 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE (6X20)
95700-06020-08
Superseded by 95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
