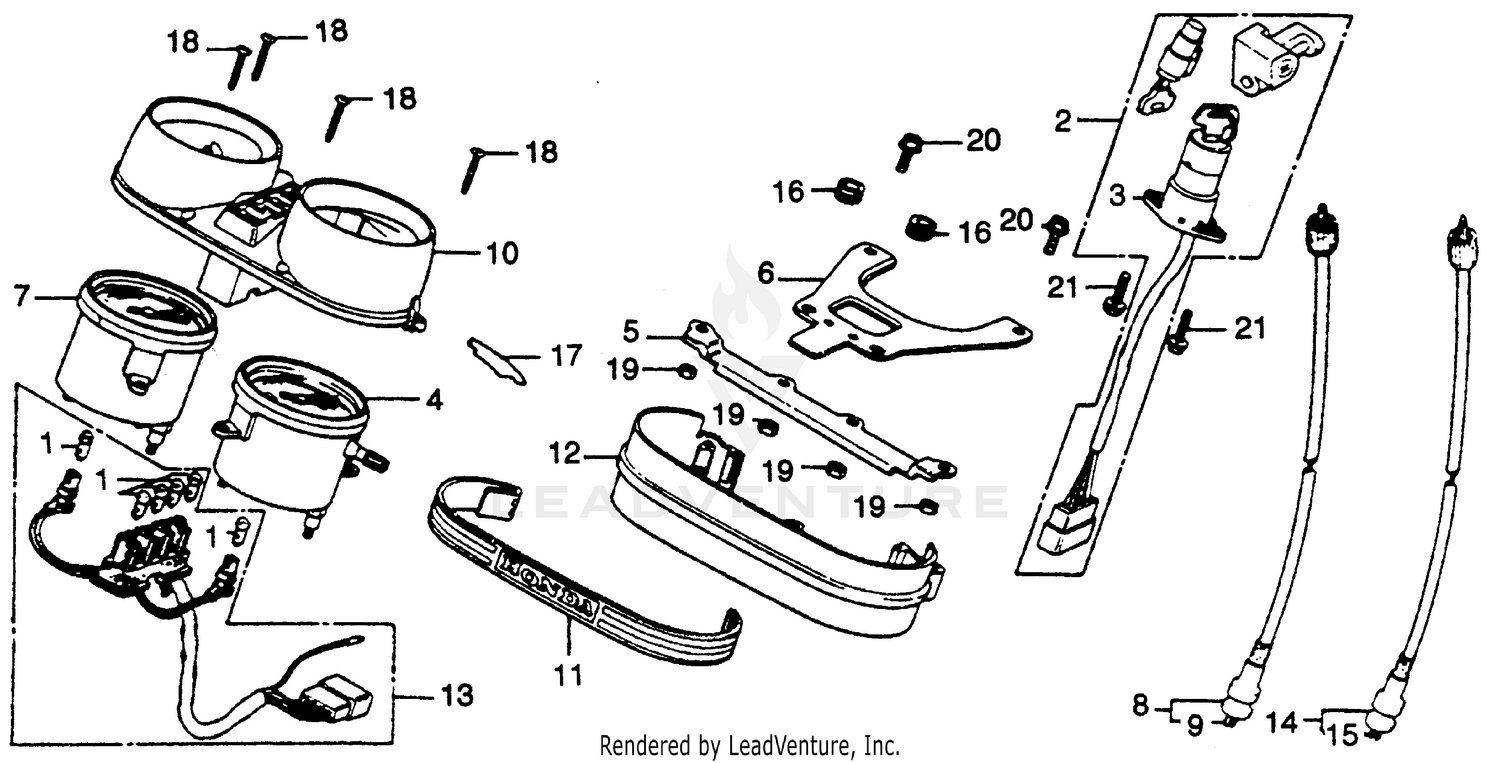

Cb40tii Key Set + Speedometer + Tachometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB, DASH (12V3.4W) (IMASEN)
34902-259-000
|
$2.73 | ||
|
Unavailable |
|||
|
#2
LOCK SET A (NOT AVAILABLE)
35010-413-871
|
$128.04 | ||
|
Unavailable |
|||
|
#3
SWITCH ASSY., COMBINATION
35100-413-007
|
$63.80 | ||
|
Unavailable |
|||
|
#4
SPEEDOMETER ASSY. (MPH/KPH)
37200-413-771
|
$269.54 | ||
|
Unavailable |
|||
|
#5
BRACKET, INSTRUMENT
37211-413-008
|
$22.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, INSTRUMENT SETTING (NOT AVAILABLE)
37212-413-008
|
$24.70 | ||
|
Unavailable |
|||
|
#7
TACHOMETER ASSY. (NOT AVAILABLE)
37250-413-871
|
$146.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE ASSY., TACHOMETER
37260-MC9-830
Superseded by 37260-MC9-860
|
$15.29 | ||
|
Unavailable |
|||
|
#8
CABLE ASSY., TACHOMETER
37260-MC9-860
|
$15.29 | ||
|
Unavailable |
|||
|
#8
CABLE ASSY., TACHOMETER
37260-413-000
Superseded by 37260-MC9-860
|
$15.29 | ||
|
Unavailable |
|||
|
#9
CABLE (INNER)
37261-GJ1-300
Superseded by 44831-KB2-300
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE (INNER)
37261-413-000
Superseded by 44831-KB2-300
|
$3.80 | ||
|
Unavailable |
|||
|
#10
CASE, PILOT (UPPER) (NOT AVAILABLE)
37610-413-008
Superseded by 37610-413-018
|
$71.19 | ||
|
Unavailable |
|||
|
#10
CASE, PILOT (UPPER) (NOT AVAILABLE)
37610-413-018
|
$71.19 | ||
|
Unavailable |
|||
|
#11
EMBLEM, INSTRUMENT (UPPER) (NOT AVAILABLE)
37611-413-008
|
$11.67 | ||
|
Unavailable |
|||
|
#12
CASE, PILOT (LOWER) (NOT AVAILABLE)
37617-413-008
|
$16.92 | ||
|
Unavailable |
|||
|
#13
WIRE, PILOT (NOT AVAILABLE)
37619-413-008
|
$64.50 | ||
|
Unavailable |
|||
|
#14
CABLE ASSY., SPEEDOMETER
44830-323-000
Superseded by 44830-425-870
|
$35.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE ASSY., SPEEDOMETER
44830-329-000
Superseded by 44830-425-870
|
$35.49 | ||
|
Unavailable |
|||
|
#14
CABLE ASSY., SPEEDOMETER
44830-346-000
Superseded by 44830-425-870
|
$35.49 | ||
|
Unavailable |
|||
|
#14
CABLE ASSY., SPEEDOMETER
44830-390-000
Superseded by 44830-425-870
|
$35.49 | ||
|
Unavailable |
|||
|
#14
CABLE ASSY., SPEEDOMETER
44830-413-000
Superseded by 44830-425-870
|
$35.49 | ||
|
Unavailable |
|||
|
#14
CABLE ASSY., SPEEDOMETER
44830-413-010
Superseded by 44830-425-870
|
$35.49 | ||
|
Unavailable |
|||
|
#14
CABLE ASSY., SPEEDOMETER
44830-415-000
Superseded by 44830-425-870
|
$35.49 | ||
|
Unavailable |
|||
|
#14
CABLE ASSY., SPEEDOMETER
44830-425-870
|
$35.49 | ||
|
Unavailable |
|||
|
#14
CABLE ASSY., SPEEDOMETER
44830-463-000
Superseded by 44830-425-870
|
$35.49 | ||
|
Unavailable |
|||
|
#15
CABLE ASSY., SPEEDOMETER
44830-323-000
Superseded by 44830-425-870
|
$35.49 | ||
|
Unavailable |
|||
|
#15
CABLE ASSY., SPEEDOMETER
44830-346-000
Superseded by 44830-425-870
|
$35.49 | ||
|
Unavailable |
|||
|
#15
CABLE ASSY., SPEEDOMETER
44830-425-870
|
$35.49 | ||
|
Unavailable |
|||
|
#16
RUBBER, RR. FENDER CUSHION
80101-283-000
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
LABEL, BREAK IN CAUTION
87523-413-710
|
$2.52 | ||
|
Unavailable |
|||
|
#18
SCREW, TAPPING (4X25)
93903-24680
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Unavailable |
|||
