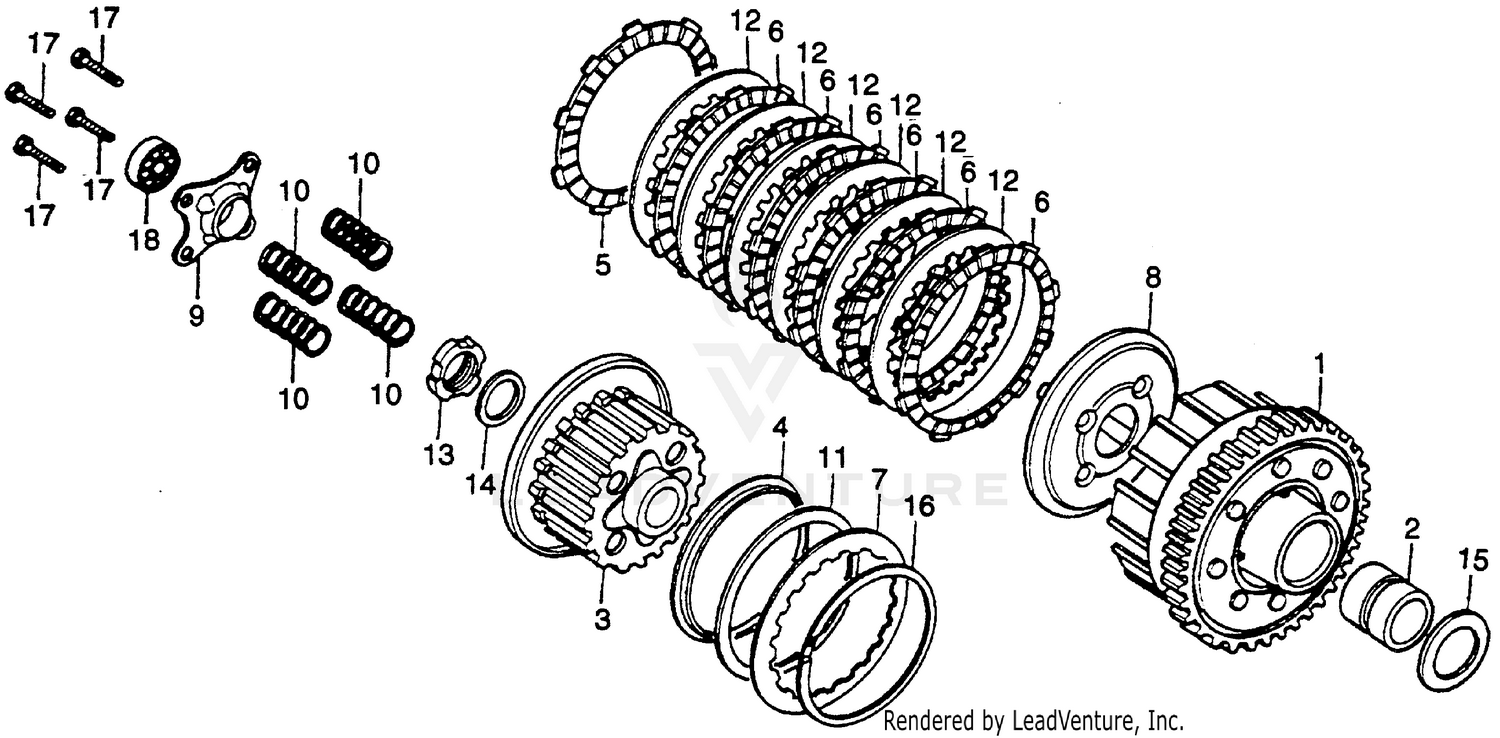

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH (OUTER) (NOT AVAILABLE)
22100-413-010
|
$181.69 | ||
|
Unavailable |
|||
|
#2
GUIDE, CLUTCH (OUTER) (NOT AVAILABLE)
22116-413-000
|
$18.24 | ||
|
Unavailable |
|||
|
#3
CENTER, CLUTCH
22120-413-000
|
$77.23 | ||
|
Unavailable |
|||
|
#4
SEAT, DISK SPRING
22125-333-000
|
$5.29 | ||
|
Unavailable |
|||
|
#5
DISK B, CLUTCH FRICTION
22201-302-000
Superseded by 22202-ML4-611
|
$21.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISK B, CLUTCH FRICTION
22202-ML4-610
Superseded by 22202-ML4-611
|
$21.96 | ||
|
Unavailable |
|||
|
#5
DISK B, CLUTCH FRICTION
22202-ML4-611
|
$21.96 | ||
|
Unavailable |
|||
|
#6
DISK, CLUTCH FRICTION
22201-ML4-610
|
$19.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, CLUTCH FRICTION
22201-377-000
Superseded by 22201-ML4-610
|
$19.87 | ||
|
Unavailable |
|||
|
#7
PLATE B, CLUTCH
22321-333-010
|
$12.85 | ||
|
Unavailable |
|||
|
#8
PLATE, CLUTCH PRESSURE
22350-413-000
|
$51.71 | ||
|
Unavailable |
|||
|
#9
PLATE, CLUTCH LIFTER (NOT AVAILABLE)
22361-413-010
|
$14.77 | ||
|
Unavailable |
|||
|
#10
SPRING, CLUTCH
22401-413-000
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, DISK
22402-333-003
|
$34.54 | ||
|
Unavailable |
|||
|
#12
PLATE A, CLUTCH
23311-413-000
|
$13.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, LOCK (20MM) (NOT AVAILABLE)
90204-706-000
|
$2.00 | ||
|
Unavailable |
|||
|
#14
WASHER, LOCK
90432-121-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, THRUST (25X42X2.3)
90459-413-000
|
$4.01 | ||
|
Unavailable |
|||
|
#16
CLIP (OUTER) (94MM) (NOT AVAILABLE)
90609-413-000
|
$13.71 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X25)
92023-06025
Superseded by 92025-06025-0A
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, HEX. (6X25)
92023-06025-0A
Superseded by 92025-06025-0A
|
$1.20 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X25)
92025-06025-0A
|
$1.20 | ||
|
Unavailable |
|||
|
#18
BEARING, RADIAL BALL (6000)
96100-60000
Superseded by 96100-60000-00
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6000)
96100-60000-00
|
$10.20 | ||
|
Unavailable |
|||
