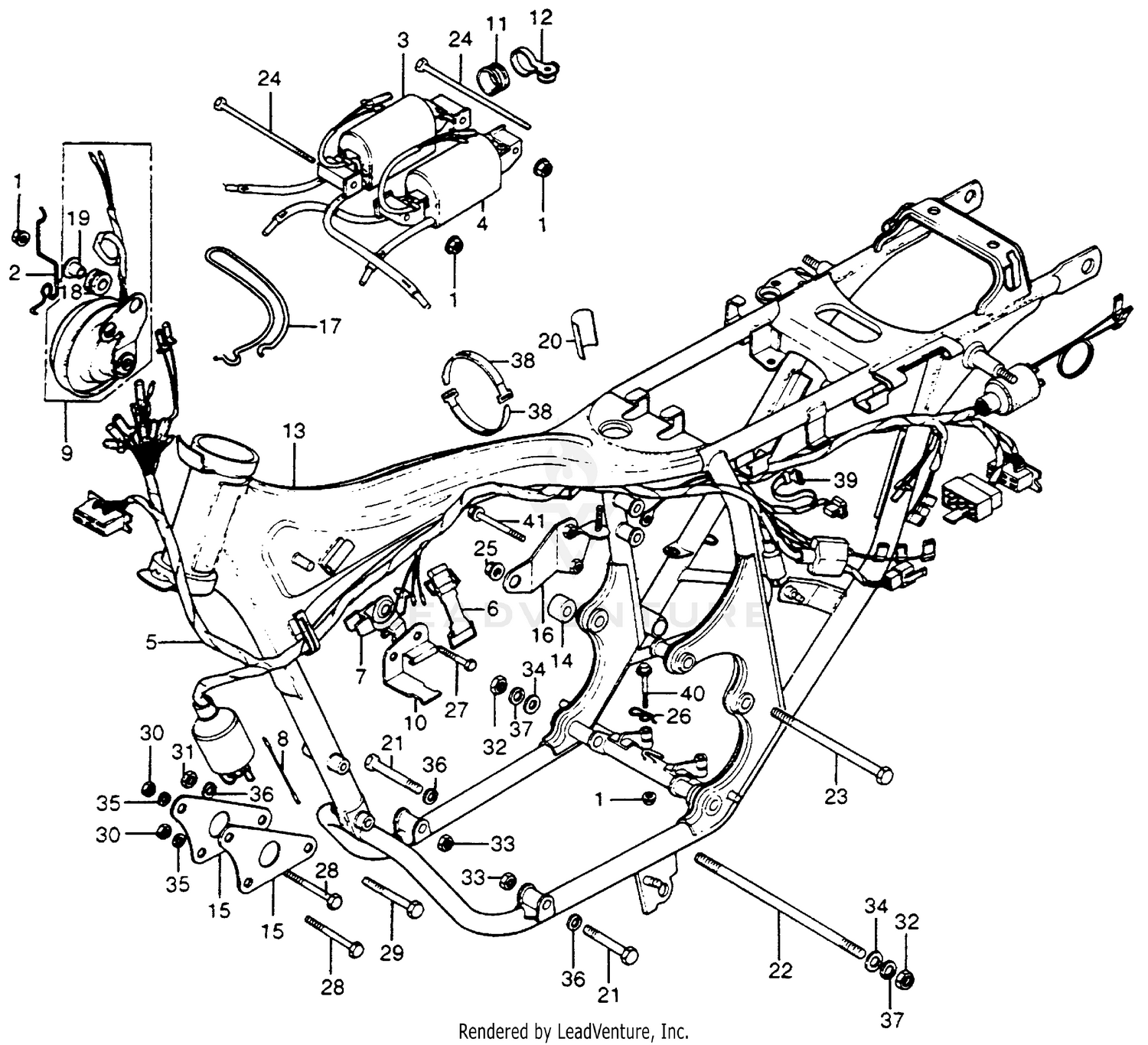

Wire Harness + Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT, FLANGE (6MM)
18362-720-000
Superseded by 94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
Unavailable |
|||
|
#2
CLAMP, CLUTCH CABLE (NOT AVAILABLE)
22872-356-000
|
$16.12 | ||
|
Unavailable |
|||
|
#3
COIL ASSY., R. IGNITION
30510-333-013
|
$113.52 | ||
|
Unavailable |
|||
|
#4
COIL ASSY., L. IGNITION (NOT AVAILABLE)
30520-333-013
|
$102.80 | ||
|
Unavailable |
|||
|
#5
WIRE HARNESS (NOT AVAILABLE)
32100-377-030
|
$154.90 | ||
|
Unavailable |
|||
|
#6
BAND, WIRE HARNESS
32161-377-000
Superseded by 70284-538-010
|
$5.10 | ||
|
Unavailable |
|||
|
#6
BAND, WIRE HARNESS
70284-538-010
|
$5.10 | ||
|
Unavailable |
|||
|
#7
HOLDER, WIRE HARNESS (NOT AVAILABLE)
32174-392-000
|
$11.73 | ||
|
Unavailable |
|||
|
#8
SUB-WIRE HARNESS (NOT AVAILABLE)
32200-377-671
|
$8.76 | ||
|
Unavailable |
|||
|
#9
HORN ASSY. (NOT AVAILABLE)
38100-387-770
|
$53.71 | ||
|
Unavailable |
|||
|
#10
STAY, SPEED UNIT (NOT AVAILABLE)
38555-377-000
|
$10.82 | ||
|
Unavailable |
|||
|
#11
INNER, CABLE GUIDE
45466-329-000
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE A, FR. BRAKE CABLE (NOT AVAILABLE)
45467-329-000
|
$8.42 | ||
|
Unavailable |
|||
|
#13
FRAME *NH1* (BLACK)
50100-377-720ZA
|
$2,353.18 | ||
|
Unavailable |
|||
|
#14
COLLAR, ENGINE SIDE
50329-286-010
|
$3.50 | ||
|
Unavailable |
|||
|
#15
PLATE, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)
50351-377-000B
|
$21.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, RR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)
50356-377-000B
|
$20.57 | ||
|
Unavailable |
|||
|
#17
CLAMP, TACHOMETER CABLE
50462-323-000
Superseded by 50462-323-010
|
$7.08 | ||
|
Unavailable |
|||
|
#17
CLAMP, TACHOMETER CABLE
50462-323-010
|
$7.08 | ||
|
Unavailable |
|||
|
#18
RUBBER, RR. FENDER CUSHION
80101-283-000
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, COVER SETTING
83601-357-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
LABEL, BATTERY CAUTION (NOT AVAILABLE)
87506-377-670
|
$9.71 | ||
|
Unavailable |
|||
|
#21
BOLT (10X74) (NOT AVAILABLE)
90101-377-000
|
$4.26 | ||
|
Unavailable |
|||
|
#22
BOLT, RR. ENGINE HANGER (LOWER) (NOT AVAILABLE)
90107-333-000
|
$37.55 | ||
|
Unavailable |
|||
|
#23
BOLT, RR. ENGINE HANGER (UPPER) (NOT AVAILABLE)
90108-333-000
|
$19.51 | ||
|
Unavailable |
|||
|
#24
BOLT, HEX. (6X130) (NOT AVAILABLE)
90167-333-000
|
$6.71 | ||
|
Unavailable |
|||
|
#25
NUT, HEX. (10MM)
90308-357-000
|
$6.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
GUIDE, BREATHER PIPE (NOT AVAILABLE)
90515-377-000
|
$8.40 | ||
|
Unavailable |
|||
|
#27
BOLT, HEX. (6X28)
92000-06028
Superseded by 92101-06028-0A
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEX. (6X28)
92101-06028-0A
|
$1.33 | ||
|
Unavailable |
|||
|
#28
BOLT, HEX. (8X80)
92000-08080-0A
Superseded by 92180-08080-0A
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEX. (8X80)
92180-08080-0A
|
$2.75 | ||
|
Unavailable |
|||
|
#29
BOLT, HEX. (10X80)
92000-10080-0A
Superseded by 92101-10080-0A
|
$1.52 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, HEX. (10MM)
94001-10000-0S
|
$1.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
NUT, HEX. (12MM)
94001-12200
Superseded by 94001-12200-0S
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, HEX. (12MM)
94001-12200-0S
|
$1.11 | ||
|
Unavailable |
|||
|
#33
NUT, HEX. (10MM)
94030-10000
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLAIN (12MM)
94102-12000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
WASHER, SPRING (10MM)
94111-10000
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
WASHER, SPRING (12MM)
94111-12000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#38
BAND B1, WIRE
32161-404-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#38
BAND B1, CABLE
95014-61100
Superseded by 32161-404-000
|
$2.67 | ||
|
Unavailable |
|||
|
#39
BAND B3, WIRE
95014-62300
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X40)
95700-06040
Superseded by 95701-06040-00
|
$1.97 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X40)
95700-06040-00
Superseded by 95701-06040-00
|
$1.97 | ||
|
Unavailable |
|||
|
#40
BOLT, FLANGE (6X40)
95701-06040-00
|
$1.97 | ||
|
Unavailable |
|||
|
#41
BOLT, FLANGE (8X65)
95700-08065
Superseded by 95701-08065-00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (8X65)
95700-08065-00
Superseded by 95701-08065-00
|
$1.96 | ||
|
Unavailable |
|||
|
#41
BOLT, FLANGE (8X65)
95701-08065-00
|
$1.96 | ||
|
Unavailable |
|||
