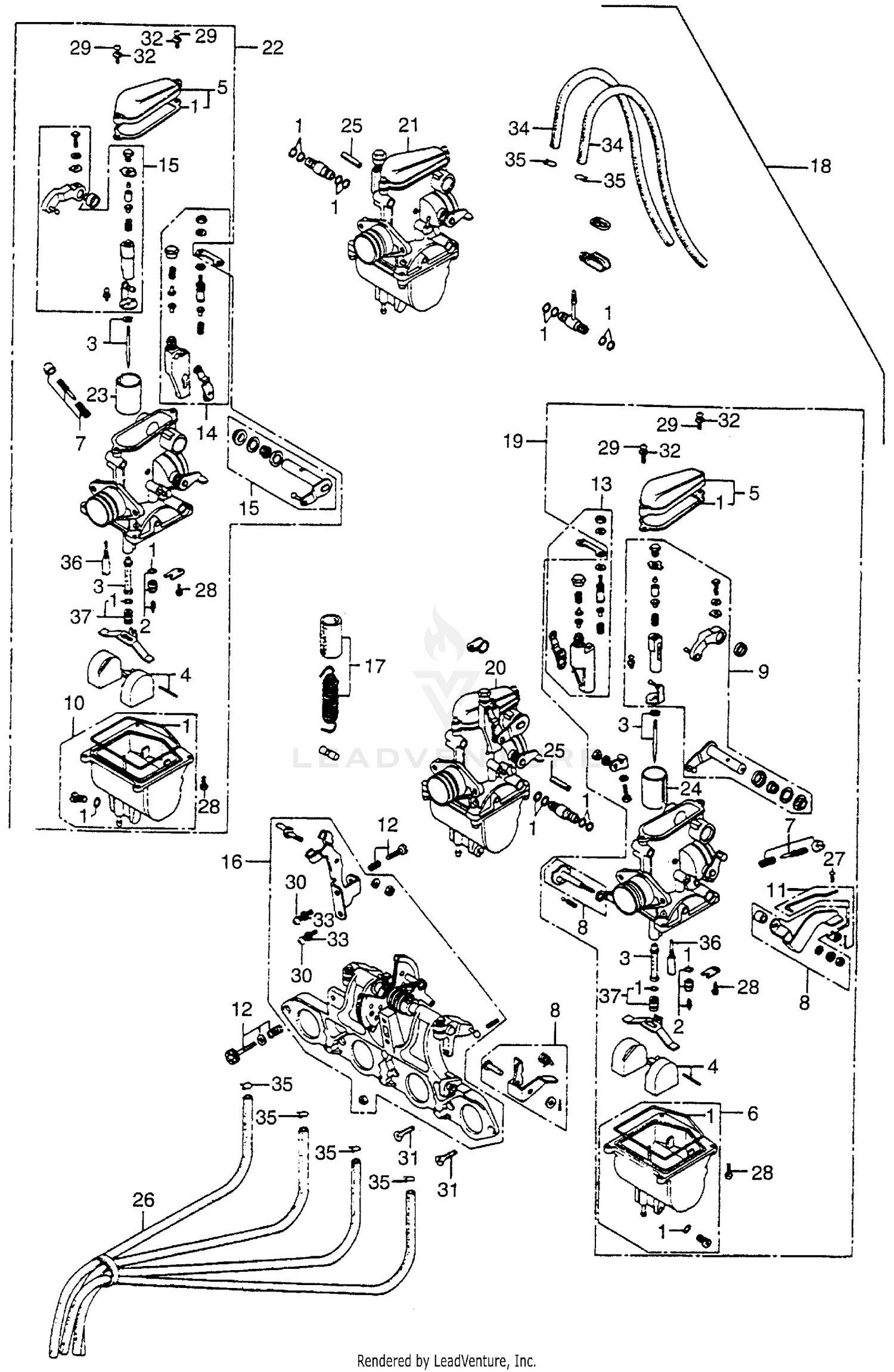

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-333-004
Superseded by 16010-333-315
|
$25.78 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-333-305
Superseded by 16010-333-315
|
$25.78 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-329-004
|
$53.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE SET, JET (KEIHIN)
16012-377-004
|
$24.18 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-333-004
|
$43.63 | ||
|
Unavailable |
|||
|
#5
TOP SET (NOT AVAILABLE)
16014-333-004
|
$21.54 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET A, FLOAT (NOT AVAILABLE)
16015-333-004
|
$63.67 | ||
|
Unavailable |
|||
|
#7
SCREW SET A (KEIHIN) (NOT AVAILABLE)
16016-377-004
|
$5.91 | ||
|
Unavailable |
|||
|
#8
LINK SET (NOT AVAILABLE)
16017-333-004
|
$73.07 | ||
|
Unavailable |
|||
|
#9
ARM SET, LINK (NOT AVAILABLE)
16018-333-004
|
$166.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
CHAMBER SET B, FLOAT (NOT AVAILABLE)
16023-333-004
|
$56.95 | ||
|
Unavailable |
|||
|
#11
ROD SET, CHOKE
16025-333-004
|
$16.90 | ||
|
Unavailable |
|||
|
#12
SCREW SET B (NOT AVAILABLE)
16028-333-004
|
$23.42 | ||
|
Unavailable |
|||
|
#13
HOLDER SET A, ADJ.
16029-323-004
|
$135.33 | ||
|
Unavailable |
|||
|
#14
HOLDER SET B, ADJ. (NOT AVAILABLE)
16030-323-004
|
$88.81 | ||
|
Unavailable |
|||
|
#15
ARM SET B, LINK (NOT AVAILABLE)
16031-333-004
|
$170.52 | ||
|
Unavailable |
|||
|
#16
PLATE SET, STAY (NOT AVAILABLE)
16035-333-004
|
$459.22 | ||
|
Unavailable |
|||
|
#17
TUBE SET, PROTECT
16036-323-004
|
$15.68 | ||
|
Unavailable |
|||
|
#18
CARBURETOR ASSY. (KEIHIN) (NOT AVAILABLE)
16100-377-004
|
$1,857.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
CARBURETOR ASSY. 1 (KEIHIN) (NOT AVAILABLE)
16101-377-004
|
$341.91 | ||
|
Unavailable |
|||
|
#20
CARBURETOR ASSY. 2 (KEIHIN) (NOT AVAILABLE)
16102-377-004
|
$338.68 | ||
|
Unavailable |
|||
|
#21
CARBURETOR ASSY. 3 (KEIHIN) (NOT AVAILABLE)
16103-377-004
|
$338.62 | ||
|
Unavailable |
|||
|
#22
CARBURETOR ASSY. 4 (KEIHIN) (NOT AVAILABLE)
16104-377-004
|
$338.62 | ||
|
Unavailable |
|||
|
#23
VALVE A, THROTTLE (NOT AVAILABLE)
16111-333-004
|
$78.98 | ||
|
Unavailable |
|||
|
#24
VALVE B, THROTTLE (NOT AVAILABLE)
16112-333-004
|
$78.98 | ||
|
Unavailable |
|||
|
#25
TUBE, FUEL (2.5X16) (NOT AVAILABLE)
16199-333-004
|
$3.55 | ||
|
Unavailable |
|||
|
#26
TUBE, OVERFLOW (NOT AVAILABLE)
16290-333-000
|
$30.79 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN (3X6)
93500-03006-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN (4X10)
93500-04010-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (5X16)
93500-05016-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN (6X16)
93500-06016
Superseded by 93500-06016-0A
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN (6X16)
93500-06016-0A
|
$1.20 | ||
|
Unavailable |
|||
|
#31
SCREW, FLAT (6X16)
93600-06016
Superseded by 93600-06016-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, FLAT (6X16)
93600-06016-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING (5MM)
94111-05000
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BULK HOSE, FUEL (3.5X3000) (3.5X600)
95001-35003-60M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#36
JET, SLOW (#38)
99124-076-0380
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#36
JET, SLOW (#40)
99124-076-0400
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#36
JET, SLOW (#42)
99124-076-0420
|
$7.30 | ||
|
Unavailable |
|||
|
#37
JET SET, MAIN (#72) (NOT AVAILABLE)
99202-601-0720
|
$7.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
JET SET, MAIN (#75)
99202-601-0750
|
$5.20 | ||
|
Unavailable |
|||
|
#37
JET SET, MAIN (#78)
99202-601-0780
|
$5.20 | ||
|
Unavailable |
|||
