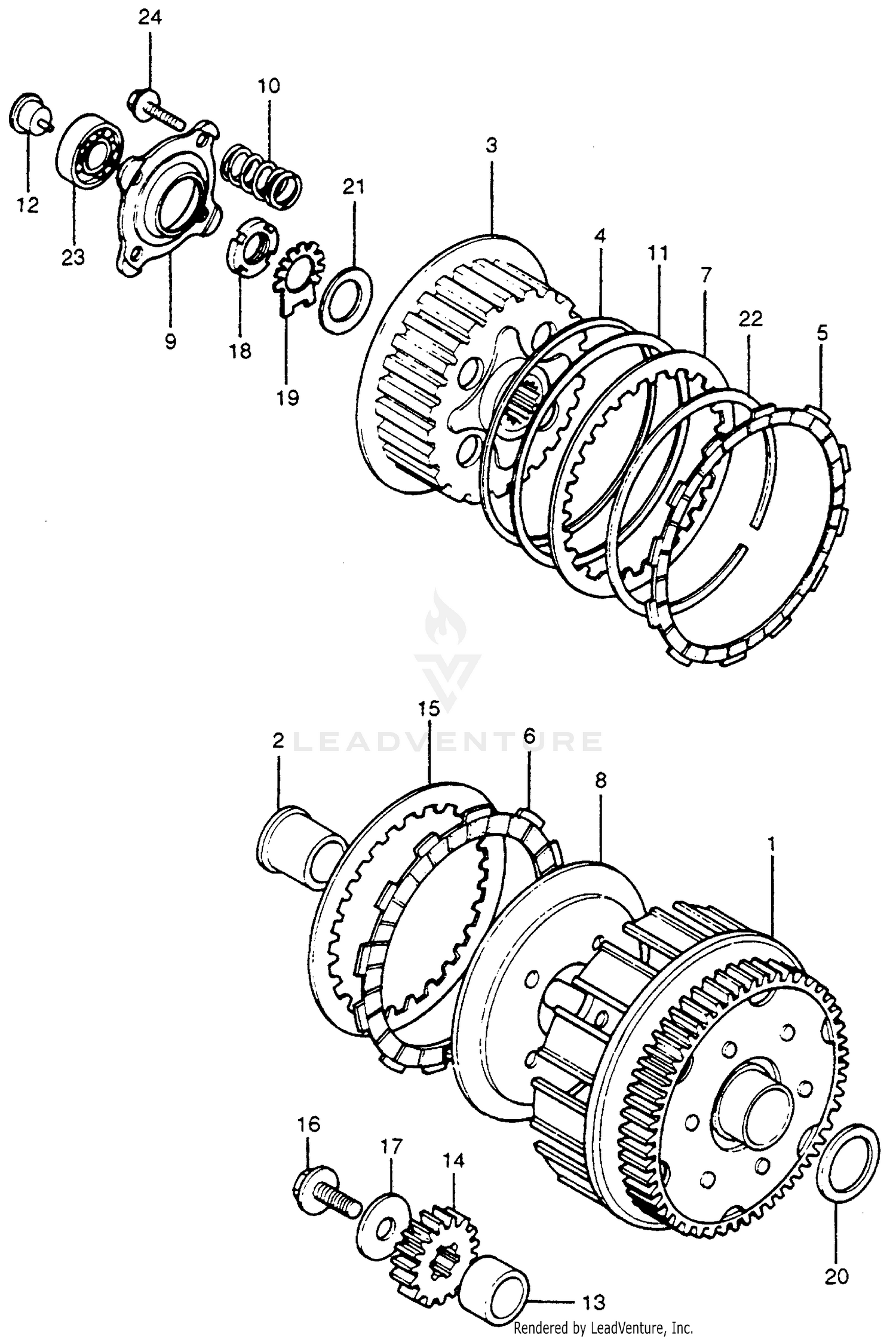

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH (OUTER) (NOT AVAILABLE)
22100-377-000
|
$457.51 | ||
|
Unavailable |
|||
|
#2
COLLAR (25MM) (NOT AVAILABLE)
22116-333-020
|
$21.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
CENTER, CLUTCH (NOT AVAILABLE)
22120-377-000
|
$119.58 | ||
|
Unavailable |
|||
|
#4
SEAT, DISK SPRING
22125-333-000
|
$5.29 | ||
|
Unavailable |
|||
|
#5
DISK B, CLUTCH FRICTION
22201-302-000
Superseded by 22202-ML4-611
|
$21.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISK B, CLUTCH FRICTION
22202-ML4-610
Superseded by 22202-ML4-611
|
$21.96 | ||
|
Unavailable |
|||
|
#5
DISK B, CLUTCH FRICTION
22202-ML4-611
|
$21.96 | ||
|
Unavailable |
|||
|
#6
DISK, CLUTCH FRICTION
22201-ML4-610
|
$19.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, CLUTCH FRICTION
22201-377-000
Superseded by 22201-ML4-610
|
$19.87 | ||
|
Unavailable |
|||
|
#7
PLATE B, CLUTCH
22321-333-010
|
$12.85 | ||
|
Unavailable |
|||
|
#8
PLATE, CLUTCH PRESSURE (NOT AVAILABLE)
22350-333-010
|
$63.80 | ||
|
Unavailable |
|||
|
#9
PLATE, CLUTCH LIFTER (NOT AVAILABLE)
22361-377-000
|
$21.94 | ||
|
Unavailable |
|||
|
#10
SPRING, CLUTCH
22401-275-000
Superseded by 22401-323-003
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, CLUTCH
22401-323-000
Superseded by 22401-323-003
|
$9.67 | ||
|
Unavailable |
|||
|
#10
SPRING, CLUTCH
22401-323-003
|
$9.67 | ||
|
Unavailable |
|||
|
#10
SPRING, CLUTCH
22401-369-000
Superseded by 22401-323-003
|
$9.67 | ||
|
Unavailable |
|||
|
#11
SPRING, DISK
22402-333-003
|
$34.54 | ||
|
Unavailable |
|||
|
#12
PIECE, CLUTCH LIFTER (NOT AVAILABLE)
22846-300-000
Superseded by 22846-300-010
|
$6.78 | ||
|
Unavailable |
|||
|
#12
PIECE, CLUTCH LIFTER (NOT AVAILABLE)
22846-300-010
|
$6.78 | ||
|
Unavailable |
|||
|
#13
COLLAR (25X16.5) (NOT AVAILABLE)
23104-377-000
|
$20.94 | ||
|
Unavailable |
|||
|
#14
GEAR, SECONDARY DRIVE (23T) (NOT AVAILABLE)
23108-333-020
|
$113.63 | ||
|
Unavailable |
|||
|
#15
PLATE A, CLUTCH
23311-200-000
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, UBS (12X30)
90013-333-010
|
$8.89 | ||
|
Unavailable |
|||
|
#17
WASHER, PRIMARY SHAFT LOCK (NOT AVAILABLE)
90201-333-020
|
$8.62 | ||
|
Unavailable |
|||
|
#18
NUT, LOCK (16MM)
90231-KCS-651
|
$5.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, LOCK (16MM)
90231-200-010
Superseded by 90231-KCS-651
|
$5.27 | ||
|
Unavailable |
|||
|
#19
WASHER, SPRING (16MM)
90431-292-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER A, THRUST (25MM) (NOT AVAILABLE)
90455-333-010
Superseded by 90466-MC7-000
|
$4.65 | ||
|
Unavailable |
|||
|
#21
WASHER (16MM) (NOT AVAILABLE)
90481-292-000
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
SET-RING, SPECIAL (92MM) (NOT AVAILABLE)
90609-333-000
|
$17.93 | ||
|
Unavailable |
|||
|
#23
BEARING, RADIAL BALL (16003)
91008-KK6-000
Superseded by 91011-KK6-013
|
$18.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (16003)
91008-362-000
Superseded by 91011-KK6-013
|
$18.67 | ||
|
Unavailable |
|||
|
#23
BEARING, RADIAL BALL (16003)
91010-HC0-003
Superseded by 91011-KK6-013
|
$18.67 | ||
|
Unavailable |
|||
|
#23
BEARING, RADIAL BALL (16003)
91011-KK6-013
|
$18.67 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X20)
95700-06020
Superseded by 95701-06020-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X20)
95700-06020-00
Superseded by 95701-06020-00
|
$1.85 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X20)
95900-06020-00
Superseded by 95701-06020-00
|
$1.85 | ||
|
Unavailable |
|||
