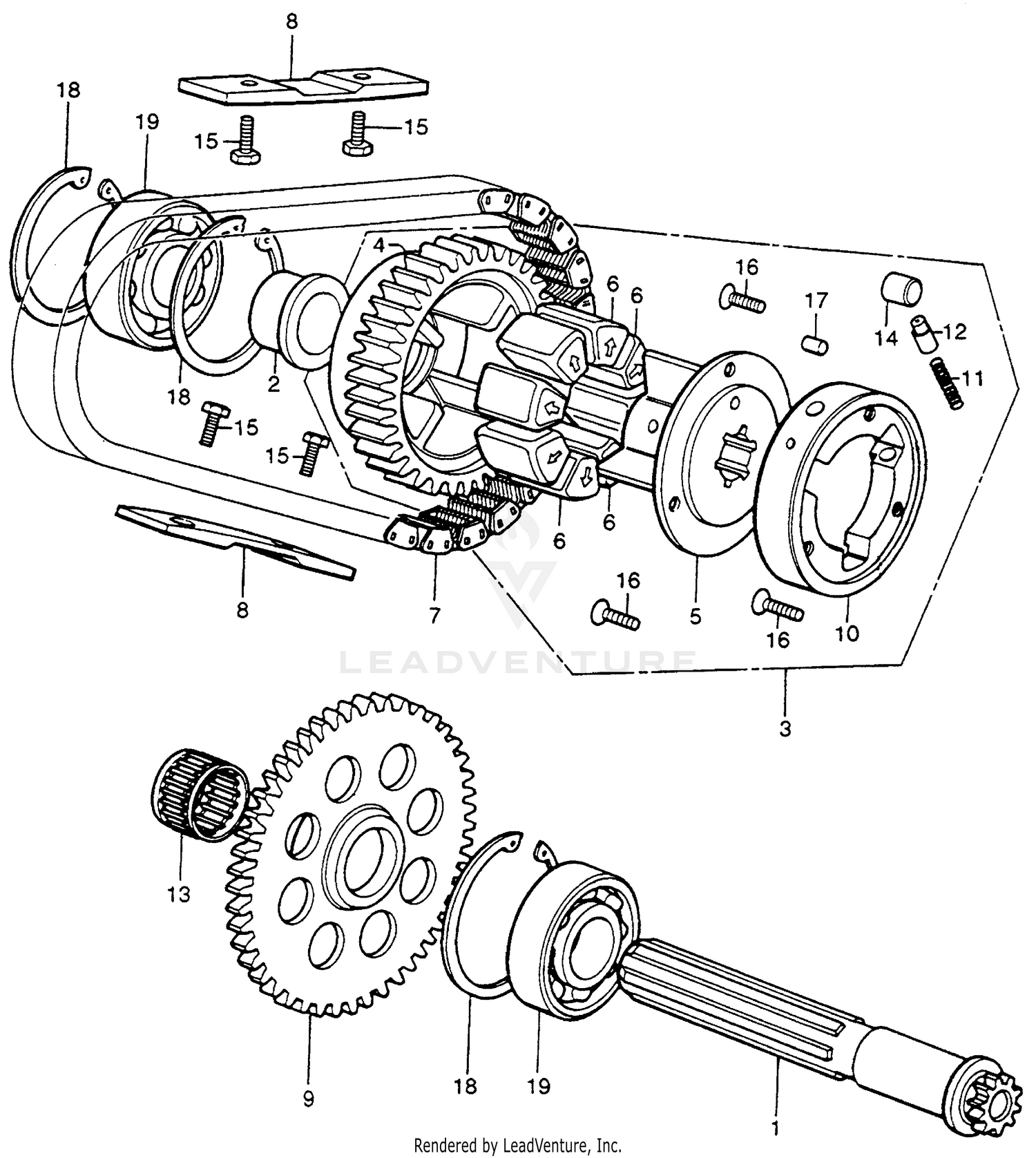

Primary Shaft + Primary Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, PRIMARY (NOT AVAILABLE)
23101-377-000
|
$220.89 | ||
|
Unavailable |
|||
|
#2
COLLAR (25X31.8)
23102-377-000
|
$23.97 | ||
|
Unavailable |
|||
|
#3
SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)
23110-377-000
|
$356.79 | ||
|
Unavailable |
|||
|
#4
SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)
23111-333-000
|
$167.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB, DRIVEN SPROCKET (NOT AVAILABLE)
23112-377-700
|
$149.90 | ||
|
Unavailable |
|||
|
#6
RUBBER, DAMPER
23114-323-000
|
$4.56 | ||
|
Unavailable |
|||
|
#7
CHAIN, PRIMARY DRIVE (50L) (TSUBAKIMOTO)
23131-323-003
Superseded by 23131-426-003
|
$150.29 | ||
|
Unavailable |
|||
|
#7
CHAIN, PRIMARY DRIVE (50L) (TSUBAKIMOTO)
23131-426-003
|
$150.29 | ||
|
Unavailable |
|||
|
#8
GUIDE, PRIMARY CHAIN (NOT AVAILABLE)
23132-333-010
|
$11.81 | ||
|
Unavailable |
|||
|
#9
GEAR, STARTER DRIVEN (NOT AVAILABLE)
28111-333-310
|
$100.54 | ||
|
Unavailable |
|||
|
#10
CLUTCH, STARTER (OUTER) (NOT AVAILABLE)
28120-377-000
|
$171.68 | ||
|
Unavailable |
|||
|
#11
SPRING, STARTING CLUTCH ROLLER
28125-253-020
|
$7.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, STARTING CLUTCH ROLLER SPRING
28126-253-030
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, NEEDLE (25X29X17) (KOYO) (NOT AVAILABLE)
91029-357-004
Superseded by 91007-426-004
|
$18.86 | ||
|
Unavailable |
|||
|
#14
ROLLER (10.2X11.5)
91101-377-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#15
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#16
SCREW, FLAT (6X14)
93600-06014
Superseded by 93600-06014-0A
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, FLAT (6X14)
93600-06014-0A
|
$1.10 | ||
|
Unavailable |
|||
|
#17
PIN B, DOWEL (6X10)
94302-06100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP (INNER) (52MM)
94520-52000
|
$3.28 | ||
|
Unavailable |
|||
|
#19
BEARING, RADIAL BALL (6205)
96100-62050
Superseded by 96100-62050-00
|
$22.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, RADIAL BALL (6205)
96100-62050-00
|
$22.58 | ||
|
Unavailable |
|||
|
#19
BEARING, RADIAL BALL (6205)
96100-62050-10
|
$24.87 | ||
|
Available to order. Add to View Price |
|||
