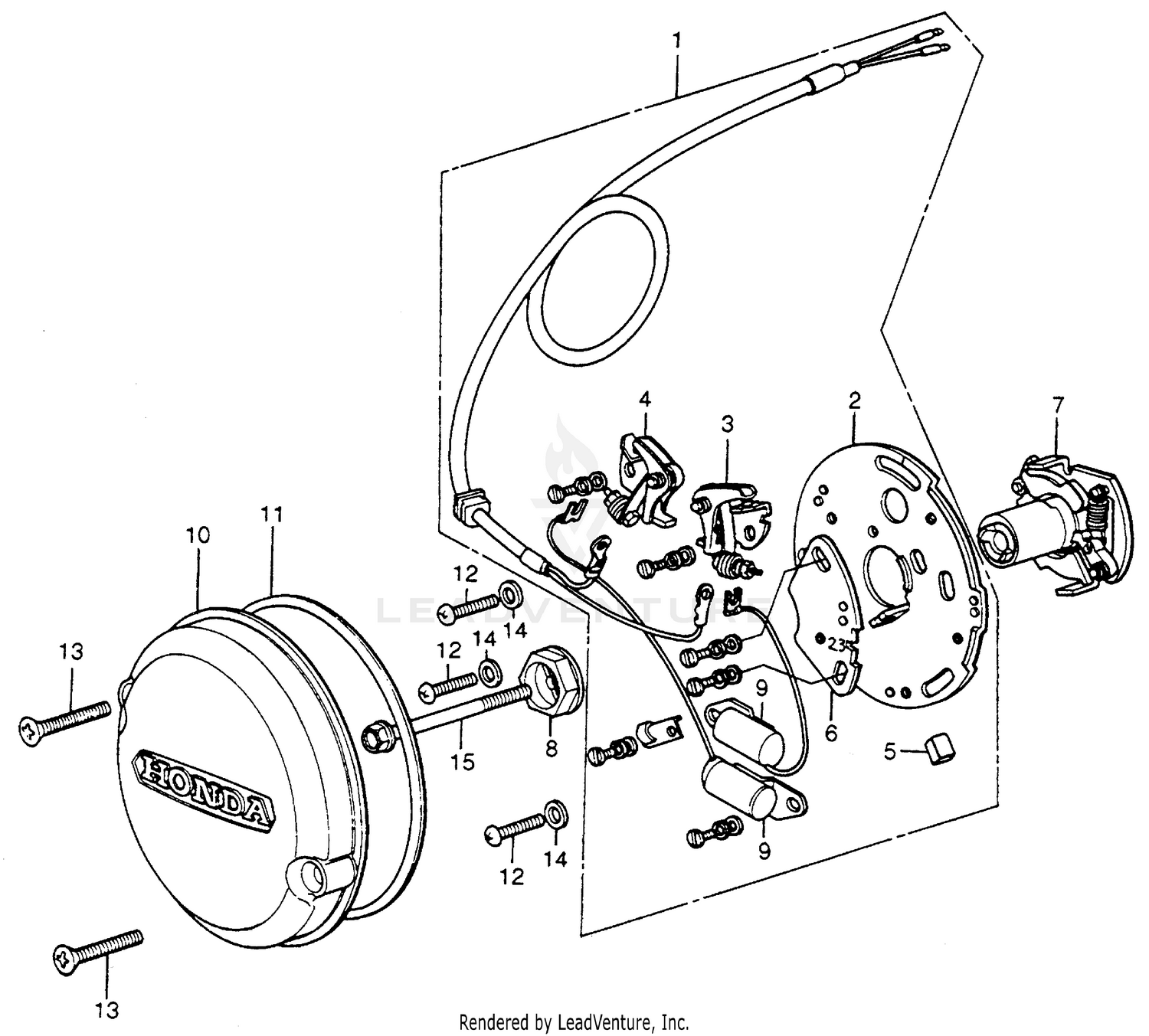

Points + Spark Advancer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
POINTS ASSY. (DENSO) (NOT AVAILABLE)
30200-333-004
|
$95.49 | ||
|
Unavailable |
|||
|
#2
PLATE, POINTS BASE (TOYO) (NOT AVAILABLE)
30201-333-004
|
$14.82 | ||
|
Unavailable |
|||
|
#3
POINTS, R. (DENSO)
30203-333-004
|
$19.41 | ||
|
Unavailable |
|||
|
#4
POINTS, L. (DENSO)
30204-333-004
|
$19.41 | ||
|
Unavailable |
|||
|
#5
FELT, OIL (DENSO) (NOT AVAILABLE)
30205-333-004
|
$1.87 | ||
|
Unavailable |
|||
|
#6
PLATE, POINTS SHIFT (DENSO) (NOT AVAILABLE)
30215-333-004
|
$8.10 | ||
|
Unavailable |
|||
|
#7
ADVANCER ASSY., SPARK (DENSO) (NOT AVAILABLE)
30220-333-004
|
$54.84 | ||
|
Unavailable |
|||
|
#8
WASHER, ADVANCER SPECIAL
30233-333-000
|
$12.19 | ||
|
Unavailable |
|||
|
#9
CONDENSER (DENSO)
30250-333-004
|
$21.86 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, POINTS
30370-323-000
|
$103.34 | ||
|
Unavailable |
|||
|
#11
GASKET, POINT COVER
30372-300-300
|
$9.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW, PAN (5X14)
93500-05014-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#13
SCREW, OVAL (6X30) (SOURCE: VINTAGE PARTS INC.)
93700-06030
|
$0.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN (5MM)
94101-05000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X55)
95800-06055
Superseded by 95801-06055-00
|
$1.41 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (6X55)
95800-06055-00
Superseded by 95801-06055-00
|
$1.41 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (6X55)
95801-06055-00
|
$1.41 | ||
|
Unavailable |
|||
