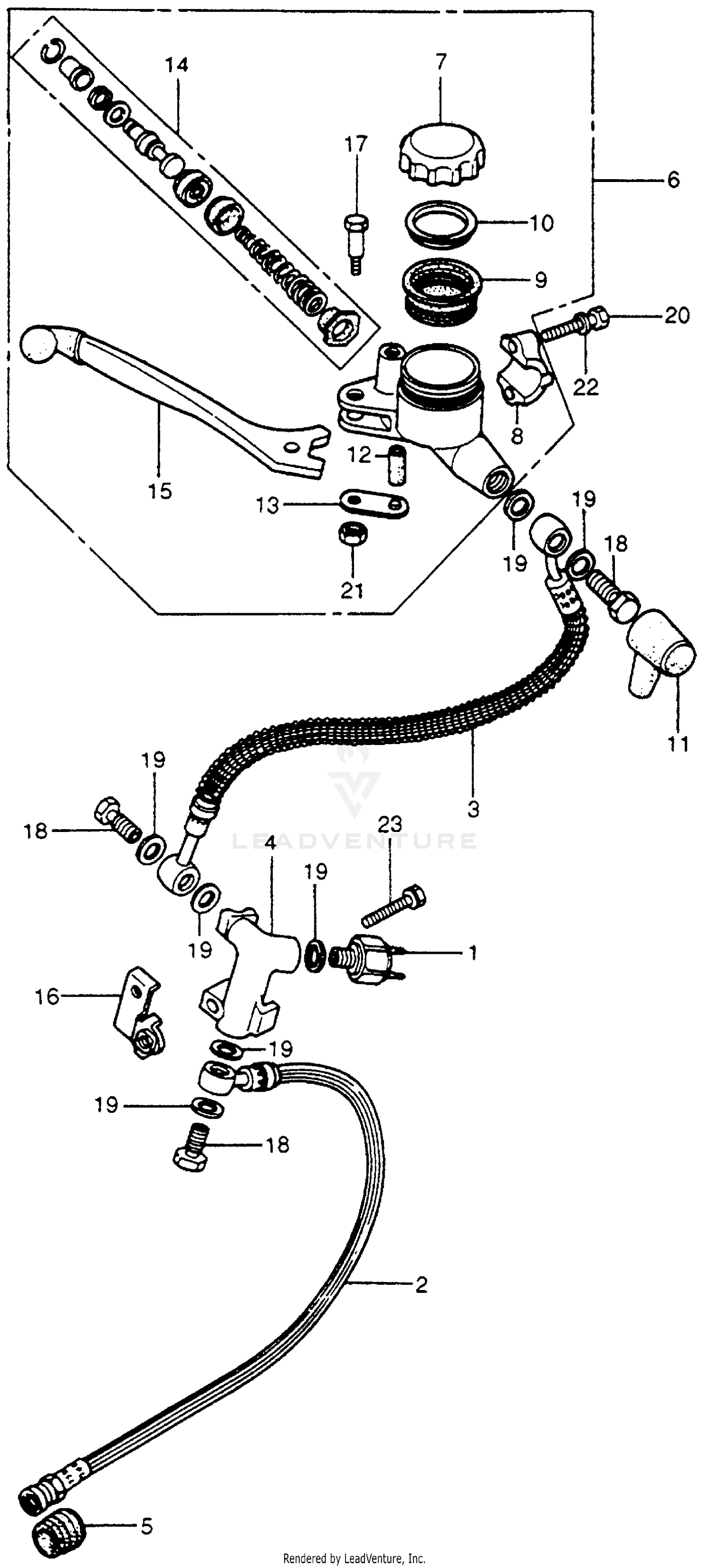

Master Cylinder + Front Brake Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH, STOP (NOT AVAILABLE)
35350-300-016
|
$19.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE A, FR. BRAKE (NICHIRIN)
45125-300-003
|
$50.72 | ||
|
Unavailable |
|||
|
#2
HOSE A, FR. BRAKE (NICHIRIN)
45125-300-020
Superseded by 45125-300-003
|
$50.72 | ||
|
Unavailable |
|||
|
#3
HOSE B, FR. BRAKE (NOT AVAILABLE)
45126-390-003
|
$28.95 | ||
|
Unavailable |
|||
|
#4
JOINT (THREE-WAY) (NOT AVAILABLE)
45127-323-000
|
$31.82 | ||
|
Unavailable |
|||
|
#5
GROMMET, BRAKE HOSE
45146-300-000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
MASTER CYLINDER ASSY. (NOT AVAILABLE)
45500-369-671
|
$154.22 | ||
|
Unavailable |
|||
|
#7
CAP, OIL CUP
43513-MJ6-006
|
$26.26 | ||
|
Unavailable |
|||
|
#7
CAP, OIL CUP
43513-461-771
Superseded by 43513-MJ6-006
|
$26.26 | ||
|
Unavailable |
|||
|
#7
CAP, OIL CUP
45513-341-771
Superseded by 43513-MJ6-006
|
$26.26 | ||
|
Unavailable |
|||
|
#8
HOLDER, MASTER CYLINDER
45517-MA5-671
|
$35.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, MASTER CYLINDER
45517-300-003
Superseded by 45517-MA5-671
|
$35.51 | ||
|
Unavailable |
|||
|
#9
DIAPHRAGM
45520-300-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, DIAPHRAGM
45521-MJ6-006
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, DIAPHRAGM
45521-300-010
Superseded by 45521-MJ6-006
|
$5.09 | ||
|
Unavailable |
|||
|
#11
BOOT, MASTER CYLINDER
45522-300-010
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, R. HANDLEBAR CONTROL LEVER
45526-341-000
|
$4.39 | ||
|
Unavailable |
|||
|
#13
PLATE, CONTROL LEVER BUSH SETTING
45527-300-000
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#14
MASTER CYLINDER SET
45530-377-305
|
$75.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER, R. HANDLEBAR
53170-369-003
Superseded by 53175-369-003
|
$33.92 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER, R. HANDLEBAR
53175-369-003
|
$33.92 | ||
|
Unavailable |
|||
|
#16
HOLDER, JOINT (THREE-WAY) (NOT AVAILABLE)
53208-369-000
|
$10.94 | ||
|
Unavailable |
|||
|
#17
BOLT, HANDLEBAR LEVER PIVOT
90114-300-000
|
$10.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, OIL
90145-300-000
Superseded by 90145-300-010
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, OIL
90145-300-010
|
$11.73 | ||
|
Unavailable |
|||
|
#19
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, HEX. (6X25)
92000-06025
Superseded by 92101-06025-0A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, HEX. (6X25)
92101-06025-0A
|
$1.70 | ||
|
Unavailable |
|||
|
#21
NUT, HEX. (6MM)
94002-06000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#22
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X25)
95700-06025
Superseded by 95701-06025-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X25)
95700-06025-00
Superseded by 95701-06025-00
|
$1.88 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X25)
95900-06025-00
Superseded by 95701-06025-00
|
$1.88 | ||
|
Unavailable |
|||
