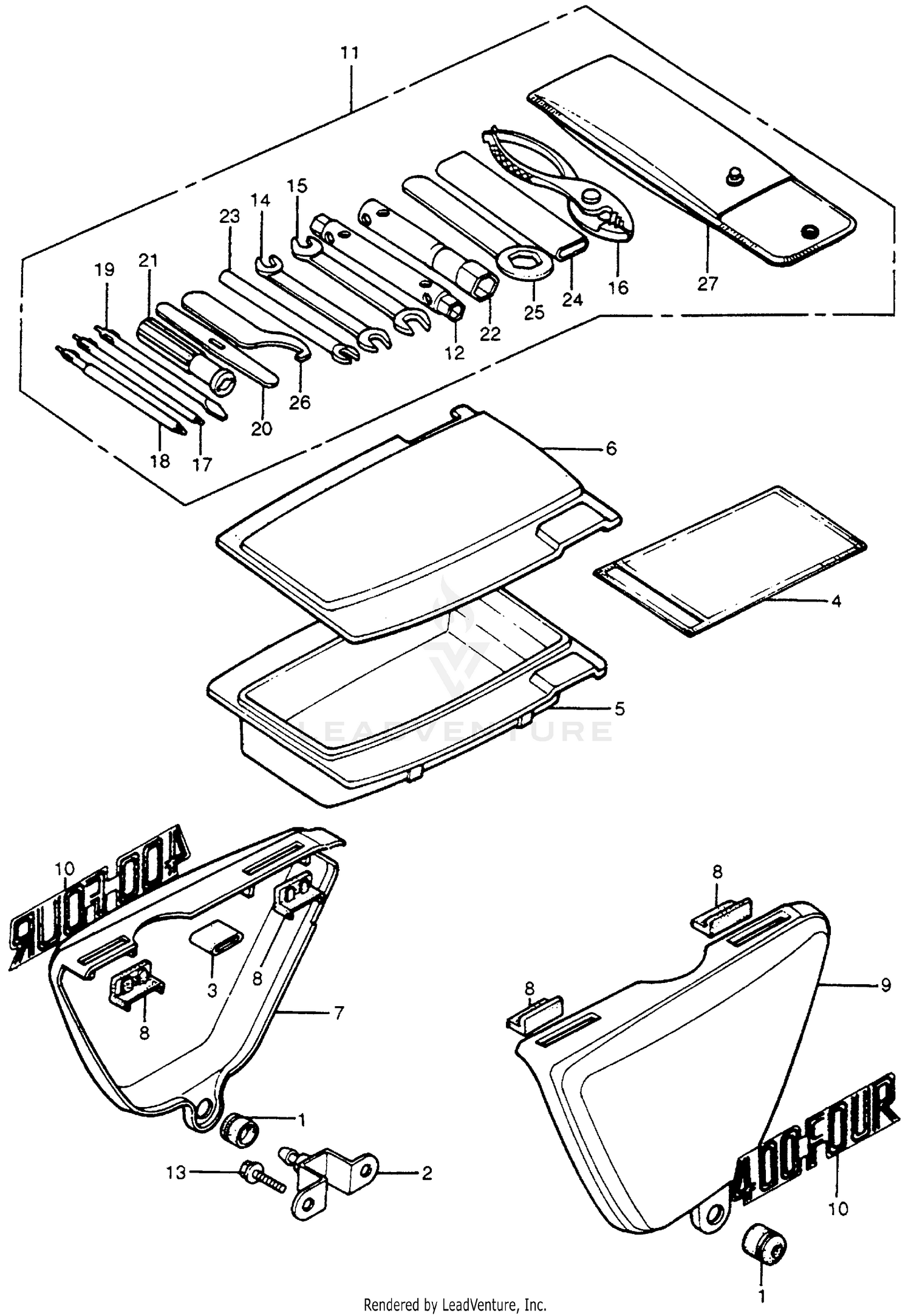

Side Cover + Tools Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
WRENCH, EYE (19MM)
99006-19000
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#1
GROMMET, SIDE COVER
17245-369-000
|
$9.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SIDE COVER (NOT AVAILABLE)
17253-377-000
|
$19.05 | ||
|
Unavailable |
|||
|
#3
RUBBER B, BATTERY MOUNTING
31503-044-670
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAG, SERVICE BOOK
77251-342-000
Superseded by 77251-GR1-000
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
TRAY, TOOL (NOT AVAILABLE)
83501-333-020
|
$47.16 | ||
|
Unavailable |
|||
|
#6
LID, TOOL TRAY (NOT AVAILABLE)
83502-333-000
|
$16.83 | ||
|
Unavailable |
|||
|
#7
COVER, R. SIDE *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)
83600-377-000ZA
|
$74.55 | ||
|
Unavailable |
|||
|
#7
COVER, R. SIDE *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)
83600-377-000ZB
|
$74.55 | ||
|
Unavailable |
|||
|
#8
GROMMET, SIDE COVER
83621-333-000
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, L. SIDE *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)
83700-377-000ZA
|
$74.55 | ||
|
Unavailable |
|||
|
#9
COVER, L. SIDE *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)
83700-377-000ZB
|
$74.56 | ||
|
Unavailable |
|||
|
#10
EMBLEM, SIDE COVER *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)
87128-377-720ZA
|
$22.47 | ||
|
Unavailable |
|||
|
#10
EMBLEM, SIDE COVER *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)
87128-377-720ZB
|
$30.03 | ||
|
Unavailable |
|||
|
#11
TOOL SET (NOT AVAILABLE)
89010-377-000
|
$68.22 | ||
|
Unavailable |
|||
|
#12
WRENCH, BOX (10X12) (NOT AVAILABLE)
89216-333-000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X14)
95700-06014
Superseded by 95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X14)
95700-06014-00
Superseded by 95701-06014-00
|
$1.15 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.15 | ||
|
Unavailable |
|||
|
#14
SPANNER (10X12)
99001-10120
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPANNER (14X17)
99001-14170
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLIERS (135) (KOWA)
89210-GBJ-J10
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLIERS (135) (KOWA)
99002-13500
Superseded by 89210-GBJ-J10
|
$16.45 | ||
|
Unavailable |
|||
|
#17
DRIVER 1, PLUS SCREW (NO.2)
99003-10000
|
$4.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
DRIVER 2, PLUS SCREW (NO.3)
99003-20000
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#19
DRIVER 3, MINUS SCREW (NO.2)
99003-30000
|
$4.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
LEVER
99003-40000
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
GRIP, SCREW DRIVER
99003-50000
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#22
WRENCH, BOX (P18)
99004-18002
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAR B, HANDLE
99005-02000
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#24
HANDLE, EYE WRENCH (12MM)
99006-12000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
WRENCH, EYE (22MM)
99006-22000
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPANNER, PIN
99007-45000
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
BAG, TOOL
89101-ME5-670
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#27
BAG, TOOL
99008-02000
Superseded by 89101-ME5-670
|
$7.14 | ||
|
Unavailable |
|||
