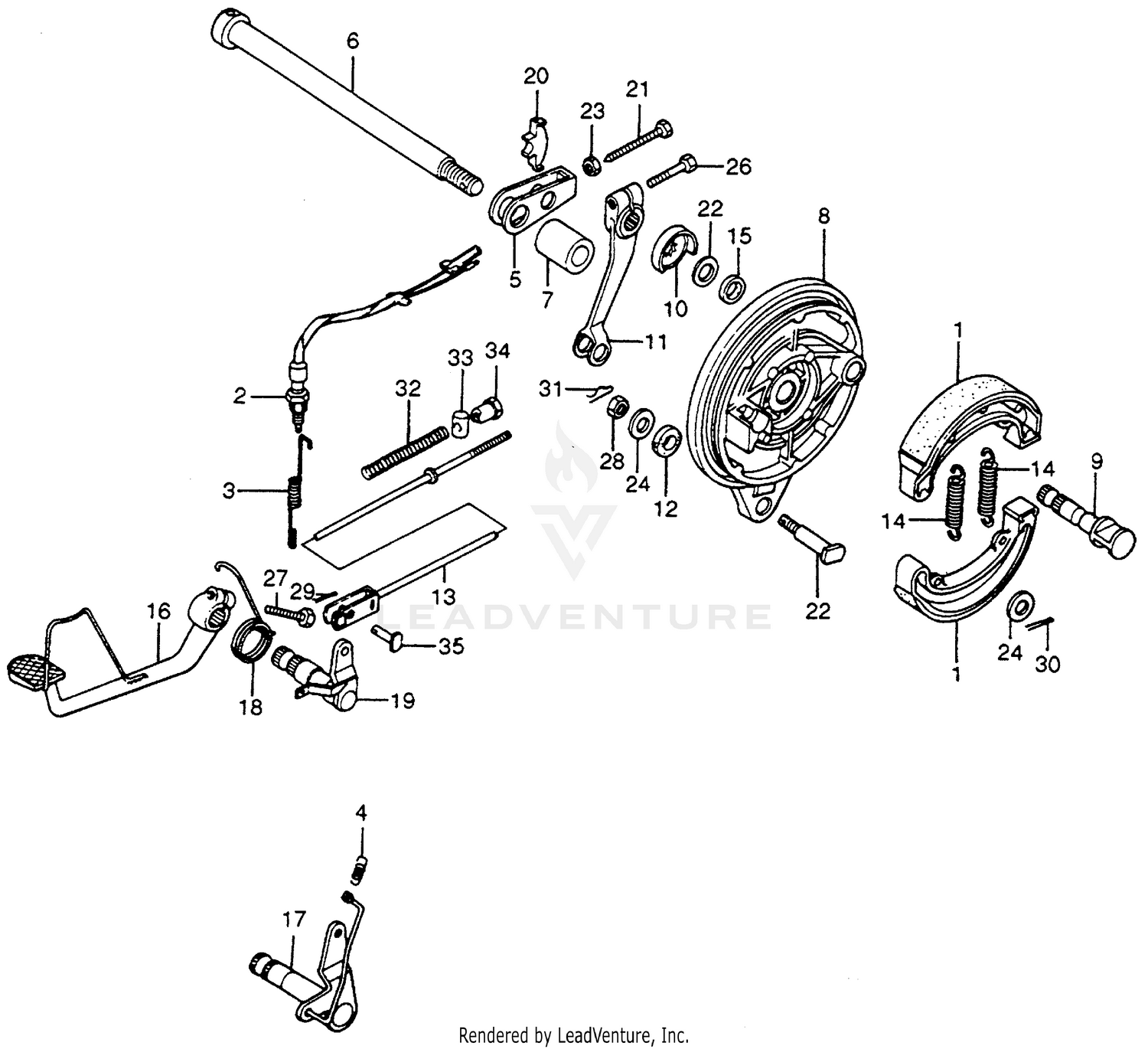

Brake Pedal + Brake Panel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
SHOE SET, RR. BRAKE
06430-HC4-671
Superseded by 06430-HM5-A80
|
$44.58 | ||
|
Available to order. Add to View Price |
|||
|
#NI
SHOE SET, RR. BRAKE
06430-HC4-901
Superseded by 06430-HM5-A80
|
$44.58 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, RR. BRAKE
06430-HM5-A80
|
$44.58 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, RR. BRAKE
431A2-KG4-006
Superseded by 06430-HM5-A80
|
$44.58 | ||
|
Unavailable |
|||
|
#1
SHOE, RR. BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)
43120-369-670
Superseded by 43120-KG4-006
|
$11.08 | ||
|
Unavailable |
|||
|
#2
SWITCH ASSY., RR. STOP
35350-KC5-000
Superseded by 35350-MA1-405
|
$22.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH ASSY., RR. STOP
35350-KC5-010
Superseded by 35350-MA1-405
|
$22.02 | ||
|
Unavailable |
|||
|
#2
SWITCH ASSY., RR. STOP
35350-MA1-405
|
$22.02 | ||
|
Unavailable |
|||
|
#2
SWITCH ASSY., RR. STOP
35350-385-701
Superseded by 35350-MA1-405
|
$22.02 | ||
|
Unavailable |
|||
|
#4
SPRING, STOP SWITCH (NOT AVAILABLE)
35357-377-720
|
$4.72 | ||
|
Unavailable |
|||
|
#5
ADJUSTER, DRIVE CHAIN
40543-312-010
Superseded by 40543-471-000
|
$18.64 | ||
|
Unavailable |
|||
|
#5
ADJUSTER, DRIVE CHAIN
40543-471-000
|
$18.64 | ||
|
Unavailable |
|||
|
#6
AXLE, RR. WHEEL (NOT AVAILABLE)
42301-286-020
|
$67.18 | ||
|
Unavailable |
|||
|
#7
COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)
42313-369-000
|
$25.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
PANEL, RR. BRAKE (NOT AVAILABLE)
43100-388-000
|
$199.25 | ||
|
Unavailable |
|||
|
#9
CAM, RR. BRAKE (NOT AVAILABLE)
43141-388-000
|
$30.99 | ||
|
Unavailable |
|||
|
#10
INDICATOR, RR. BRAKE (NOT AVAILABLE)
43145-388-000
|
$11.48 | ||
|
Unavailable |
|||
|
#12
RUBBER, STOPPER ARM CUSHION
43434-286-000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, RR. BRAKE (NOT AVAILABLE)
43451-369-000
|
$13.06 | ||
|
Unavailable |
|||
|
#14
SPRING, FR. BRAKE SHOE
45133-329-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUST SEAL, BRAKE CAM
45134-250-000
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
PEDAL, BRAKE (NOT AVAILABLE)
46500-377-720
|
$234.12 | ||
|
Unavailable |
|||
|
#17
SHAFT ASSY., RR. BRAKE PIVOT
46510-377-720
|
$53.22 | ||
|
Unavailable |
|||
|
#18
SPRING, BRAKE PEDAL (NOT AVAILABLE)
46514-377-000
|
$21.96 | ||
|
Unavailable |
|||
|
#20
STOPPER, CHAIN ADJUSTER (NOT AVAILABLE)
52136-333-000
|
$11.25 | ||
|
Unavailable |
|||
|
#21
BOLT, CHAIN ADJUSTING
90119-283-000
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)
90127-283-000
|
$7.13 | ||
|
Unavailable |
|||
|
#23
NUT, CHAIN ADJUSTING
90307-283-000
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER A, HANDLE HOLDER SETTING
90524-030-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (14MM)
90549-121-000
|
$1.11 | ||
|
Unavailable |
|||
|
#26
BOLT, HEX. (8X25)
92000-08025-0A
Superseded by 92101-08025-0A
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEX. (8X25)
92101-08025-0A
|
$1.82 | ||
|
Unavailable |
|||
|
#27
BOLT, HEX. (8X28)
92000-08028-0A
Superseded by 92101-08028-0A
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, HEX. (8X28)
92101-08028-0A
|
$1.88 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PIN, SPLIT (1.6X12)
94201-16120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PIN, SPLIT (2.0X35)
94201-20350
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
PIN, LOCK (8MM)
94251-08000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING A, BRAKE ROD
95014-73100
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING A, BRAKE ROD
95014-73300
Superseded by 95014-73100
|
$1.47 | ||
|
Unavailable |
|||
|
#33
JOINT B, BRAKE ARM
95015-32001
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
NUT B, BRAKE ROD ADJUSTING
95015-42000
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
PIN B, BRAKE ROD JOINT
95015-52000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
