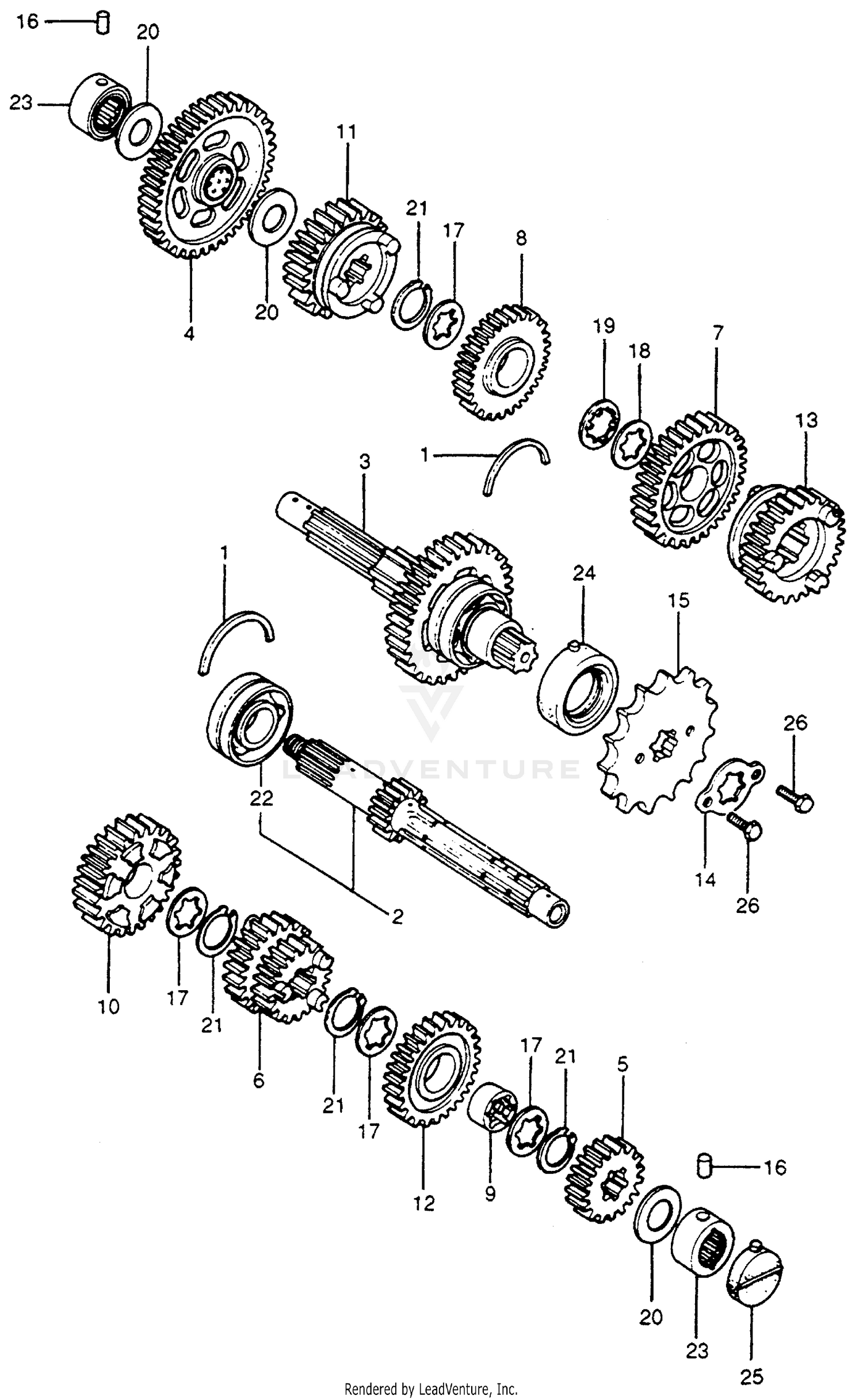

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SET-RING (520)
13492-283-000
Superseded by 95015-25200
|
$1.68 | ||
|
Unavailable |
|||
|
#1
SET-RING (520)
95015-25200
|
$1.68 | ||
|
Unavailable |
|||
|
#2
MAINSHAFT (24T) (NOT AVAILABLE)
23210-377-000
|
$292.80 | ||
|
Unavailable |
|||
|
#3
COUNTERSHAFT (36T) (NOT AVAILABLE)
23220-377-000
|
$302.29 | ||
|
Unavailable |
|||
|
#3
COUNTERSHAFT (36T) (NOT AVAILABLE)
23220-377-010
|
$146.94 | ||
|
Unavailable |
|||
|
#4
GEAR, COUNTERSHAFT LOW (41T) (NOT AVAILABLE)
23420-377-000
|
$263.10 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT SECOND (20T)
23431-369-000
|
$71.85 | ||
|
Unavailable |
|||
|
#6
GEAR, MAINSHAFT THIRD & FOURTH (24T 27T) (NOT AVAILABLE)
23451-369-000
|
$189.52 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE)
23461-377-010
|
$130.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, COUNTERSHAFT FOURTH (30T) (NOT AVAILABLE)
23481-377-010
|
$104.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, SPLINE (28MM)
23485-369-000
|
$33.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT FIFTH (29T)
23491-369-000
|
$174.53 | ||
|
Unavailable |
|||
|
#11
GEAR, COUNTERSHAFT FIFTH (28T) (NOT AVAILABLE)
23501-377-010
|
$272.35 | ||
|
Unavailable |
|||
|
#12
GEAR, MAINSHAFT TOP (30T) (NOT AVAILABLE)
23511-377-000
|
$179.06 | ||
|
Unavailable |
|||
|
#13
GEAR, COUNTERSHAFT TOP (26T) (NOT AVAILABLE)
23521-377-010
|
$272.35 | ||
|
Unavailable |
|||
|
#14
PLATE, DRIVE SPROCKET FIXING
23811-292-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVE (17T)
23801-333-000
|
$61.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, GEARSHIFT FORK GUIDE
24261-283-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, THRUST (25MM) (NOT AVAILABLE)
90451-300-000
|
$4.46 | ||
|
Unavailable |
|||
|
#18
WASHER B, THRUST (25MM)
90461-286-000
|
$3.12 | ||
|
Unavailable |
|||
|
#19
WASHER, LOCK (25MM)
90462-323-000
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (20MM)
90454-428-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (20X1.00)
90554-700-000
Superseded by 90454-428-000
|
$3.04 | ||
|
Unavailable |
|||
|
#21
CIRCLIP (OUTER) (25MM)
90602-259-010
|
$7.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BEARING, BALL (5205HS) (TOYO) (NOT AVAILABLE)
91002-286-008
|
$43.26 | ||
|
Unavailable |
|||
|
#23
BEARING, NEEDLE (20MM) (TOYO) (NOT AVAILABLE)
91022-377-008
|
$29.92 | ||
|
Unavailable |
|||
|
#24
OIL SEAL (34X52X13.5X15.5)
91205-333-015
|
$30.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL (34X9)
91207-333-000
|
$6.11 | ||
|
Unavailable |
|||
|
#25
OIL SEAL (34X9)
91207-333-010
Superseded by 91207-333-000
|
$6.11 | ||
|
Unavailable |
|||
|
#26
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#26
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
