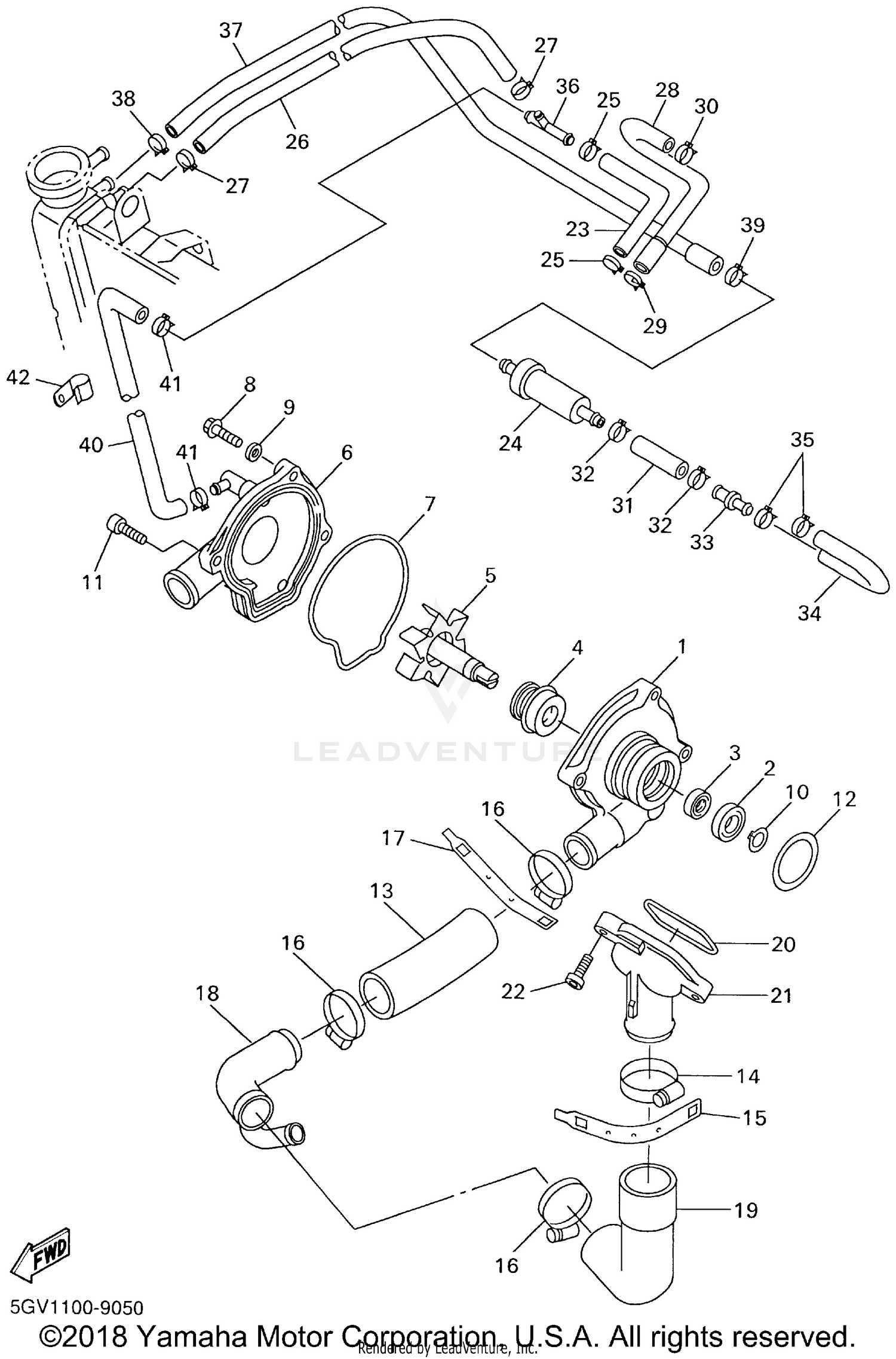

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, WATER PUMP
5EB-12421-00-00
Superseded by 5VX-12421-00-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (B6001)
93306-00105-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
OIL SEAL
93101-12173-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SEAL, MECHANICAL
11H-12438-00-00
Superseded by 11H-12438-10-00
|
$68.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
IMPELLER SHAFT ASSY
5EB-12450-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, HOUSING
5EB-12422-00-00
Superseded by 5VX-12422-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
5EB-12439-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (SMALL HEAD)
95024-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CIRCLIP
99009-12400-00
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90317-06040-00
|
|||
|
Unavailable |
|||
|
#12
O-RING
93210-33133-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
HOSE 4
4NK-12579-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE CLAMP ASSY
90450-38040-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER 1
5GV-1246A-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER 2
5GV-1246E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT, HOSE 1
5EB-12581-00-00
Superseded by 20S-12581-01-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE 2
5EB-12577-00-00
Superseded by 5EB-12577-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-47675-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
JOINT 1
5EB-12469-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
HOSE 1
5EB-1243A-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#24
THERMOSTAT ASSY
4SV-1240G-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-10135-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE 2
5EB-1243E-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#27
CLIP
90467-10135-00
|
$9.49 | ||
|
Unavailable |
|||
|
#28
HOSE,3
5EB-1243F-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#29
CLIP
90467-10135-00
|
$9.49 | ||
|
Unavailable |
|||
|
#30
CLIP
90467-09120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE, 3
90445-121J1-00
Superseded by 84M-1243F-00-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-11044-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
JOINT, HOSE 1
4TV-12581-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE 7
5EB-12551-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
90467-09120-00
|
$8.49 | ||
|
Unavailable |
|||
|
#36
WAY 3
90413-07023-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOSE 8
5EB-12552-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#38
CLIP
90467-10135-00
|
$9.49 | ||
|
Unavailable |
|||
|
#39
CLIP
90467-11044-00
|
$9.49 | ||
|
Unavailable |
|||
|
#40
HOSE, 4
5EB-1244G-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#41
CLIP
90467-10135-00
|
$9.49 | ||
|
Unavailable |
|||
|
#42
CLAMP
90465-08395-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
