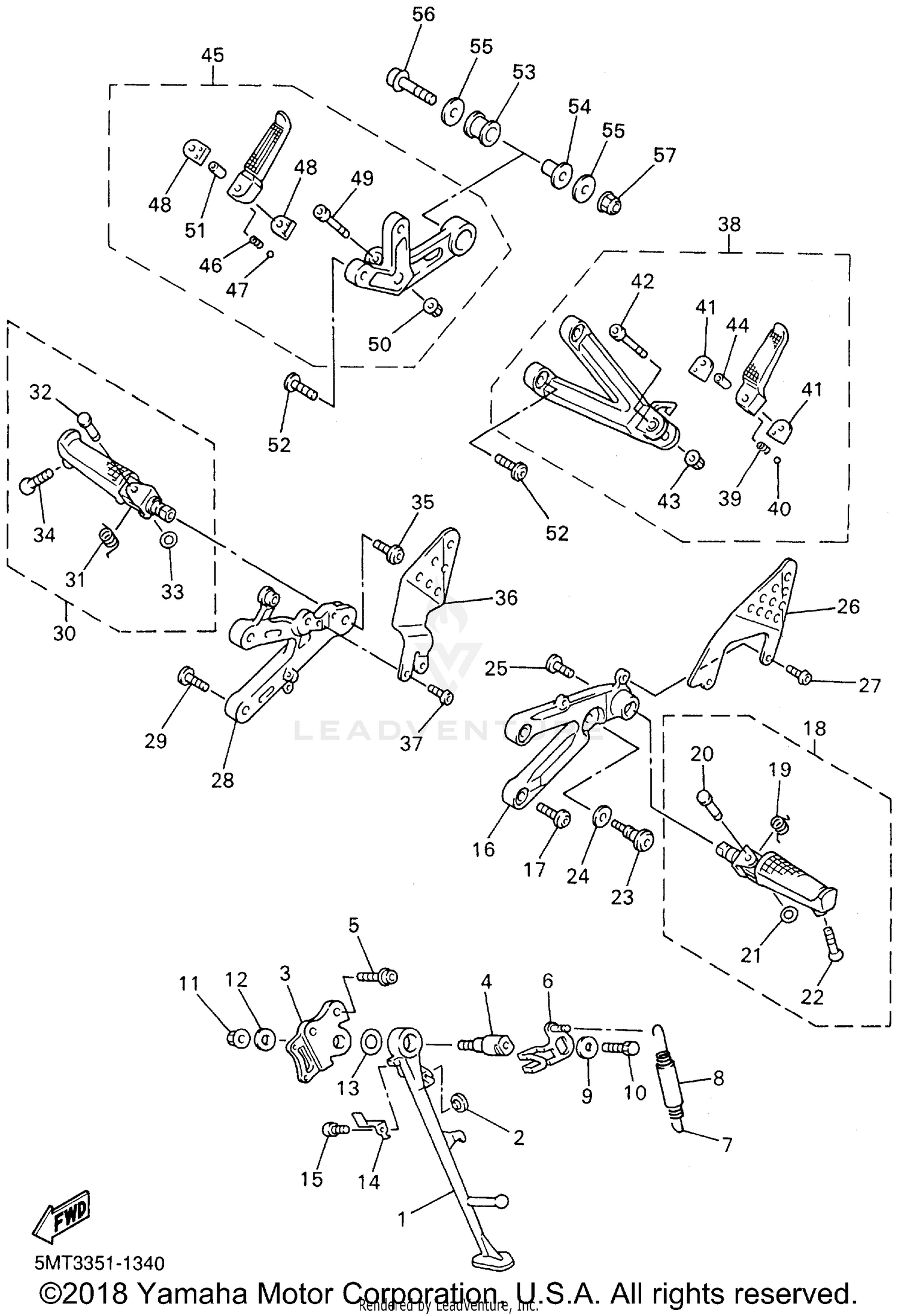

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
5EB-27311-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STOPPER, MAIN STAND
128-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, SIDE STAND
5JJ-27321-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, SIDE STAND
4NX-27351-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET
90109-105G7-00
Superseded by 90110-10012-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOOK, SIDE STAND
5GV-27352-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#7
SPRING, TENSION
90506-18003-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE (L60)
90445-19002-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-081R9-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT
97017-08020-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-101J1-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-146F9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
LINK, SIDE STAND
5JJ-27315-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90110-06226-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET 2
5EB-27442-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90109-085G6-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
FRONT FOOTREST ASSY
5MT-27410-00-00
Superseded by 5MT-27410-01-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, TORSION
90508-183B9-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN
90243-08029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-06042-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90109-08018-00
Superseded by 90109-08177-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
4BP-27434-01-00
Superseded by 4BP-27434-11-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-08326-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT,HEX. SOCKET BUT
90109-103A9-00
Superseded by 90111-10017-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE 1
5EB-27445-01-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, BUTTON HEAD
92014-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET 3
5EB-27443-00-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90109-085G6-00
|
$3.50 | ||
|
Unavailable |
|||
|
#30
FRONT FOOTREST ASSY
5MT-27420-00-00
Superseded by 5MT-27420-01-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, TORSION
90508-184B0-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN
90243-08029-00
|
$9.49 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
90201-06042-00
|
$10.49 | ||
|
Unavailable |
|||
|
#34
BOLT
90109-08018-00
Superseded by 90109-08177-00
|
$11.49 | ||
|
Unavailable |
|||
|
#35
BOLT,HEX. SOCKET BUT
90109-103A9-00
Superseded by 90111-10017-00
|
$10.49 | ||
|
Unavailable |
|||
|
#36
PLATE 2
5EB-27446-01-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, BUTTON HEAD
92014-06012-00
|
$3.55 | ||
|
Unavailable |
|||
|
#38
REAR FOOTREST ASSY 1
5EB-27430-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING, COMPRESSION
90501-12743-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BALL
93501-04011-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
WASHER, SPECIAL
1HX-27437-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, HEXAGON SOCKET HEAD
91314-06045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, U FLANGE
95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
COLLAR
90387-064H8-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
REAR FOOTREST ASSY 2
5EB-27440-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
SPRING, COMPRESSION
90501-12743-00
|
$5.49 | ||
|
Unavailable |
|||
|
#47
BALL
93501-04011-00
|
$9.49 | ||
|
Unavailable |
|||
|
#48
WASHER, SPECIAL
1HX-27437-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#49
BOLT, HEXAGON SOCKET HEAD
91314-06045-00
|
$9.49 | ||
|
Unavailable |
|||
|
#50
NUT, U FLANGE
95604-06200-00
|
$2.95 | ||
|
Unavailable |
|||
|
#51
COLLAR
90387-064H8-00
|
$9.49 | ||
|
Unavailable |
|||
|
#52
BOLT
90109-085G6-00
|
$3.50 | ||
|
Unavailable |
|||
|
#53
DAMPER, FOOTREST 2
36Y-27424-00-00
Superseded by 36Y-27424-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
COLLAR
90387-10636-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
WASHER, PLATE
90201-10669-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, WASHER BASED
95817-10045-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
Unavailable |
|||
