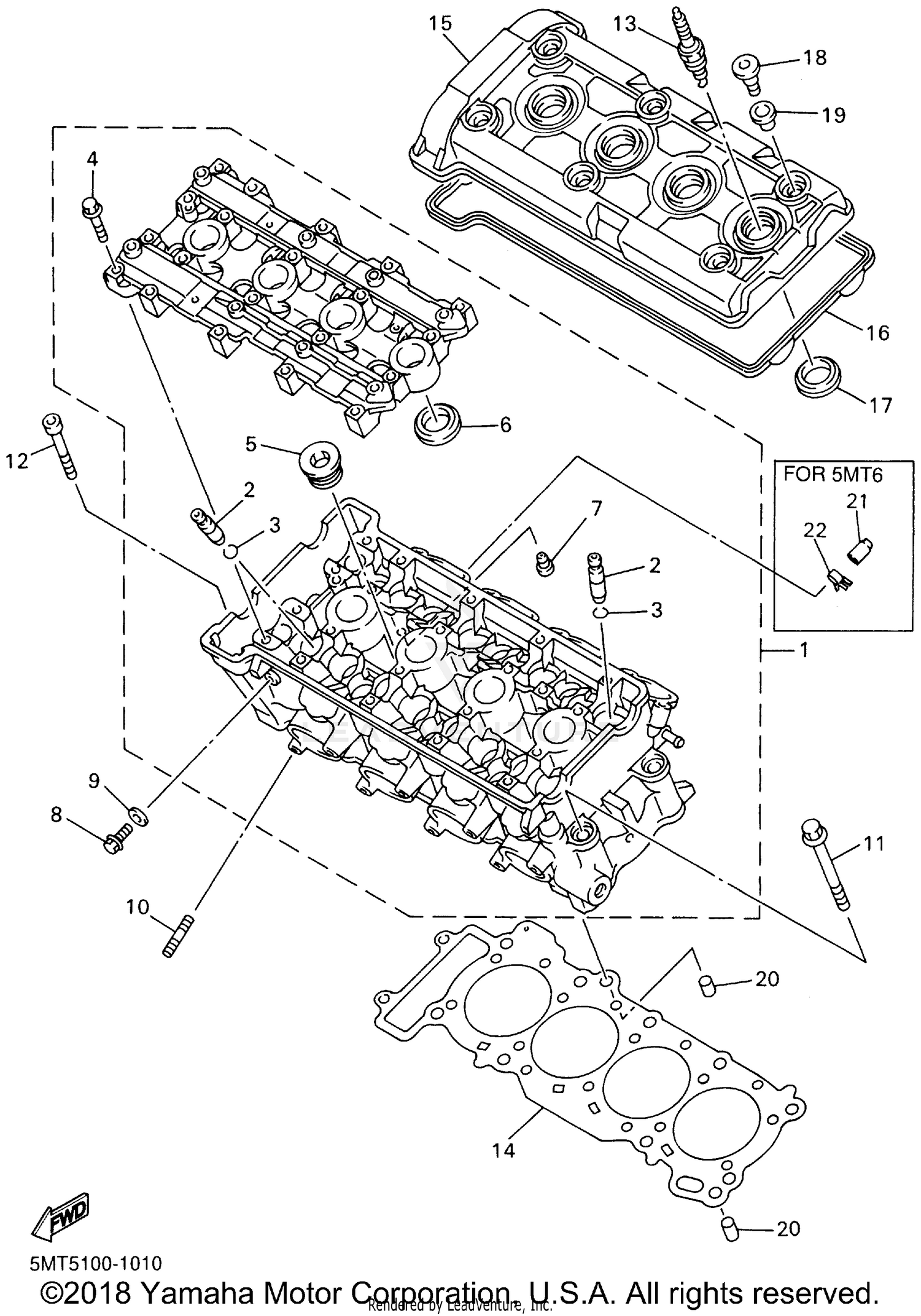

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
5MT-11101-00-00
|
$1,369.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
CYLINDER HEAD ASSY
5GV-11101-10-00
|
$1,345.99 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE 1
5EB-11133-10-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-10153-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-067A6-00
Superseded by 90105-06027-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, STRAIGHT SCREW
90340-27001-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
5EB-11195-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NOZZLE 1
11H-15138-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-08012-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-08087-00
|
$3.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, STUD
95617-08625-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WITH WASHER
90119-10003-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91317-06045-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CR10EK NGK SPLUG 1
NGK-CR10E-K0-00
Superseded by CR1-0EK00-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, CYLINDER HEAD 1
5EB-11181-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, CYLINDER HEAD 1
5EB-11191-00-00
|
$197.99 | ||
|
Unavailable |
|||
|
#16
GASKET, HEAD COVER 1
5EB-11193-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
5EB-11195-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
BOLT
90109-066F0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
RUBBER, MOUNT 1
4KG-1111G-00-00
Superseded by 5EA-1111G-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PLUG, BLIND
16G-13569-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CLIP, SCISSOR
90467-11028-00
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
