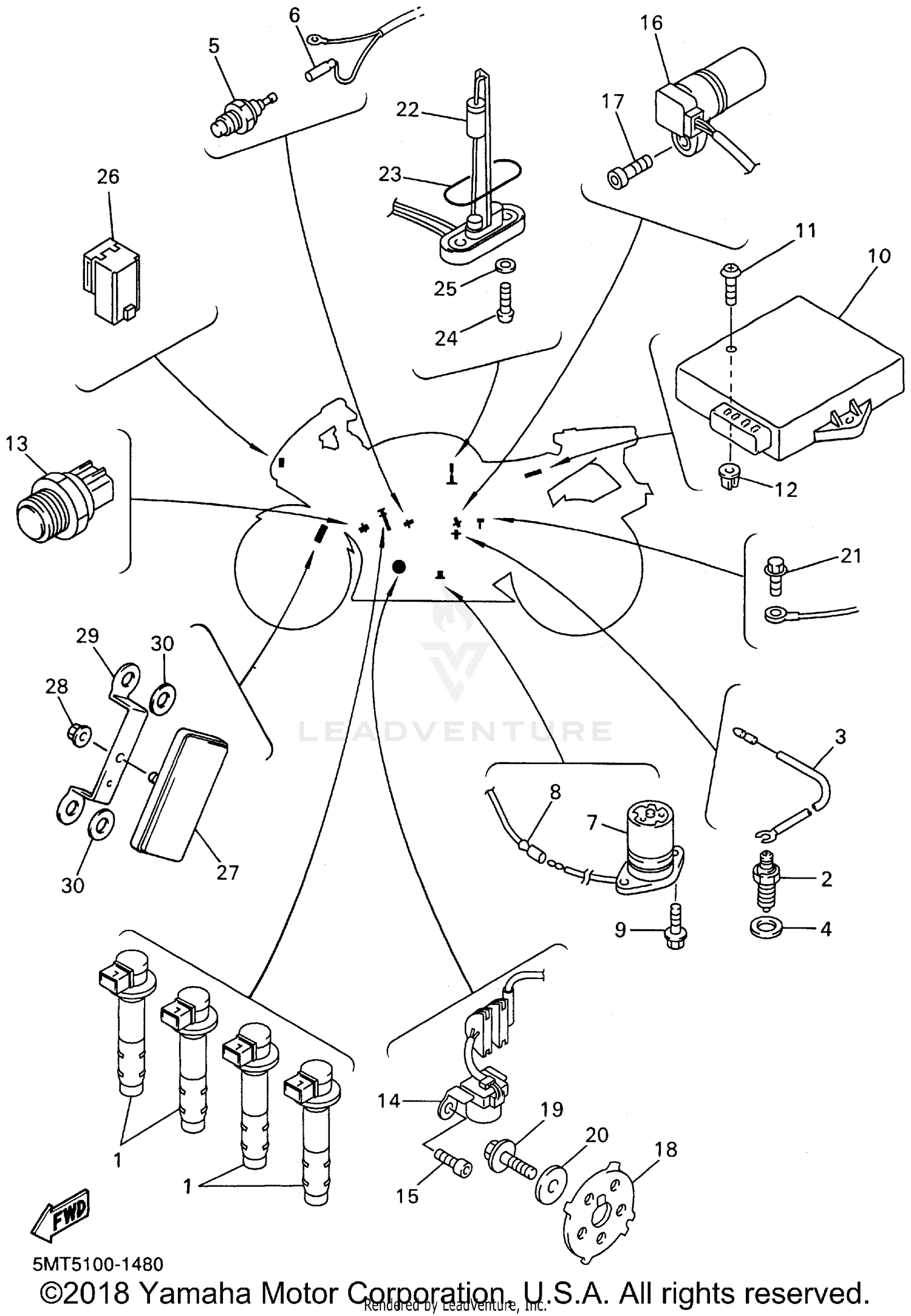

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSY
5EB-82310-00-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WIRE, LEAD
5MT-82541-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
THERMO UNIT
11H-83591-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE, LEAD
5EB-82541-21-00
|
$14.49 | ||
|
Unavailable |
|||
|
#7
OIL LEVEL GAUGE ASSY
5EB-85720-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WIRE, SUB LEAD
5EB-82509-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95027-06014-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
C.D.I. UNIT ASSY
5MT-85540-40-00
|
$694.61 | ||
|
Available to order. Add to View Price |
|||
|
#10
C.D.I. UNIT ASSY
5MT-85540-30-00
Superseded by 5MT-85540-10-00
|
$898.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, TAPPING
97707-60020-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
90338-08226-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
THERMO SWITCH ASSY
5EB-82560-00-00
Superseded by 5EB-82560-01-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PICK-UP ASSY
5MT-81670-00-00
Superseded by 5MT-81670-01-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SENSOR, SPEED
5EB-83755-00-00
Superseded by 5EB-83755-02-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (4MY)
91317-06016-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
ROTOR
5GV-81673-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROTOR
5EB-81673-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-08386-00
Superseded by 90105-08113-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE
95027-06014-00
|
$0.95 | ||
|
Unavailable |
|||
|
#22
SENDER UNIT ASSY, FUEL METER
1UF-85752-03-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, SENDER UNIT
42X-85753-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, SPECIAL SHAPE
90149-06008-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
RELAY ASSY
5JJ-81950-10-00
Superseded by 5JJ-81950-11-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
REFLECTOR ASSY
11H-85110-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, FLANGE
95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET, REFLECTOR 2
5BN-85122-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-08759-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
