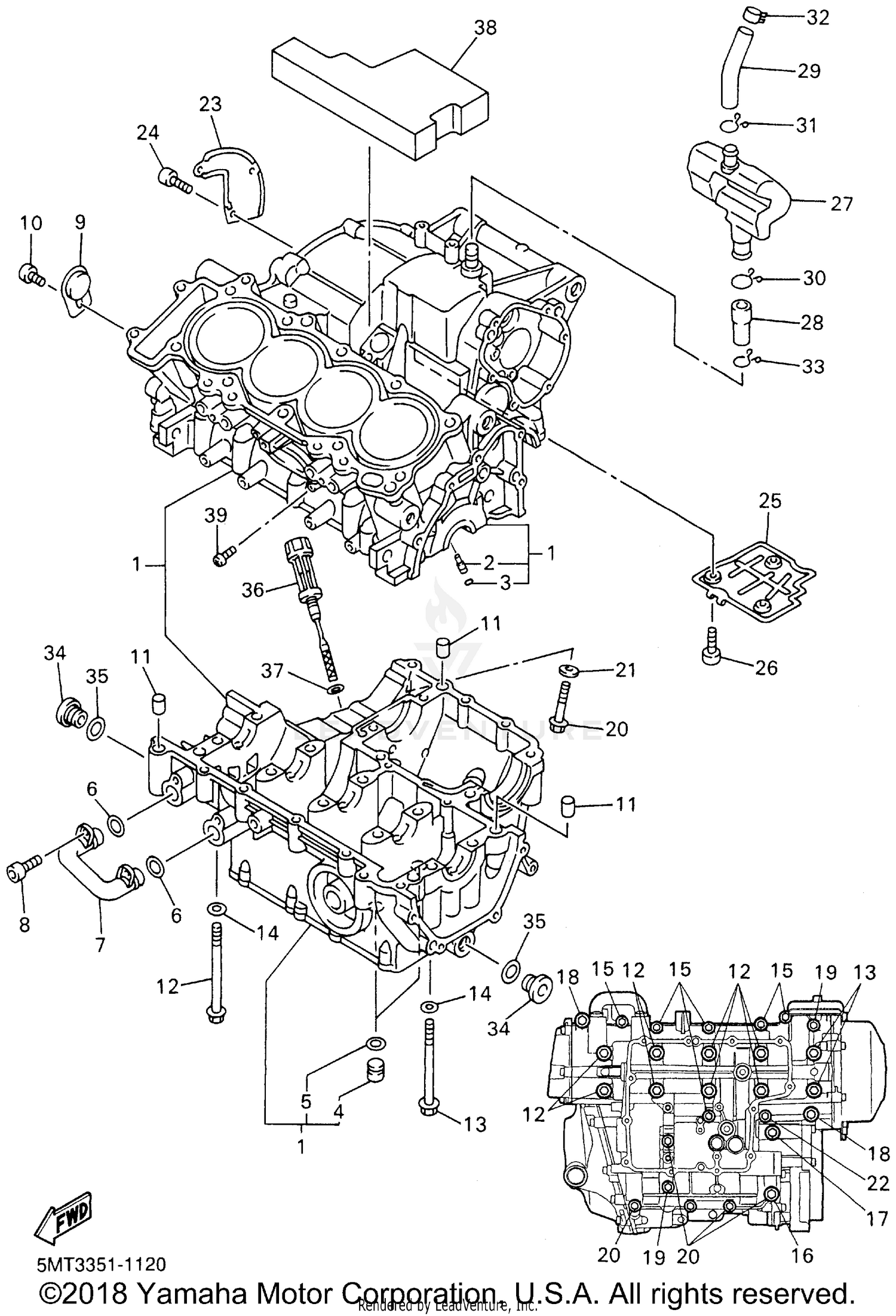

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
5MT-15100-00-00
Superseded by 5MT-15100-01-00
|
$2,588.99 | ||
|
Unavailable |
|||
|
#2
NOZZLE 3
5EB-15155-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-04092-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PLUG
90338-16262-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-12790-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
O-RING
93210-14579-00
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PIPE, OIL 2
5EB-13418-00-00
Superseded by 13S-13418-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (4MY)
90110-06091-00
Superseded by 91317-06016-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
5EB-15189-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#10
BOLT, BUTTON HEAD
92017-06014-00
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-087A0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-086A9-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-087K3-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95817-06055-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95817-08065-00
Superseded by 90105-084A1-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-08776-00
Superseded by 95814-08065-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-065G3-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95817-06065-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95817-06045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
90430-06014-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE
90105-06006-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, BREATHER
5EB-11165-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#24
SCREW
90149-06001-00
Superseded by 90149-06228-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, BREATHER 2
5EB-11145-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
90110-06226-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BREATHER
5EB-15371-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE, BREATHER 2
5EB-15393-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#29
PIPE, BREATHER
5EB-15373-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-18196-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
90467-16195-00
Superseded by 90467-15M14-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-15054-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP
90467-14015-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
PLUG
36Y-15189-00-00
Superseded by 36Y-15189-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING
93210-16325-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
PLUG, OIL LEVEL
5EB-15362-00-00
Superseded by 5EB-15362-10-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING
93210-09350-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
DAMPER, ENGINE MOUNT 1
5EB-15316-00-00
|
$3.60 | ||
|
Unavailable |
|||
|
#39
SCREW, BIND
98907-06012-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
