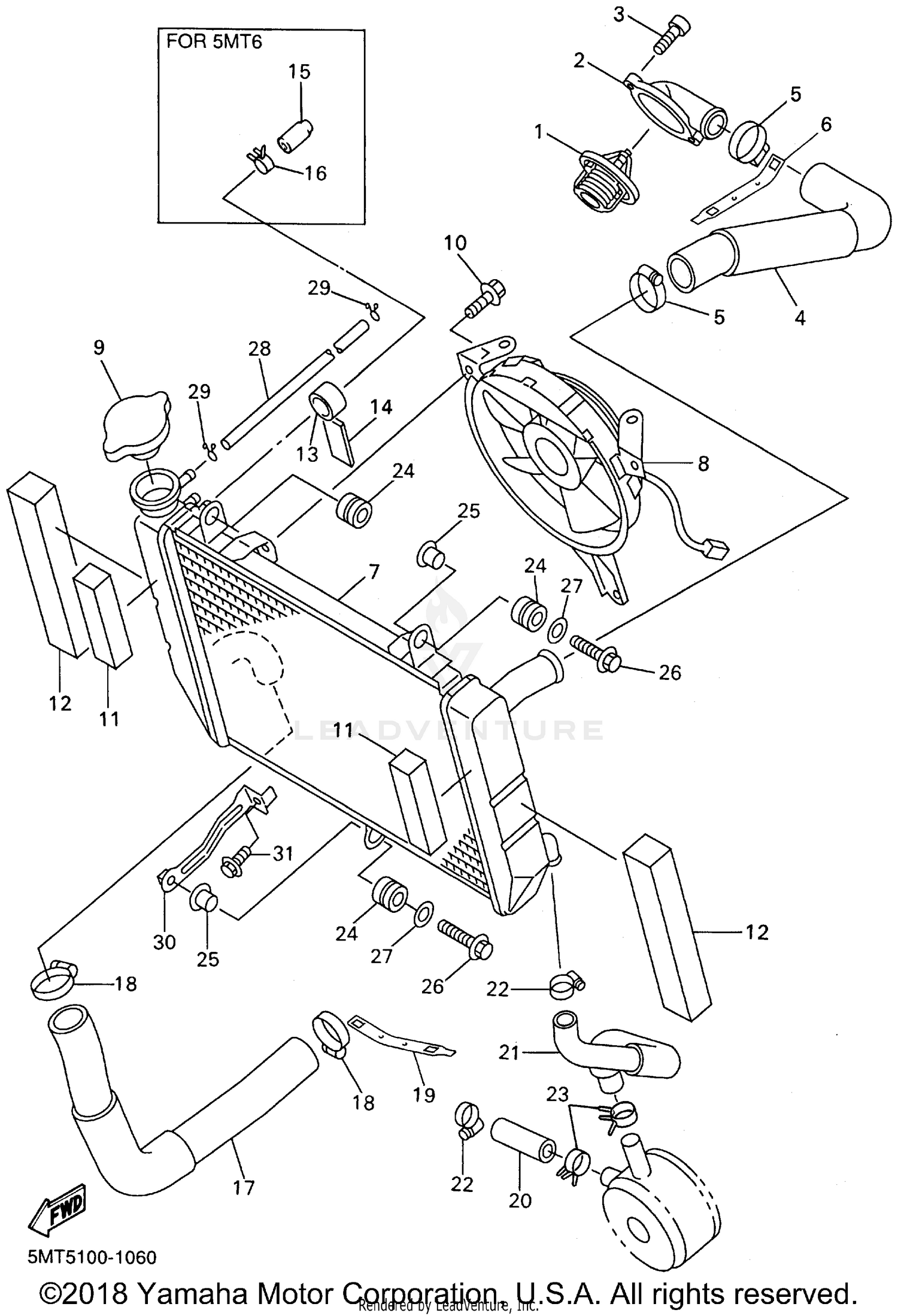

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THERMOSTAT ASSY
3GM-12410-00-00
Superseded by 3GM-12410-01-00
|
$66.99 | ||
|
Unavailable |
|||
|
#1
THERMOSTAT ASSY
5EB-12410-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, THERMOSTAT
5EB-12413-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HOSE 3
5EB-12578-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER 2
5GV-1246E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RADIATOR ASSY
5EB-12461-00-00
|
$333.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLOWER ASSY
5EB-12405-00-00
|
$368.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, RADIATOR
4JH-12462-00-00
Superseded by 5SL-12462-01-00
|
$35.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT,FLANGE
95817-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, AIR SHROUD 2
5EB-12659-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, AIR SHROUD 3
5EB-12668-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTOR
5EB-12498-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#14
COVER 1
3XV-1246A-10-00
|
$6.99 | ||
|
Unavailable |
|||
|
#15
PLUG, BLIND
16G-13569-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLIP, SCISSOR
90467-11028-00
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE 4
5EB-12579-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#19
COVER 2
5GV-1246E-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#20
HOSE 5
5EB-12588-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#21
HOSE 6
5EB-12589-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE CLAMP ASSY
90450-25037-00
Superseded by 90450-22M14-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLIP
90467-19160-00
Superseded by 90467-19051-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET
90480-15363-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
COLLAR
90387-07391-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-063J2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE (L700)
90445-087K6-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90467-07093-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRACKET 1
5EB-1244E-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE
95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
