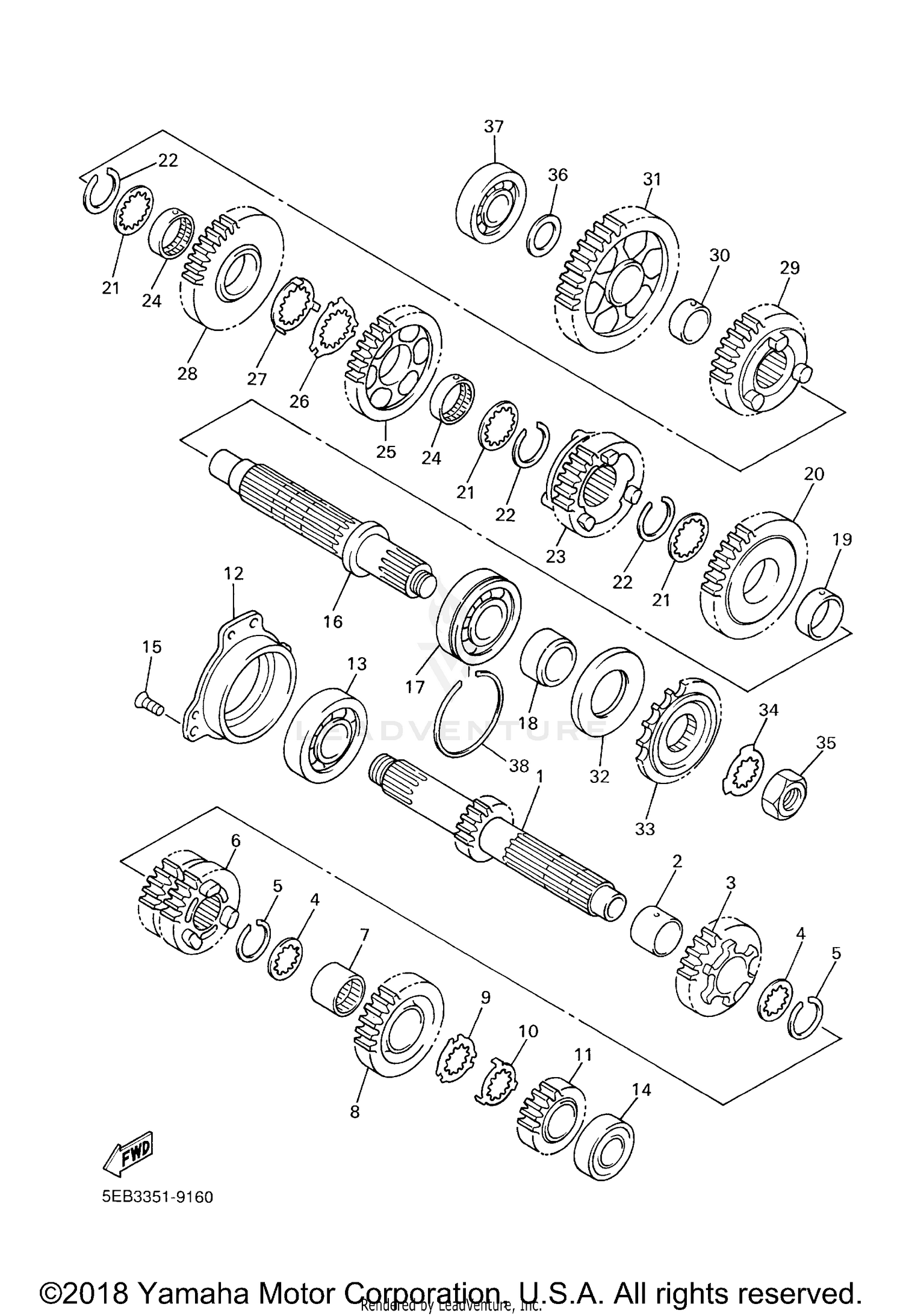

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (13T)
5EB-17411-00-00
Superseded by 5EB-17401-00-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-253M6-00
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION (21T)
5MT-17151-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-21332-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GEAR, 3RD/4TH PINION (18T/24T)
5EB-17131-00-00
|
$139.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-2513E-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 6TH PINION (24T)
5EB-17161-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
90209-22352-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
90209-21351-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, 2ND PINION (13T)
5EB-17121-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOUSING, BEARING 1
5EB-15163-01-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-30525-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20464-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, COUNTERSUNK
90149-06285-00
Superseded by 90151-06014-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
AXLE, DRIVE
5EB-17421-00-00
Superseded by 5SL-17421-00-00
|
$258.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93306-30546-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-2504A-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-2813C-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 2ND WHEEL (37T)
5EB-17221-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
90209-25342-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
93440-28062-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 6TH WHEEL (26T)
5MT-17261-00-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-2813D-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 4TH WHEEL (32T)
5EB-17241-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
90209-25349-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
90209-25350-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, 3RD WHEEL (28T)
5EB-17231-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GEAR, 5TH WHEEL (25T)
5MT-17251-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-2202V-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR, 1ST WHEEL (37T)
5EB-17211-00-00
|
$99.35 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL
93102-35423-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPROCKET, DRIVE 16T (2GH1746160
2GH-17460-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, LOCK
90215-21022-00
Superseded by 90215-21290-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
NUT, SPEC'L SHAPE
90179-18020-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-20278-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING
93306-20464-00
|
$45.99 | ||
|
Unavailable |
|||
|
#38
CIRCLIP 1
278-17424-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
