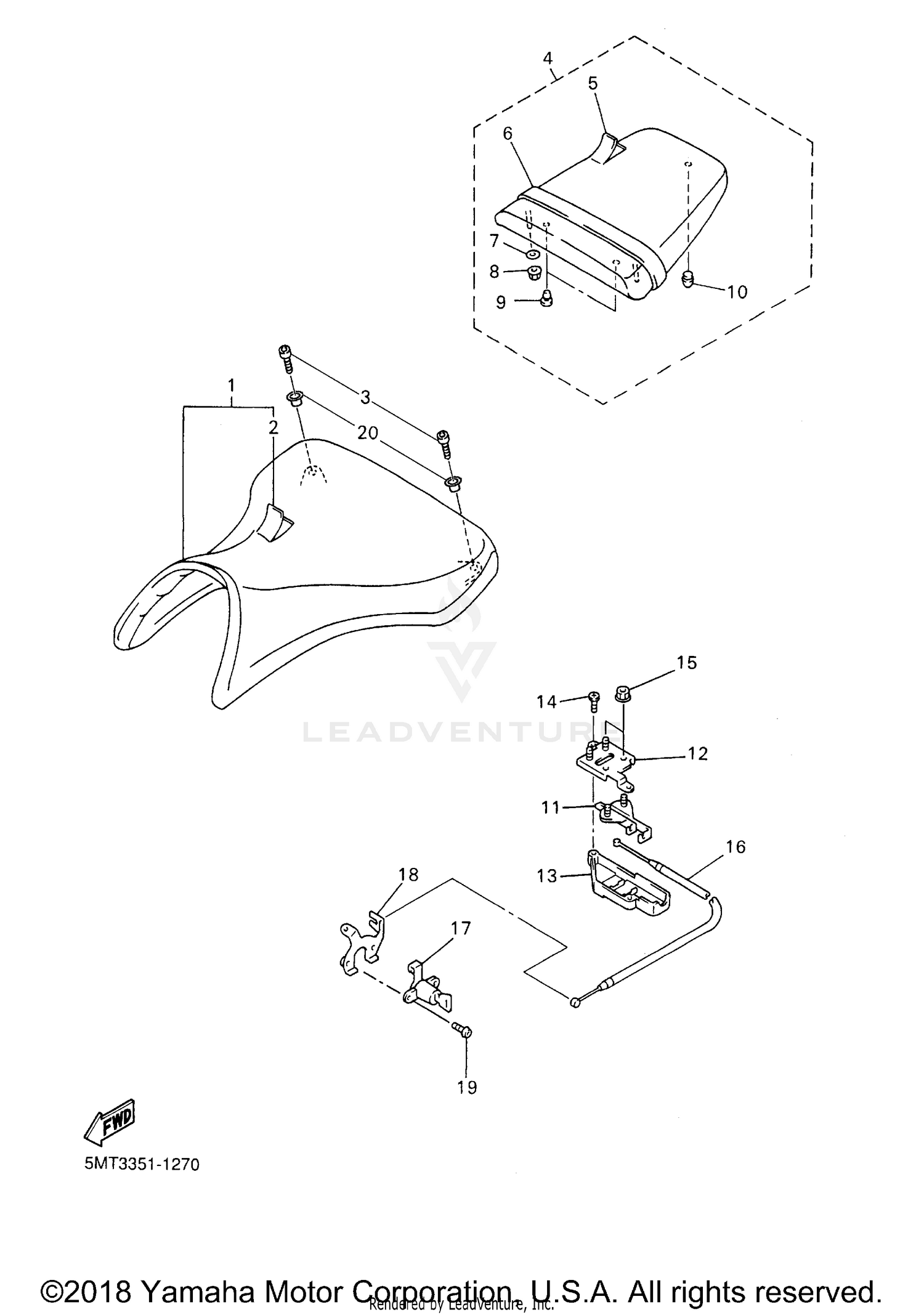

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
5EB-24710-00-00
|
$161.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SEAT
5EB-2470F-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
90110-06258-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
TANDEM SEAT ASSY
5MT-24750-02-00
|
$183.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, TANDEM SEAT
5EB-24751-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT BAND ASSY
5MT-24720-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90201-06068-00
Superseded by 90201-06M02-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
98780-06635-00
|
|||
|
Unavailable |
|||
|
#9
PLUG
90338-06081-00
|
|||
|
Unavailable |
|||
|
#10
PLUG
4G0-21639-00-00
Superseded by 90338-07018-00
|
$8.49 | ||
|
Unavailable |
|||
|
#11
SEAT LOCK ASSY
4BP-24780-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE
5JJ-24792-00-00
Superseded by 5JJ-24792-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, 2
5JJ-2475X-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
97707-40012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE
95707-06500-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CABLE, SEAT LOCK
5MT-2478E-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#17
SEAT LOCK ASSY
2TV-W2470-00-00
Superseded by 3CK-W2470-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, LOCK
4XV-2117K-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
90149-06308-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-06066-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
