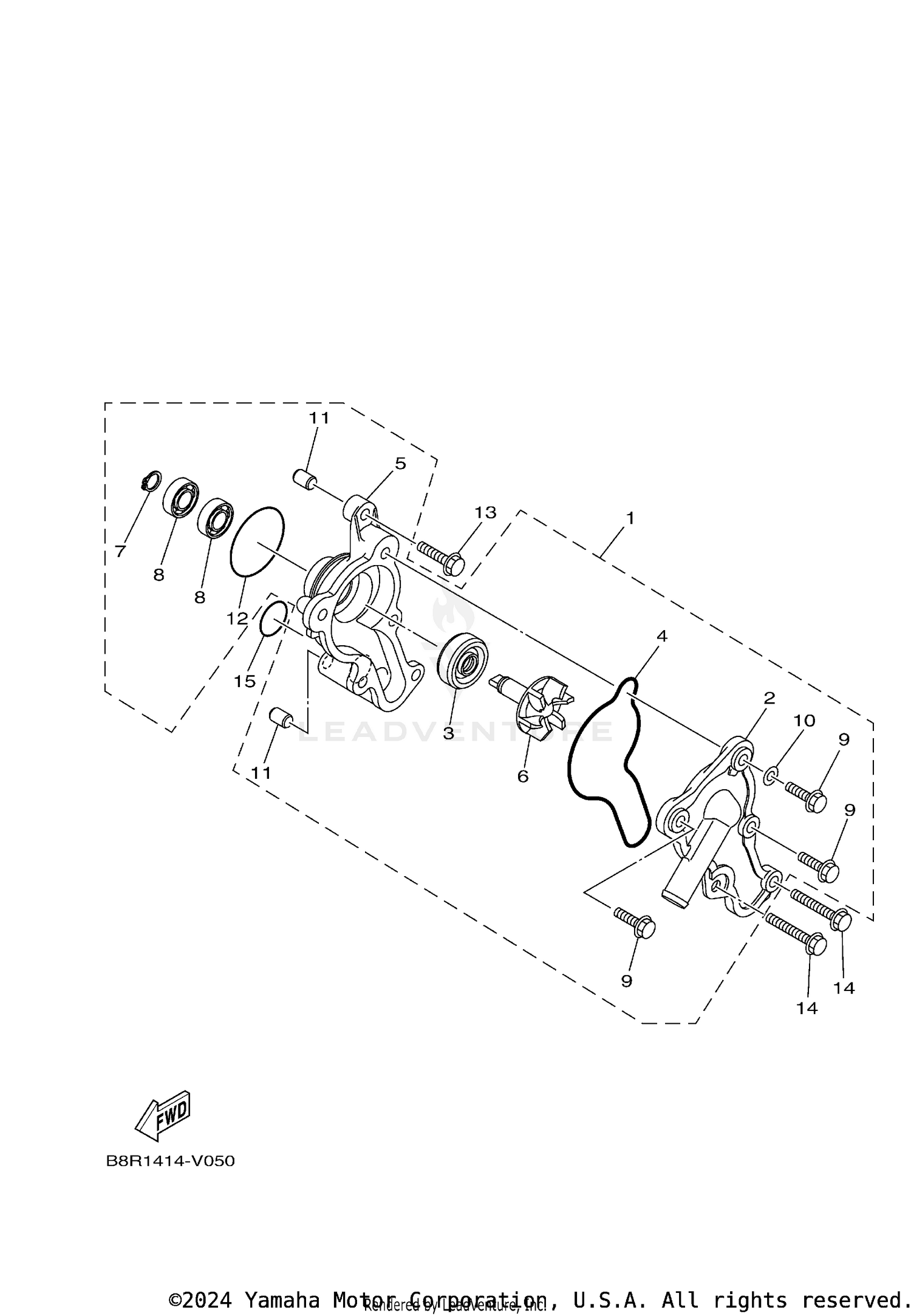

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY
B6H-E2420-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#2
. .COVER, HOUSING
B6H-E2422-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#3
. .SEAL
B6H-E2223-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#4
. .O-RING
B6H-E2439-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#5
. .COVER, CYLINDER HEAD SIDE 3
B6H-E1185-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#6
. .IMPELLER SHAFT ASSY
B6H-E2450-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#7
CIRCLIP
99009-08400-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
. .BEARING
93300-608X0-00
|
$4.00 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95027-06020-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
. .GASKET
90430-06803-00
|
$1.85 | ||
|
Unavailable |
|||
|
#11
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
. .O-RING
93210-39803-00
|
$2.35 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE DEEP RECESS
95E32-06025-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE DEEP RECESS
95E32-06045-00
|
$1.70 | ||
|
Unavailable |
|||
|
#15
O-RING
93210-19809-00
Superseded by 93210-19123-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
