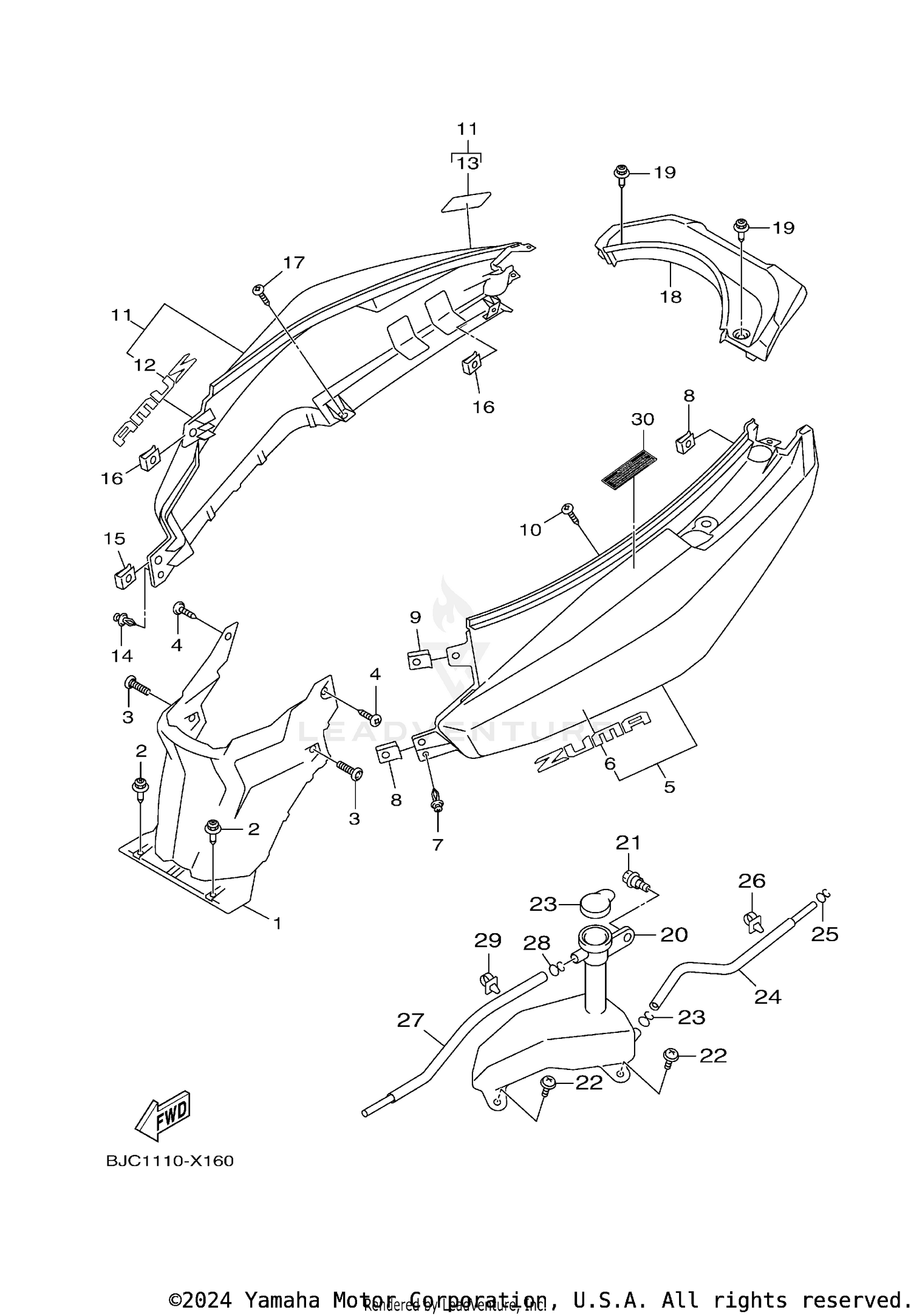

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
BBJ-F1711-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#2
RIVET
90269-06806-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEX. SOCKET BUTTON
90111-06801-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
COVER, SIDE 2
BBJ-XF172-10-P4
|
$88.99 | ||
|
Unavailable |
|||
|
#5
COVER, SIDE 2
BBJ-XF172-00-P5
|
$91.99 | ||
|
Unavailable |
|||
|
#6
. . EMBLEM 1
BJC-F1781-00-00
|
$3.95 | ||
|
Unavailable |
|||
|
#6
. . EMBLEM 1
BJC-F1781-10-00
|
$4.65 | ||
|
Unavailable |
|||
|
#7
RIVET
90269-06806-00
|
$2.20 | ||
|
Unavailable |
|||
|
#8
NUT, SPRING
90183-06813-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SPRING
90183-05827-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
90149-05804-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, SIDE 3
BBJ-XF173-10-P4
|
$91.99 | ||
|
Unavailable |
|||
|
#11
COVER, SIDE 3
BBJ-XF173-00-P5
|
$91.99 | ||
|
Unavailable |
|||
|
#12
. . EMBLEM 1
BJC-F1781-10-00
|
$4.65 | ||
|
Unavailable |
|||
|
#12
. . EMBLEM 1
BJC-F1781-00-00
|
$3.95 | ||
|
Unavailable |
|||
|
#13
. .EMBLEM, SET
2TS-F8308-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#14
RIVET
90269-06806-00
|
$2.20 | ||
|
Unavailable |
|||
|
#15
NUT, SPRING
90183-06813-00
|
$1.95 | ||
|
Unavailable |
|||
|
#16
NUT, SPRING
90183-05827-00
|
$1.65 | ||
|
Unavailable |
|||
|
#17
SCREW
90149-05804-00
|
$1.60 | ||
|
Unavailable |
|||
|
#18
COVER, SIDE 4
BBJ-F1741-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#19
RIVET
90269-06806-00
|
$2.20 | ||
|
Unavailable |
|||
|
#20
TANK, RECOVERY
B8R-F1871-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#21
BOLT
90109-06086-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CAP
5CA-F1815-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE 1
B8R-F247A-00-00
|
$4.30 | ||
|
Unavailable |
|||
|
#25
CLIP
90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CLAMP
90464-10800-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE 2
B8R-F247B-00-00
|
$2.25 | ||
|
Unavailable |
|||
|
#28
CLIP, SCISSOR
90467-08003-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CLAMP
90464-10800-00
|
$2.35 | ||
|
Unavailable |
|||
|
#30
LABEL, CAUTION
BJC-F118K-00-00
|
$2.35 | ||
|
Unavailable |
|||
